2-4 Servo Disassemble #2
REMOVAL PROCEDURE

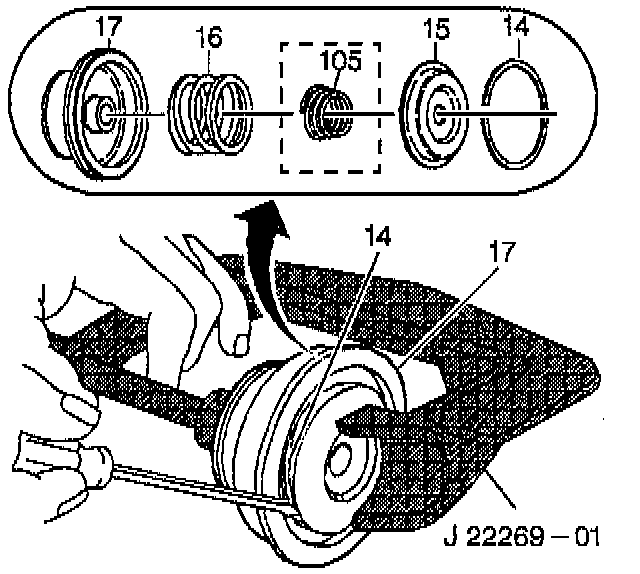

1. Use a piston compressor to compress the second apply piston.
2. Remove the second apply piston retaining ring.
3. Remove the servo cushion spring retainer and the servo cushion spring.
REMOVAL PROCEDURE
1. Use a piston compressor to compress the second apply piston.
2. Remove the second apply piston retaining ring.
3. Remove the servo cushion spring retainer and the servo cushion spring.
