1-2 Accumulator Disassemble






REMOVAL PROCEDURE

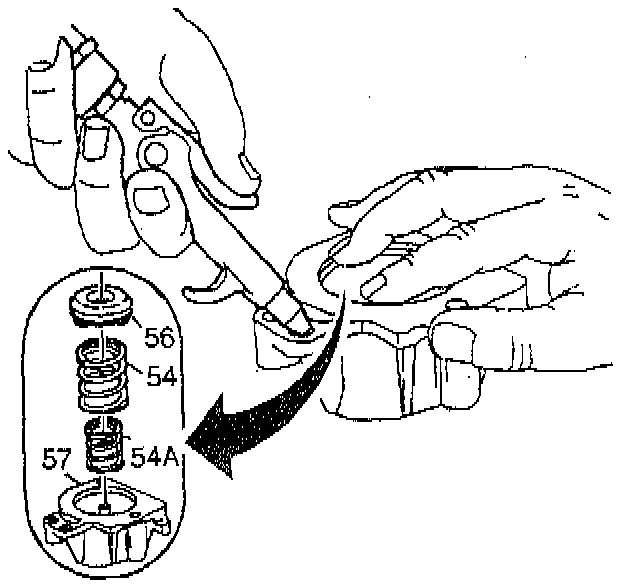

1. Blow air in the 1-2 accumulator housing to remove the 1-2 accumulator piston.
2. Remove the 1-2 inner and outer accumulator springs.
