1-2 Accumulator Assemble

INSTALLATION PROCEDURE





1. Inspect the 1-2 accumulator piston for the following defects:
^ Porosity
^ Cracks
^ Scoring
^ Nicks and Scratches
2. Install a 1-2 accumulator piston seal on the 1-2 accumulator piston.

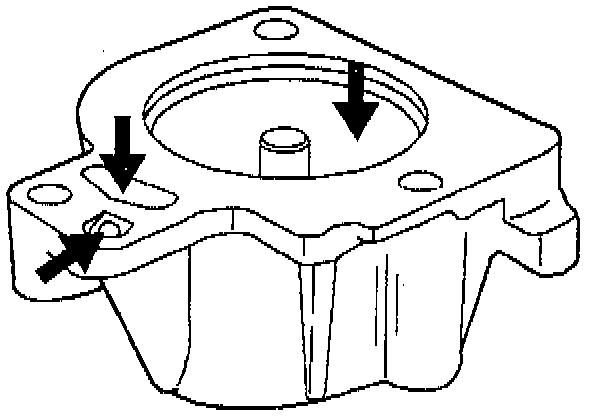

3. Inspect the 1-2 accumulator housing for the following defects:
^ Porosity
^ Cracks
^ Scoring
^ Nicks and Scratches

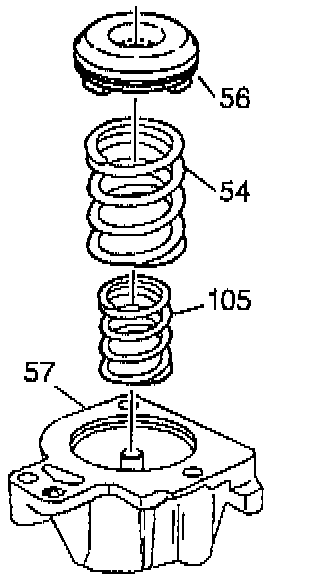

4. Install the 1-2 inner and outer accumulator springs.
5. Install the 1-2 accumulator piston.
