Case and Associated Parts

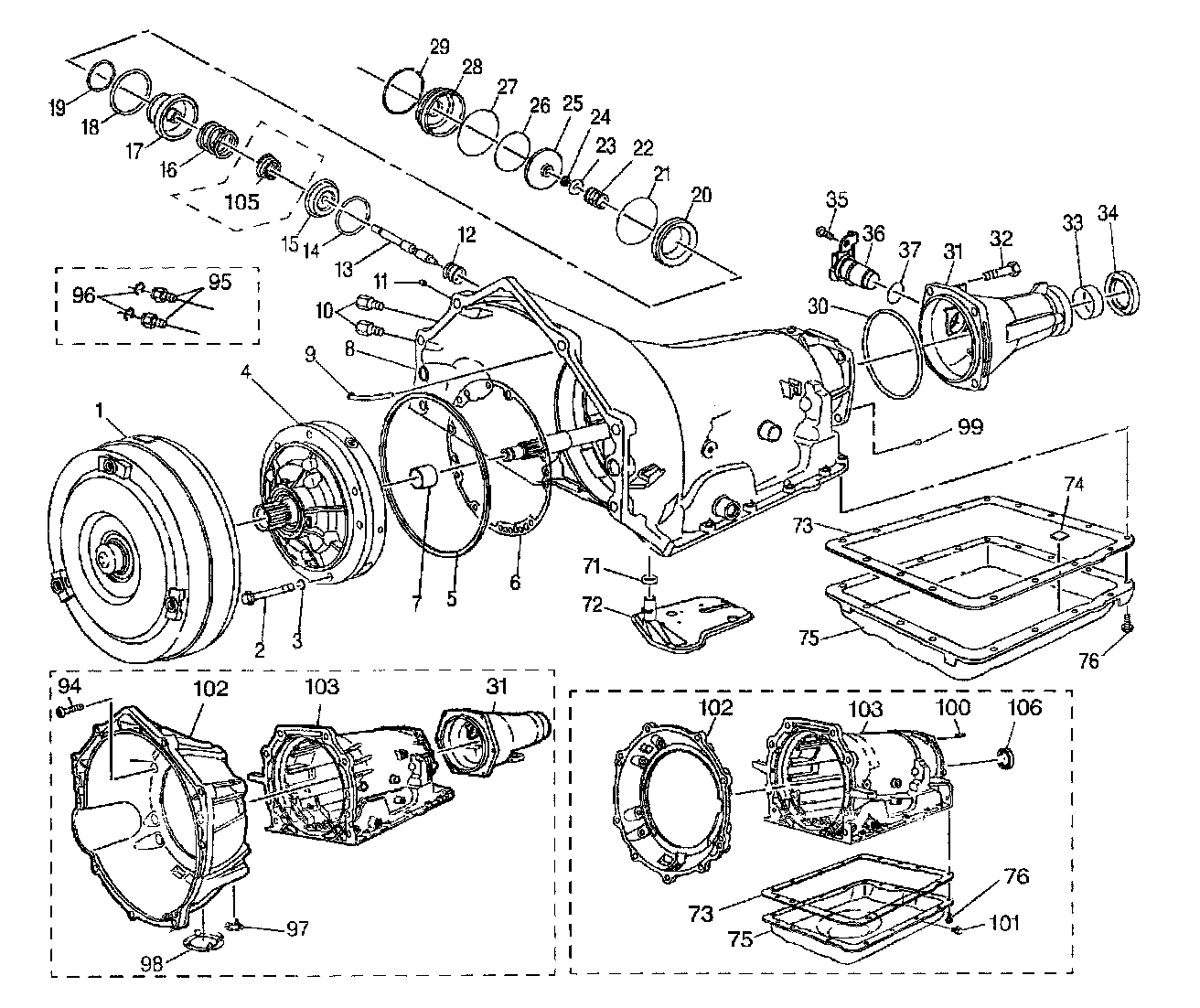

Figure 1 Case And Associated Parts:

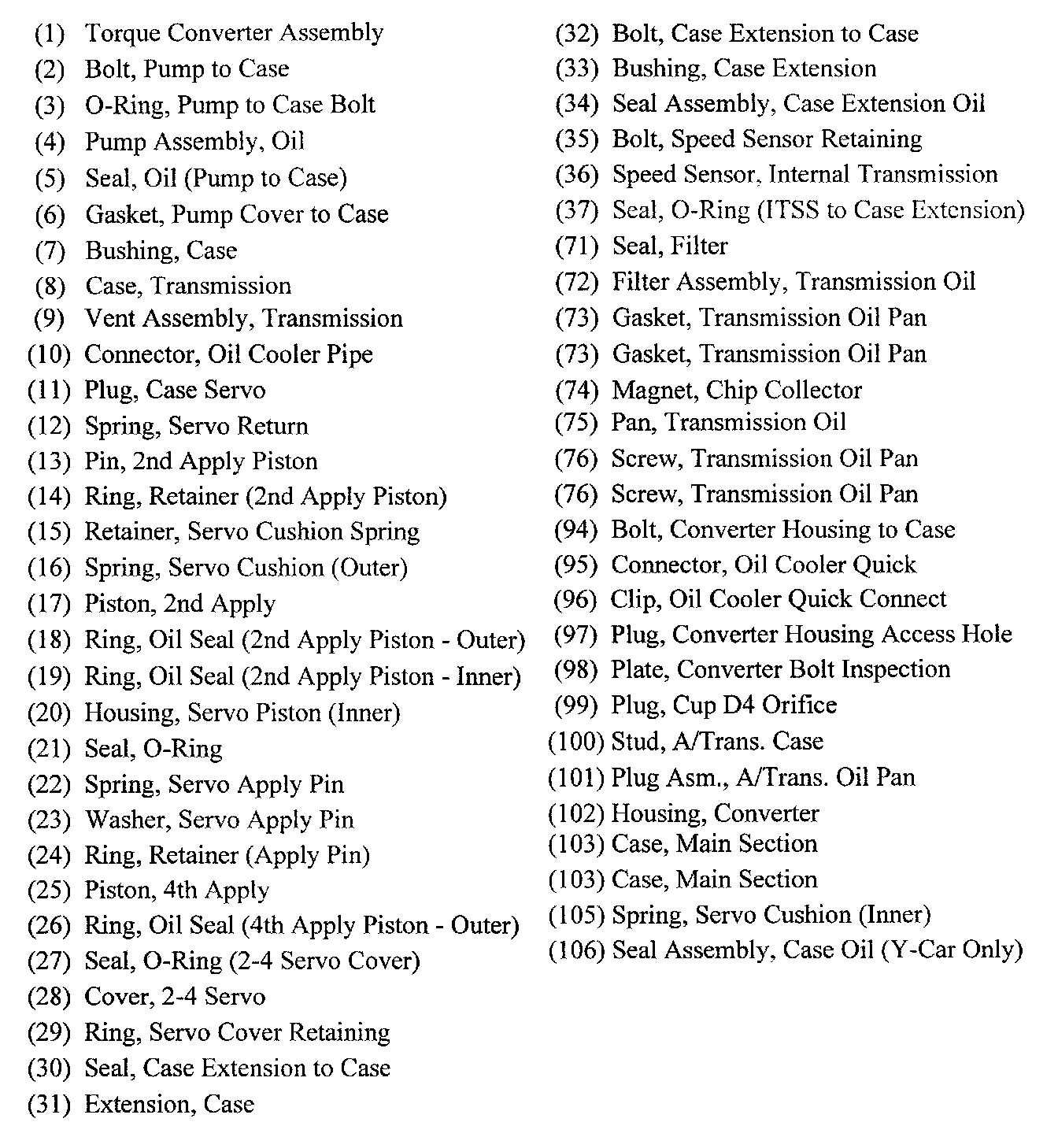

Figure 1 Key:

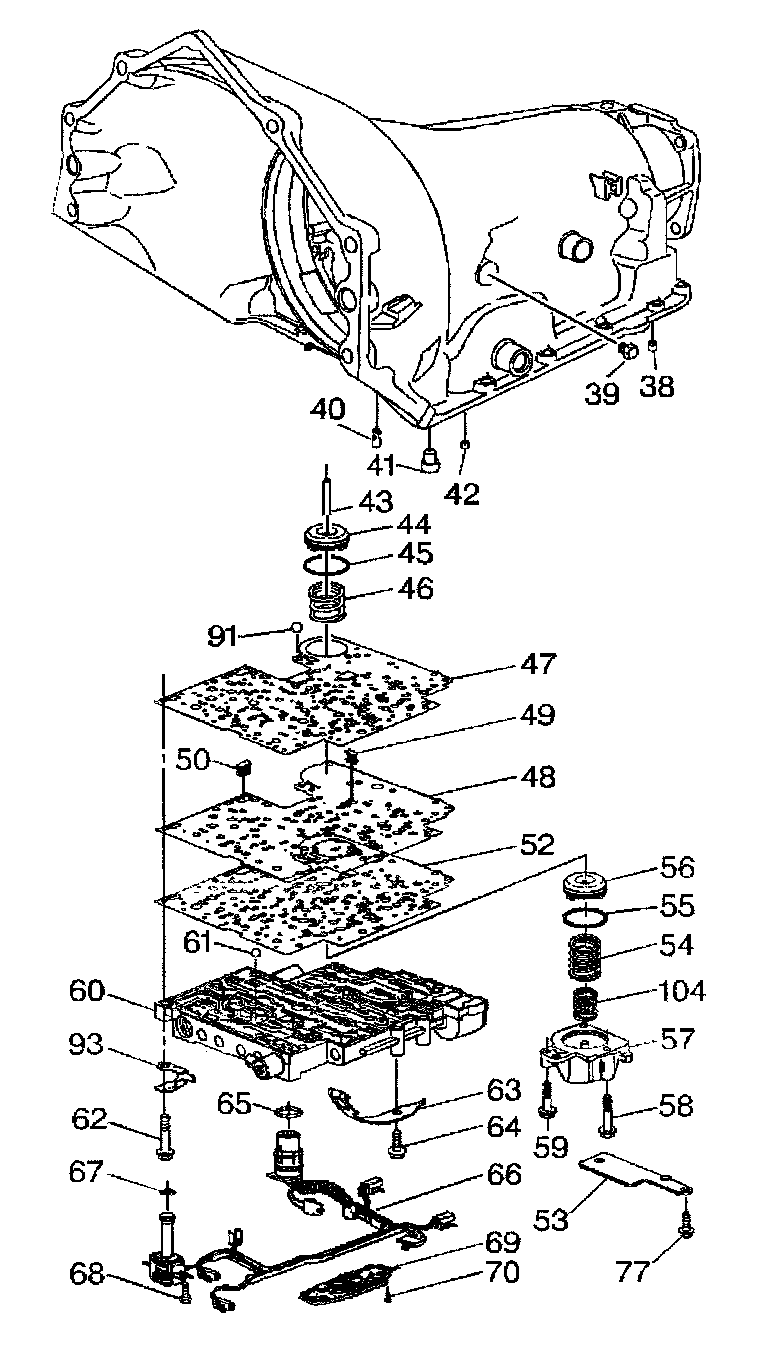

Figure 2 Case And Associated Parts:

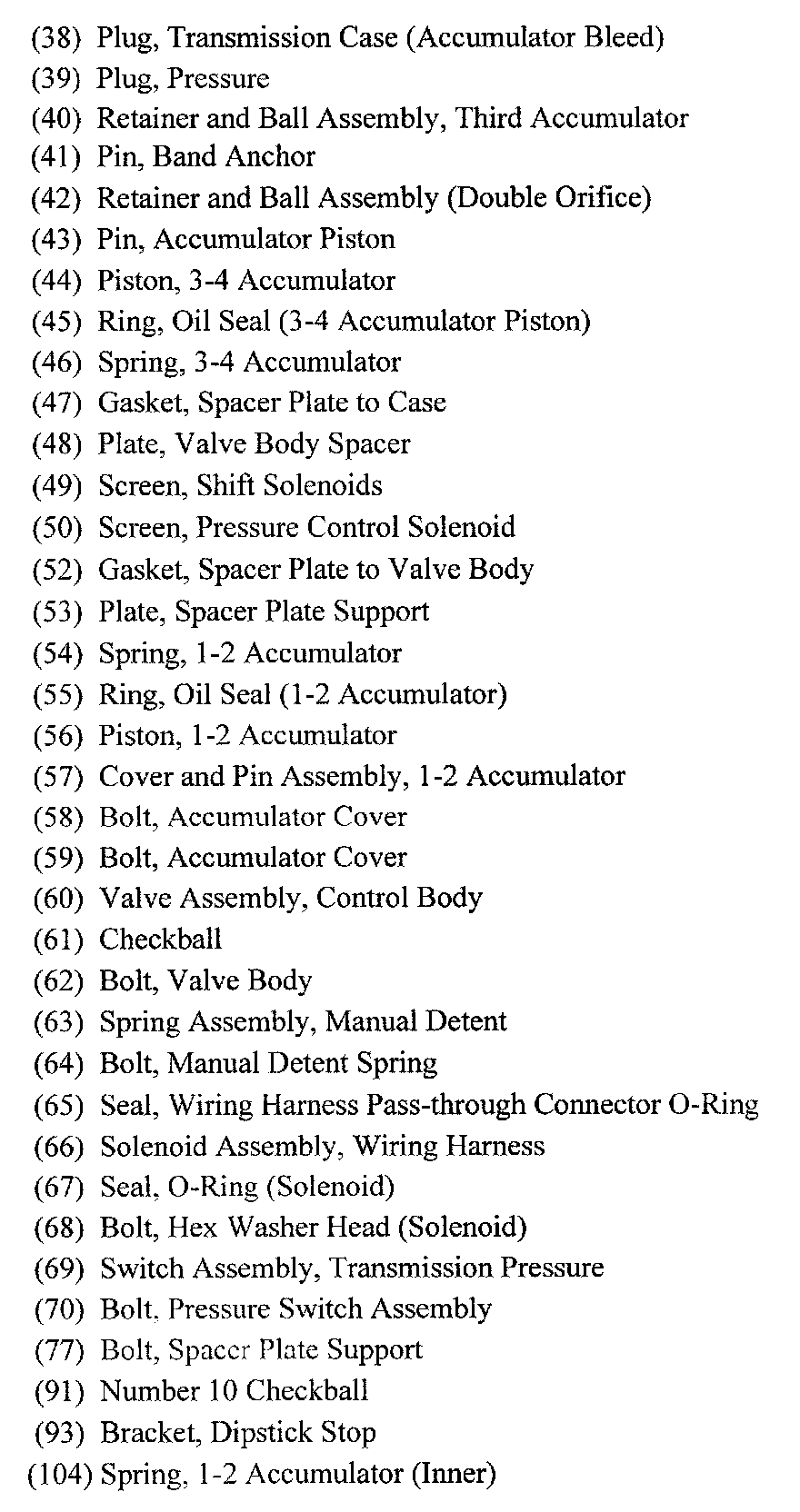

Figure 2 Key:
