Transmission General Information

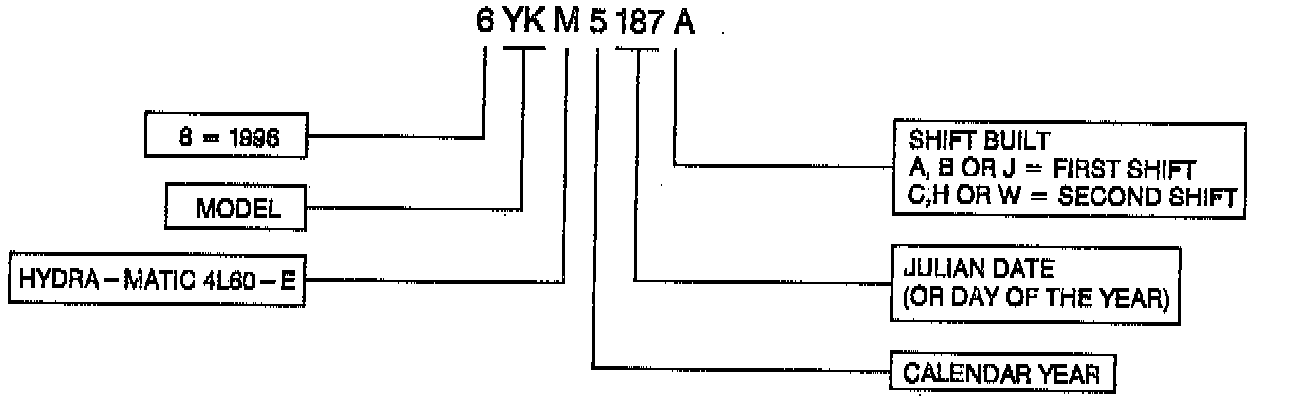

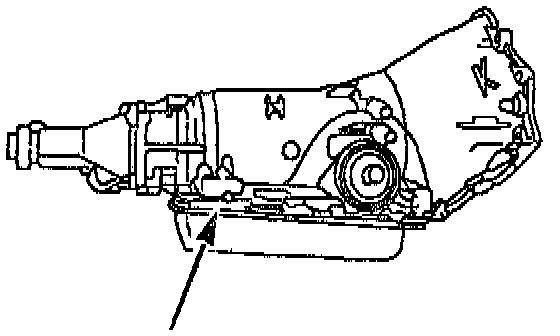

The HYDRA-MATIC 4L60-E transmission has the identification information stamped into the case pan rail.

This information helps the service technician order the correct replacement parts from the manufacturer's parts catalog.





Additional transmission identification information is provided on the Service Parts Identification label. This label shows the Regular Production Options (RPO) as well as the standard and mandatory options. This label is affixed to the inside of each vehicle at the assembly plant.
