Instrument Cluster/Speedometer - New Diagnostic Chart

File In Section: 8 - Chassis/Body Electrical

Bulletin No.: 83-81-33

Date: October 1998

SERVICE MANUAL UPDATE

Subject:

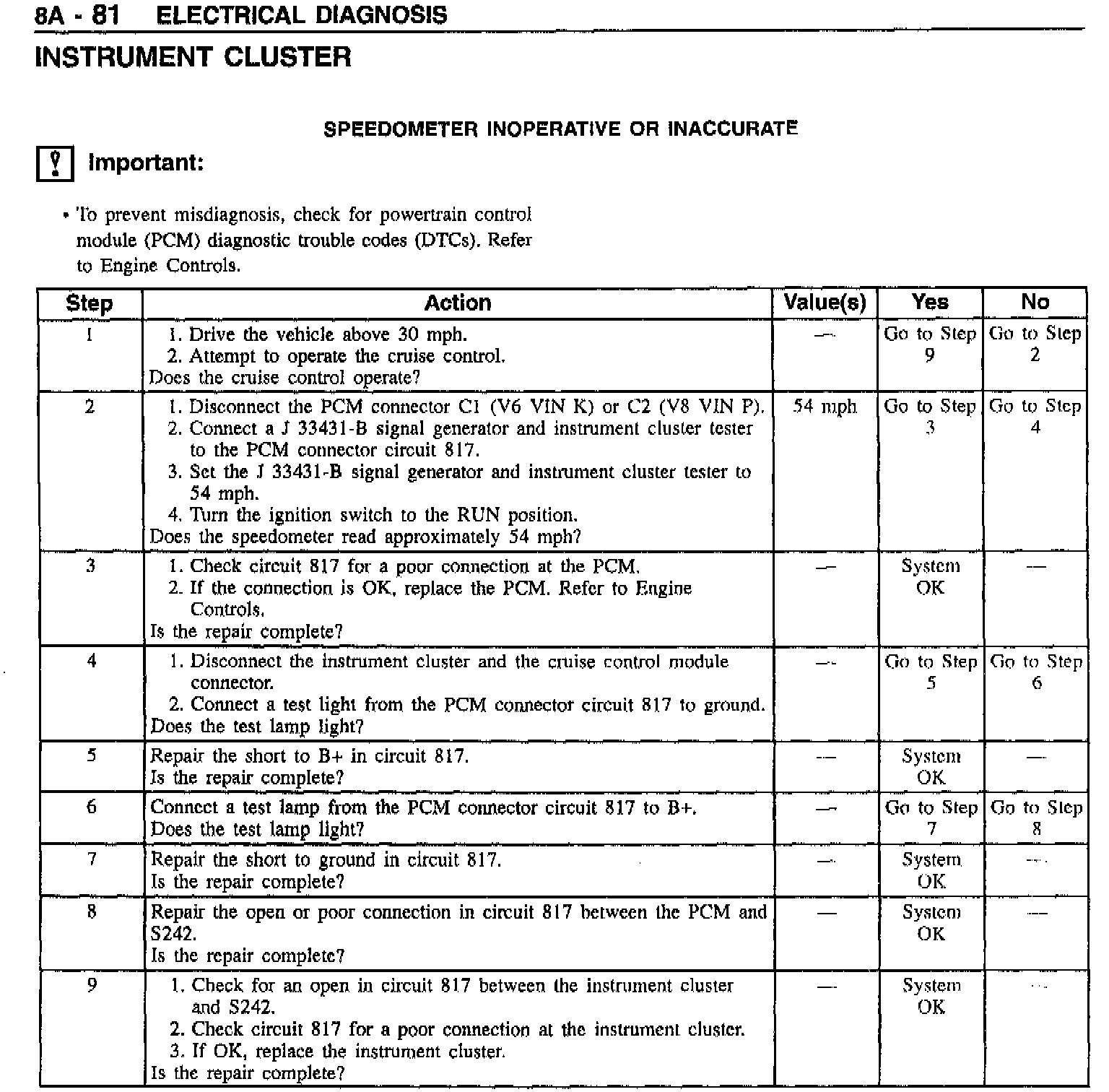

Section 8A-81 - New Diagnostic Chart for Instrument Cluster/Speedometer Inoperative or Inaccurate

Models:
1996-97 Chevrolet Camaro
1996-97 Pontiac Firebird

This bulletin is being issued to add a new diagnostic chart for Instrument Cluster/Speedometer Inoperative or Inaccurate to Section 8A-81 - Electrical Diagnosis of the Service Manual.





Please add the chart to Section 8A-81 in the appropriate Service Manual.
