Brakes - Revised ABS Diagram & Locations
File In Section: 8 - Chassis/Body ElectricalBulletin No.: 73-81-13
Date: February, 1997
SERVICE MANUAL UPDATE
Subject:
Section 8A-44 - Revised ABS Schematic and Component Location Table
Models:
1997 Chevrolet Camaro
1997 Pontiac Firebird
This bulletin is being issued to revise the ABS schematic on page 8A-44-2 and the component location table on page 8A-44-7 in the 1997 Camaro/Firebird Service Manual (GMP/97-F-2).

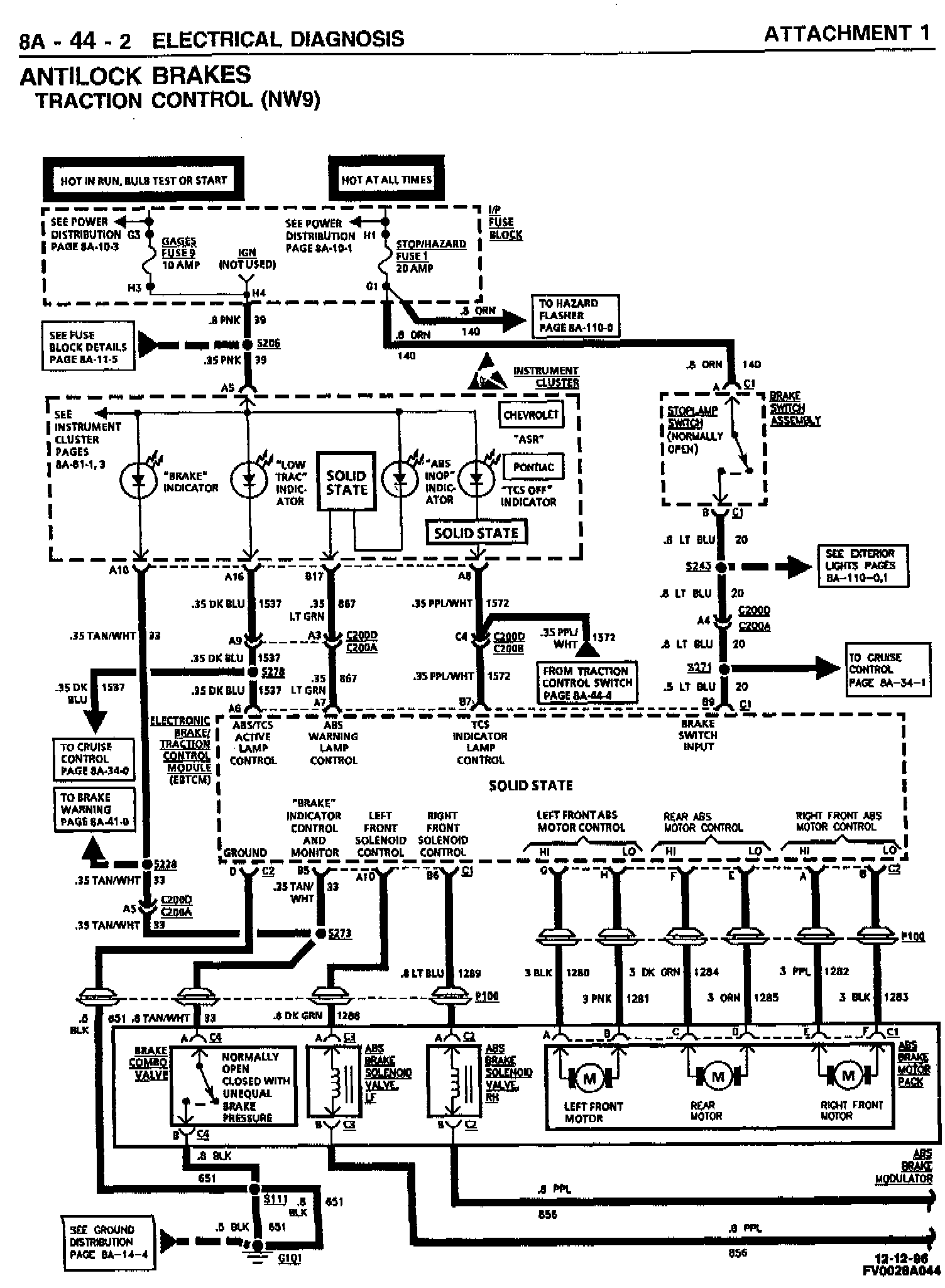

The schematic has been changed to correct the Rear and Right Front ABS Motor positions inside the ABS Brake Motor Pack and the Electronic Brake/Traction Control Module.

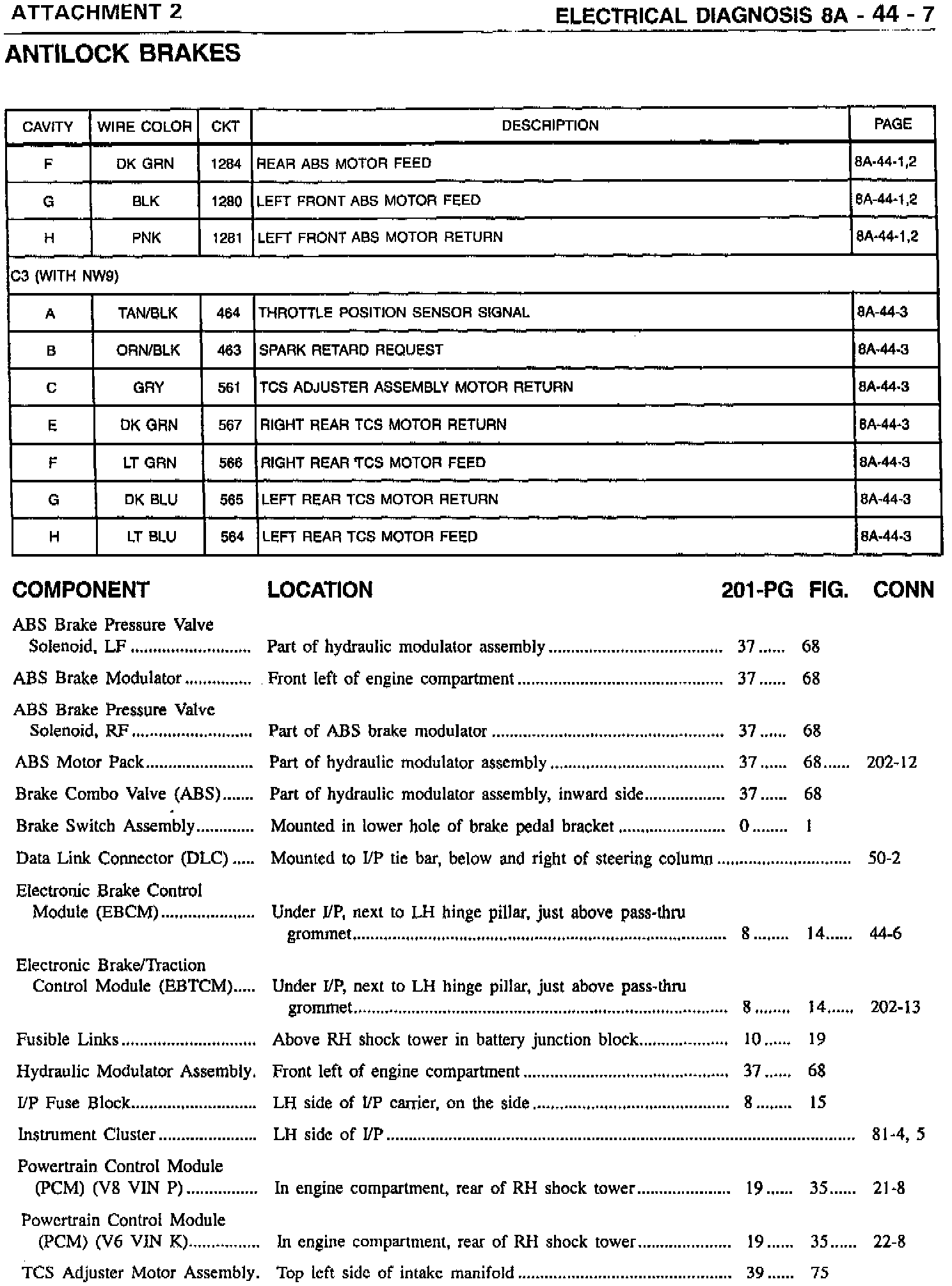

The component location table has been revised to change the ABS motor pack connector reference from page 202-10 to 202-12.
���G:
Please use the above pages to replace the existing pages in the Service Manual.
