Radial Tire Lead/Pull

Part 1 Of 2:

Part 2 Of 2:

Lead/pull is the deviation of the vehicle from a straight path on a level road with no pressure on the steering wheel.
Lead is usually caused by:
^ Poor tire construction.
^ Uneven brake assemblies.
^ Improper tire and wheel alignment.

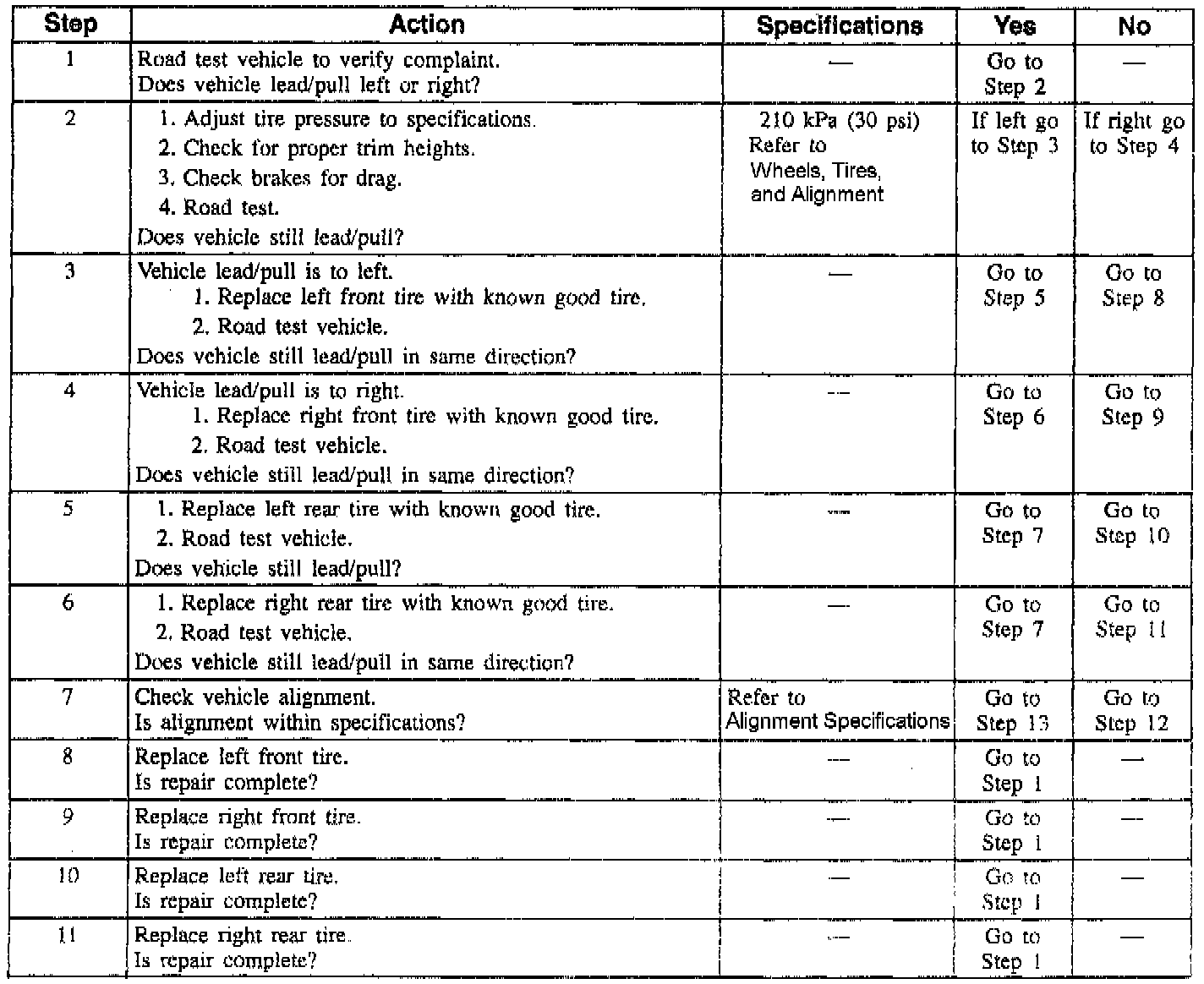

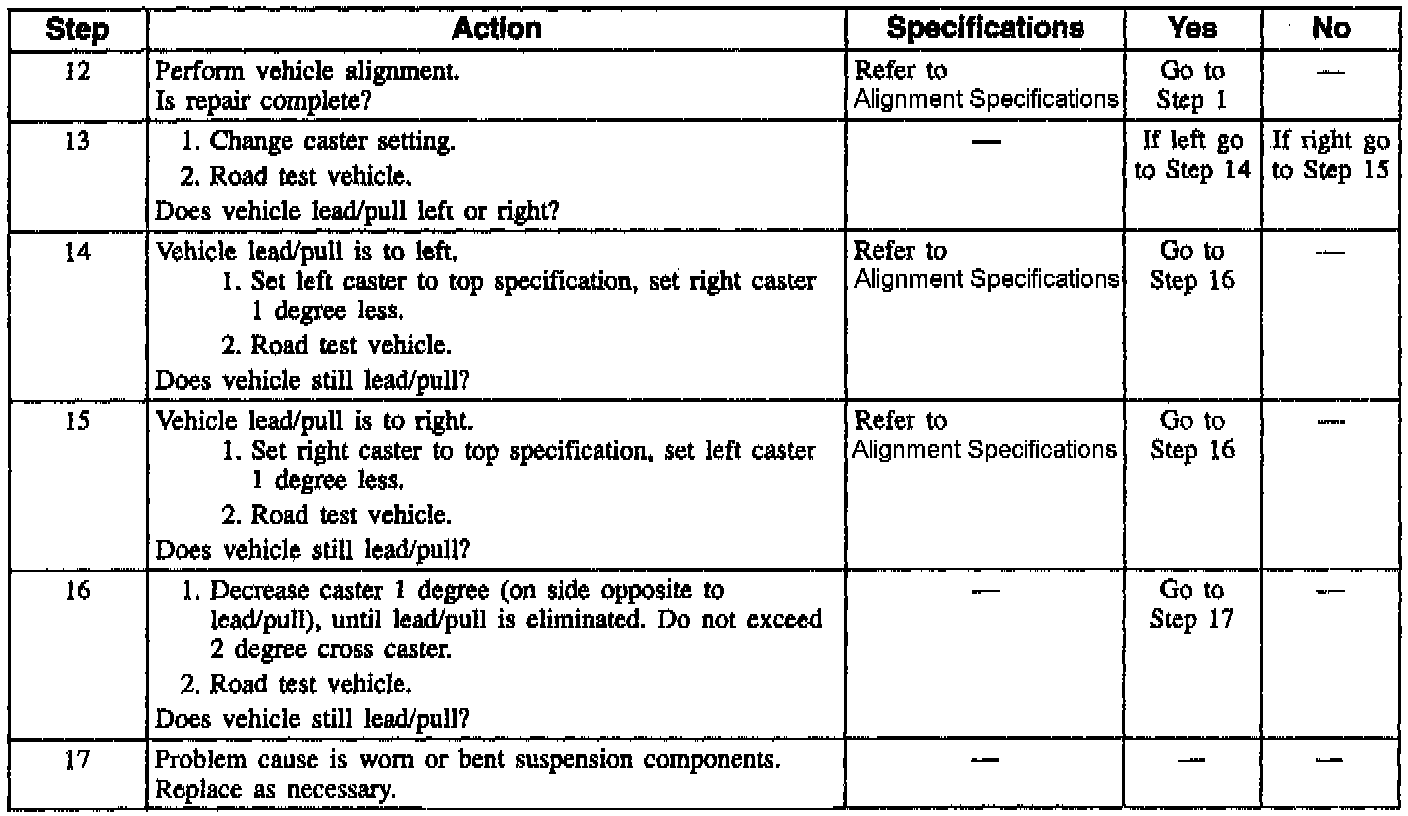

The way in which a tire is built can produce lead in a vehicle. An example of this is placement of the belt. Off-center belts on radial tires can cause the tire to develop aside force while rolling straight down the road and the tire will tend to roll like a cone. The lead/pull correction chart should be used to make sure that the front tire and wheel alignment is not mistaken for tire lead.
^ Rear tires will not cause lead.
