Suspension Travel Bumper: Service and Repair

NOTICE: The rear suspension jounce bumper is located on top of the rear axle housing.

REMOVE OR DISCONNECT
1. Raise and suitably support vehicle.
2. Support rear axle (13).

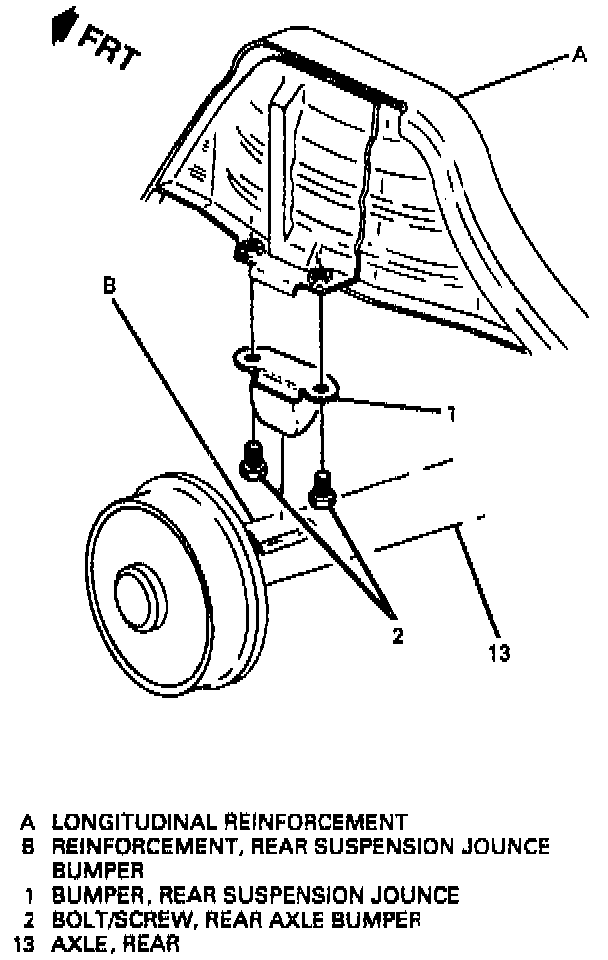

3. Bolts/screws (2).
4. Bumper (1).
^ Remove spacer with bumper (WS6 only).

INSTALL OR CONNECT

NOTICE: Always use the correct fastener in the correct location. When you replace a fastener, use ONLY the exact part number for that application. The manufacturer will call out those fasteners that require a replacement after removal. The manufacturer will also call out the fasteners that require thread lockers or thread sealant. UNLESS OTHERWISE SPECIFIED, do not use supplemental coatings (paints, greases, or other corrosion inhibitors) on threaded fasteners or fastener joint interfaces. Generally, such coatings adversely affect the fastener torque and the joint clamping force, and may damage the fastener. When you install fasteners, use the correct tightening sequence and specifications. Following these instructions can help you avoid damage to parts and systems.

1. Bumper (1).
^ Install spacer with bumper (WS6 only).
2. Bolts/screws (2).
^ Tighten bolts/screws (2) to 27 Nm (20 ft. lbs.).
3. Remove rear axle support.
4. Lower vehicle.
