Rear Suspension

Important: If both lower control arms are being replaced, remove and replace one control arm at a time to prevent the rear axle from rolling or slipping sideways, making replacement difficult.

REMOVE OR DISCONNECT
^ Tools Required:
- J 21474-5 Receiver
- J 21474-20 Installer
- J 21474-23 Remover
- Or Equivalents

1. Raise and suitably support vehicle.
2. Support rear axle.
3. Lower control arm. Refer to "Lower Control Arm".

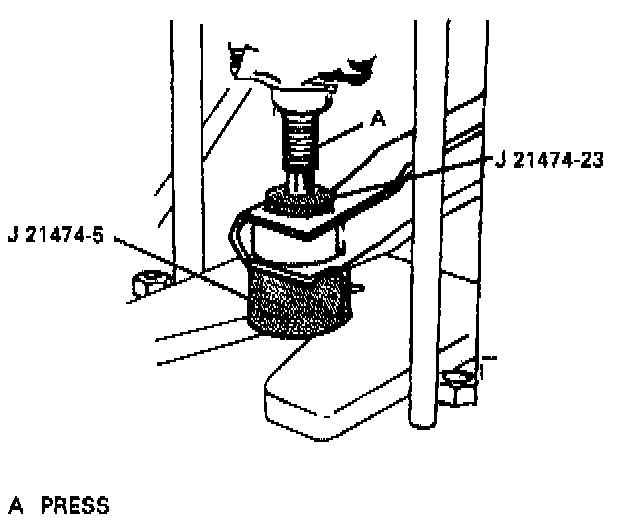

4. Place J 21474-5 over flanged side of bushing.
5. Use arbor press to force bushing out of arm, using large outside diameter of driver such as J 21474-23 contacting outside diameter of outer sleeve.

INSTALL OR CONNECT
1. Reverse tool.

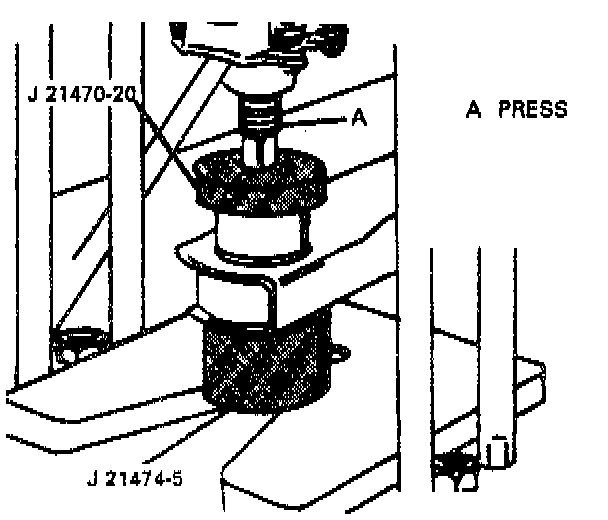

2. Place J 21474-5 over flanged side of bushing.
3. Bushing into position with J 21474-20
4. Lower control arm. Refer to "Lower Control Arm".
5. Remove rear axle support.
6. Lower vehicle.
