Coolant Fans - Electrical Diagnosis

File In Section: 8 - Chassis/Body Electrical

Bulletin No.: 63-81-38

Date: November, 1996

SERVICE MANUAL UPDATES

Subject:
Section 8A-31 - New Section for Coolant Fans

Models:
1996-97 Chevrolet Camaro
1996-97 Pontiac Firebird

This bulletin is being issued to provide a new Section 8A-31 (Coolant Fans) which was omitted from the 1996 and 1997 Camaro/Firebird Service Manual (GMP/96-F-1 and GMP/97-F-1).

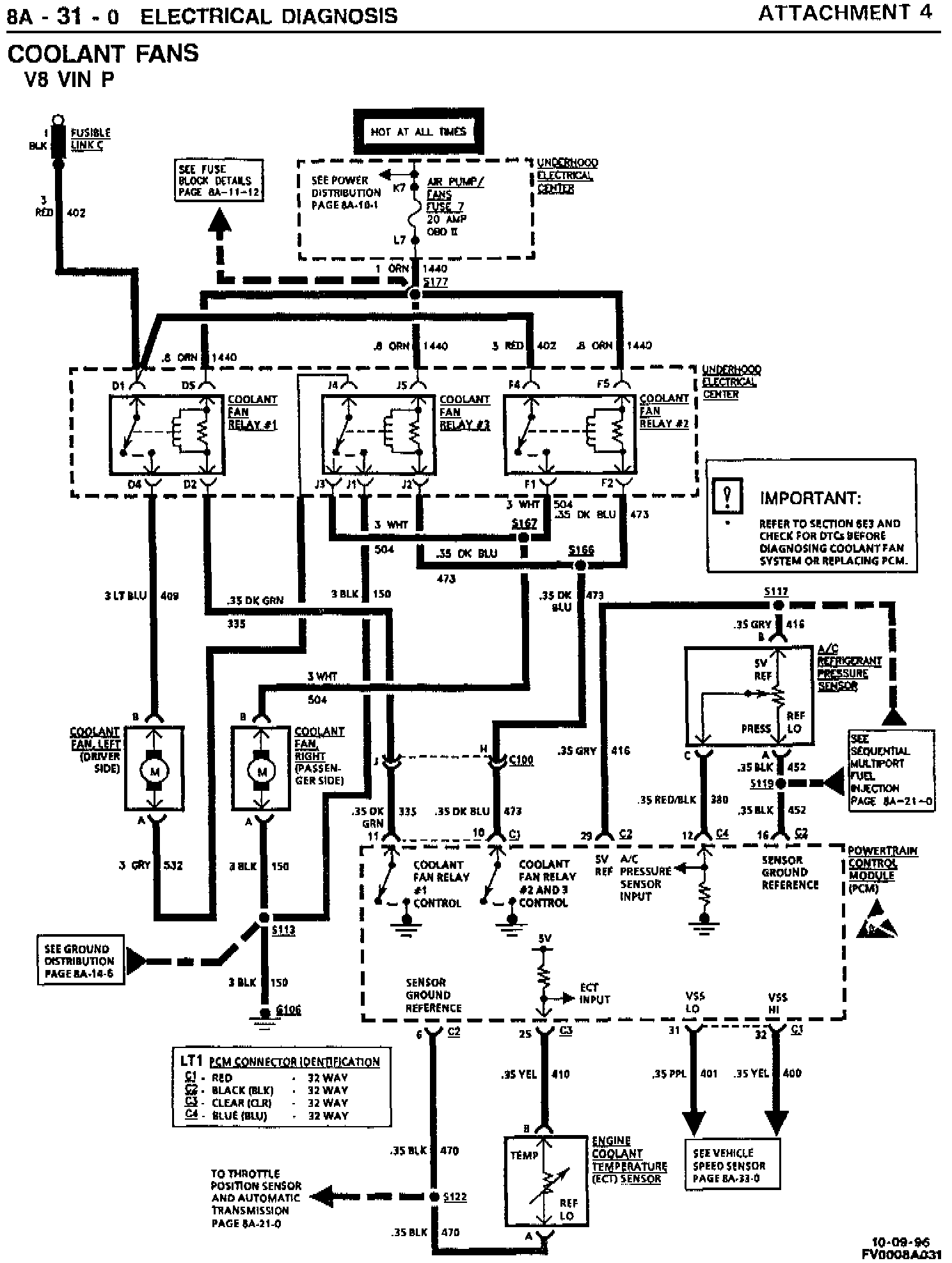

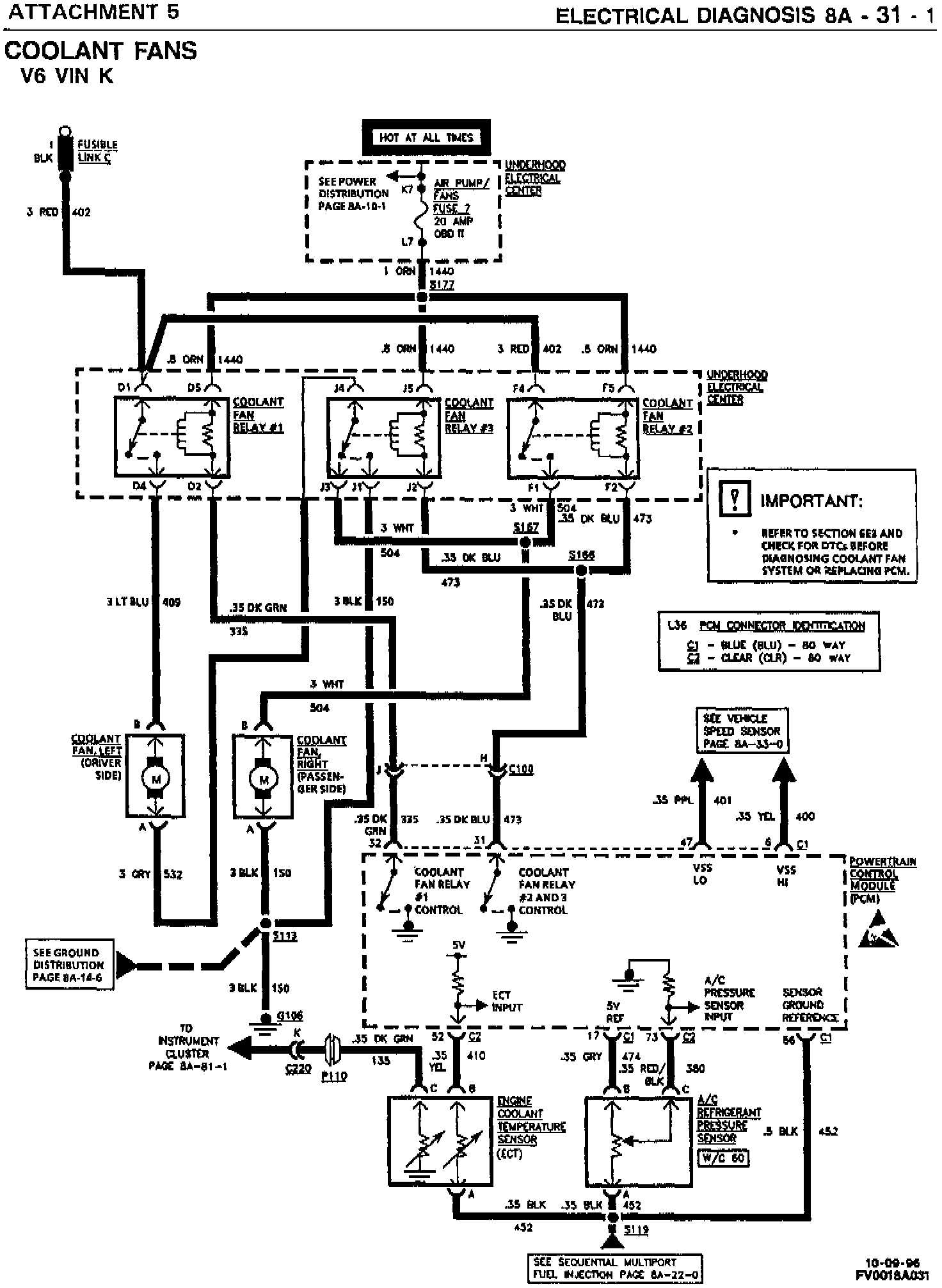

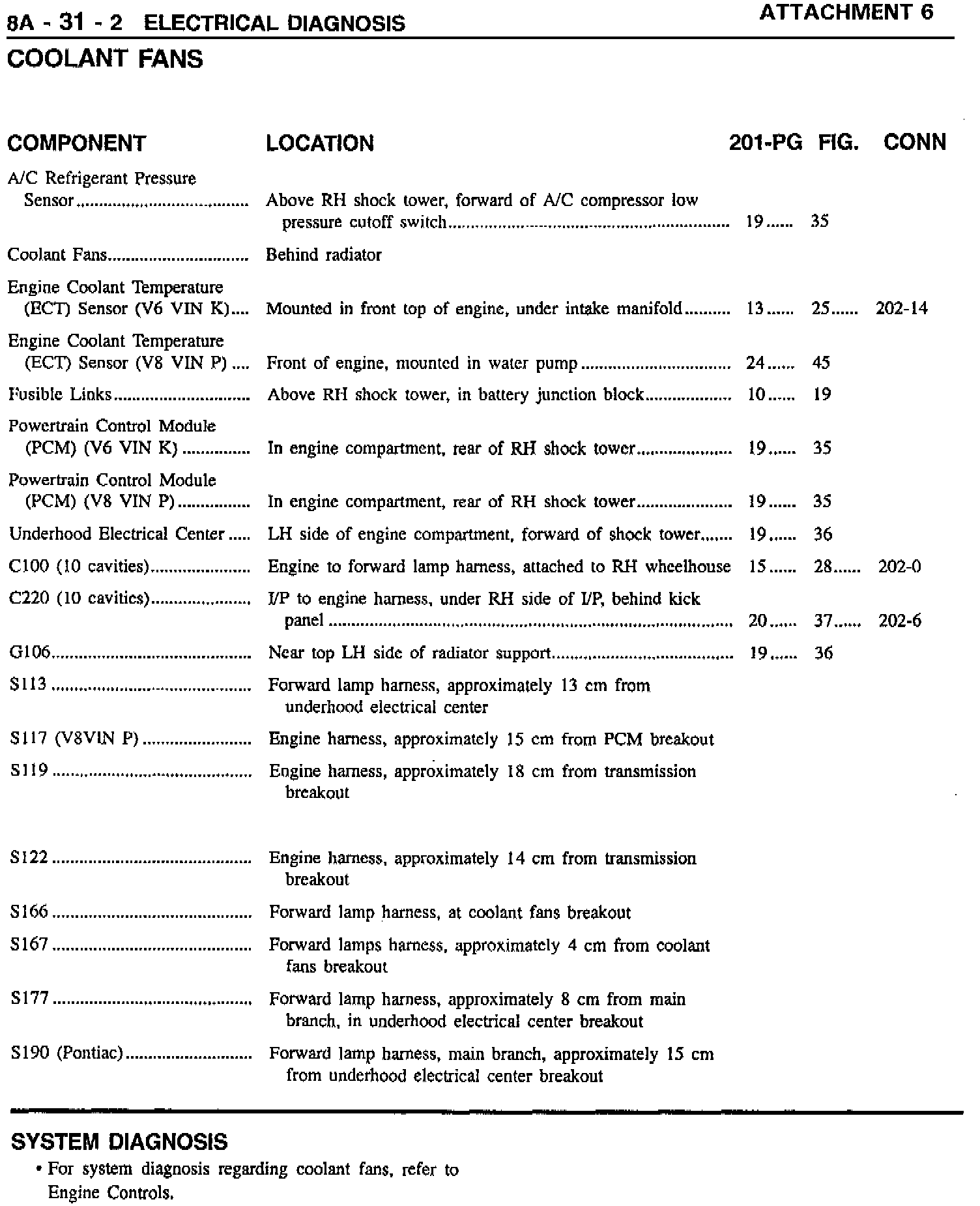

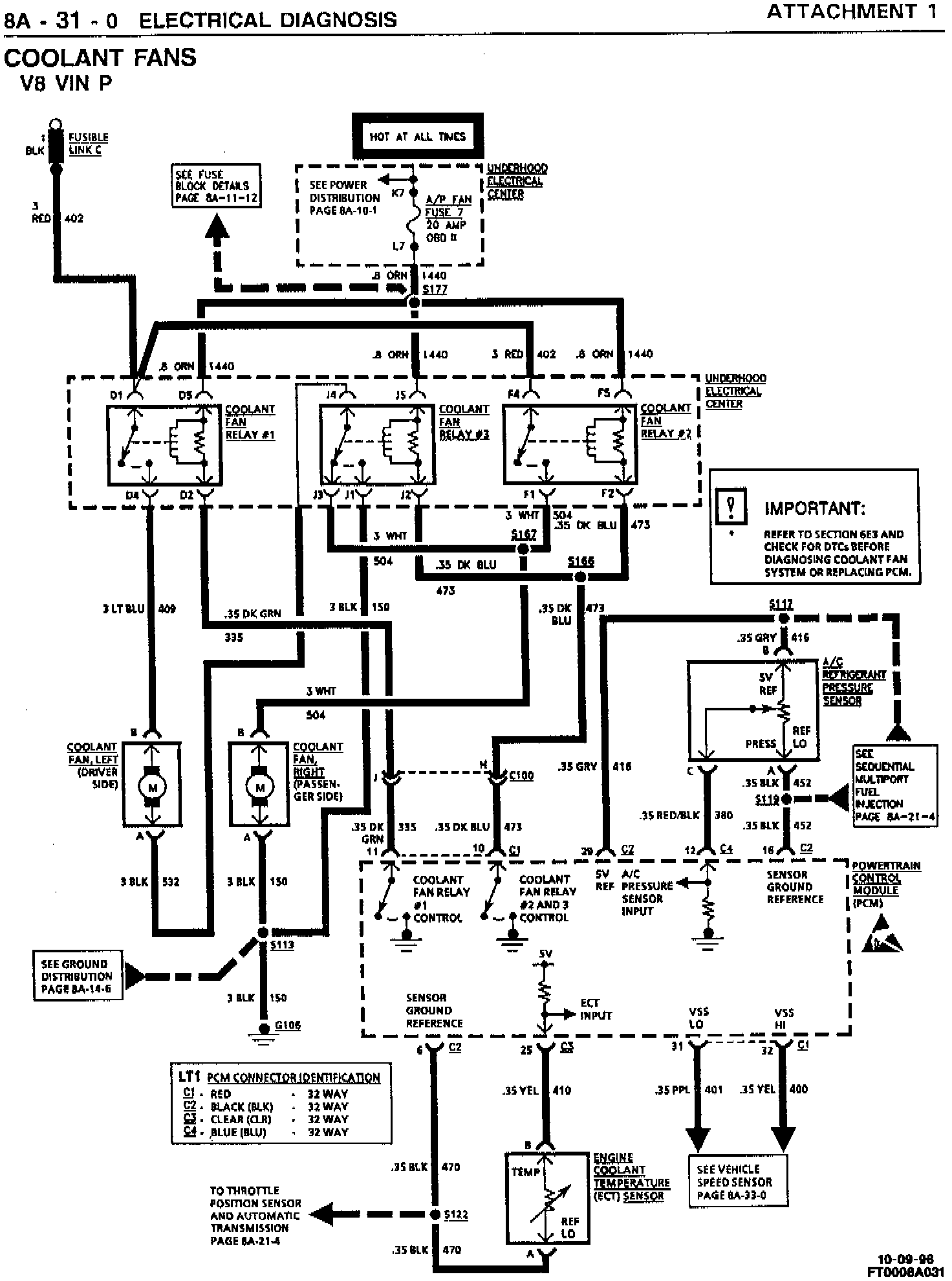

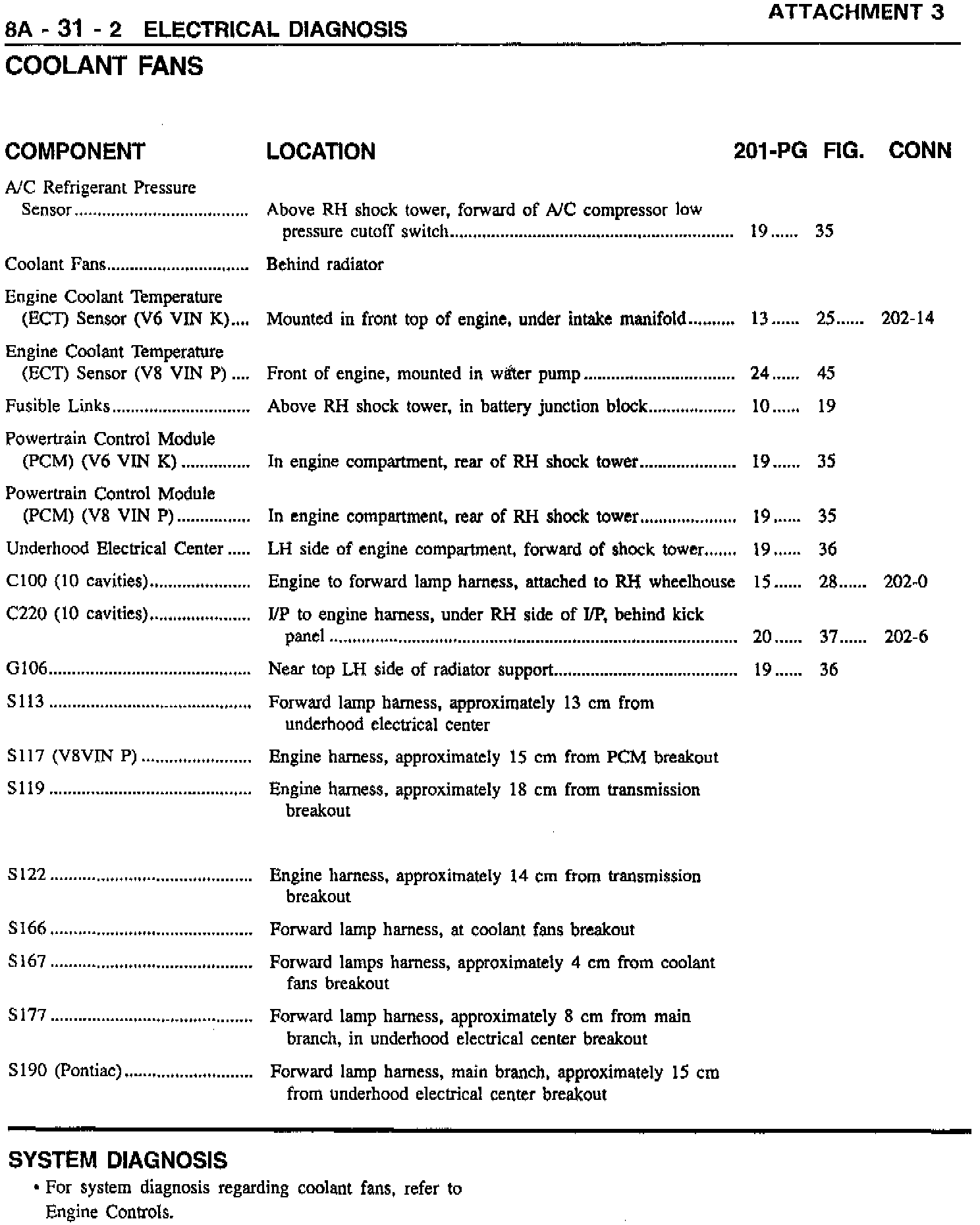

Please insert the attachments (1996: Attachments 1 - 3,1997: Attachments 4 - 6) into the appropriate area of the Service Manual.
