G200

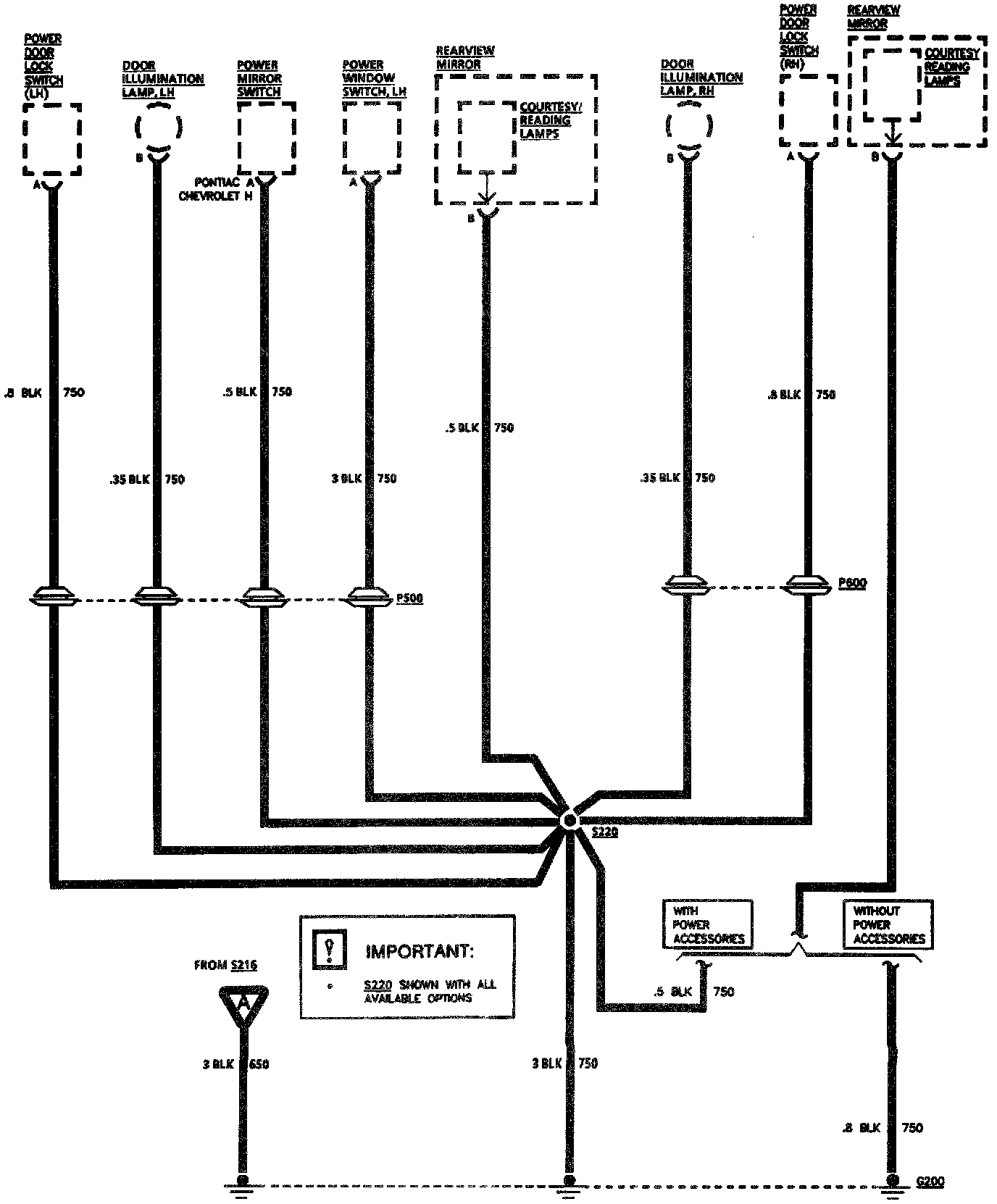

Power Doors, Locks, Mirrors And Windows:

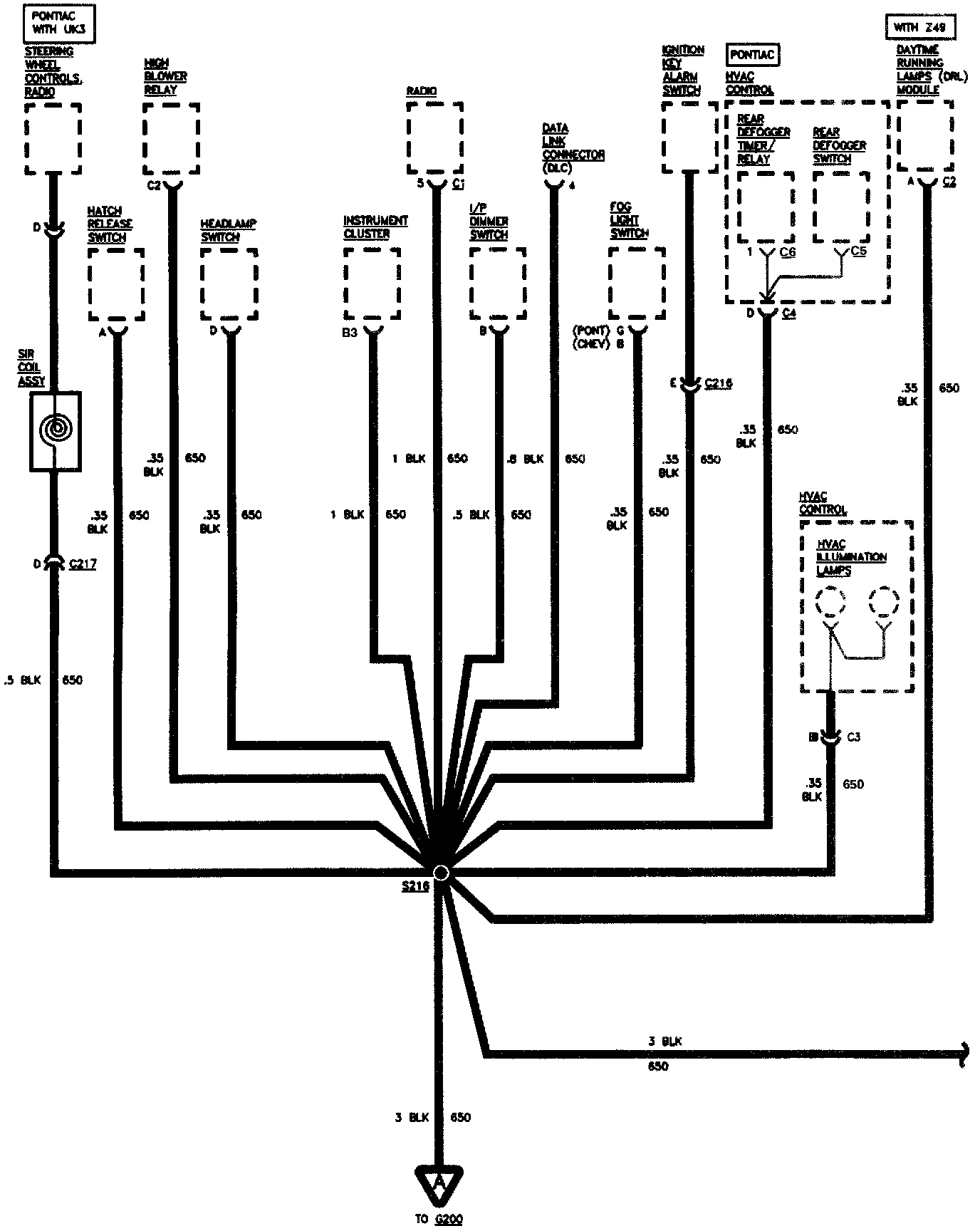

Daytime Running Lamps, HVAC Control Assembly, Light Switches, And Rear Defogger:

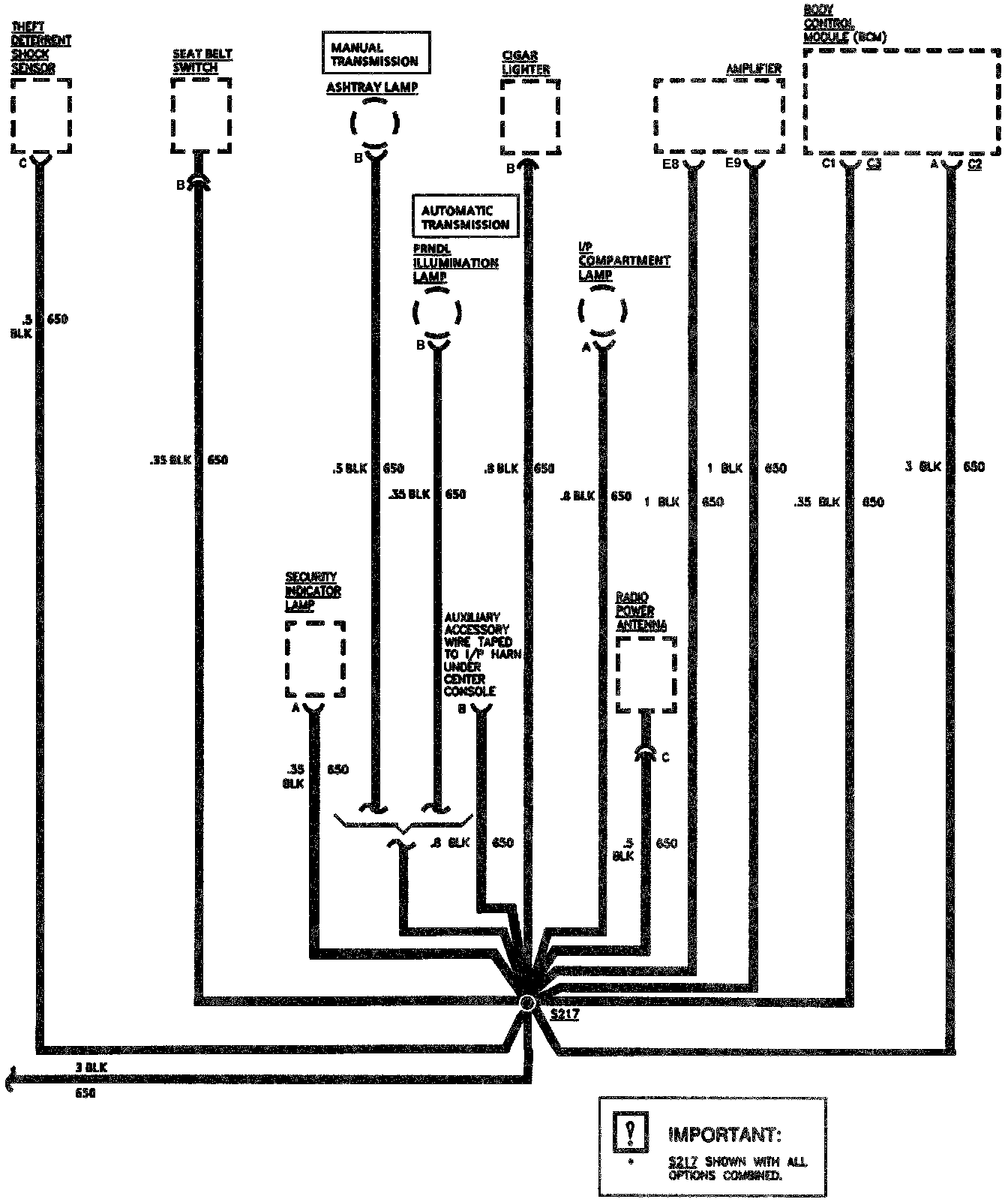

Body Control Module, Universal Theft Deterrent, Hatch Release, Radio, Instrument Panel And Console Area:
