Home >> Chevrolet >> 1997 >> Camaro V6-3.8L VIN K >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Testing and Inspection >> Scan Tool Testing and Procedures >> Typical Scan Data Values

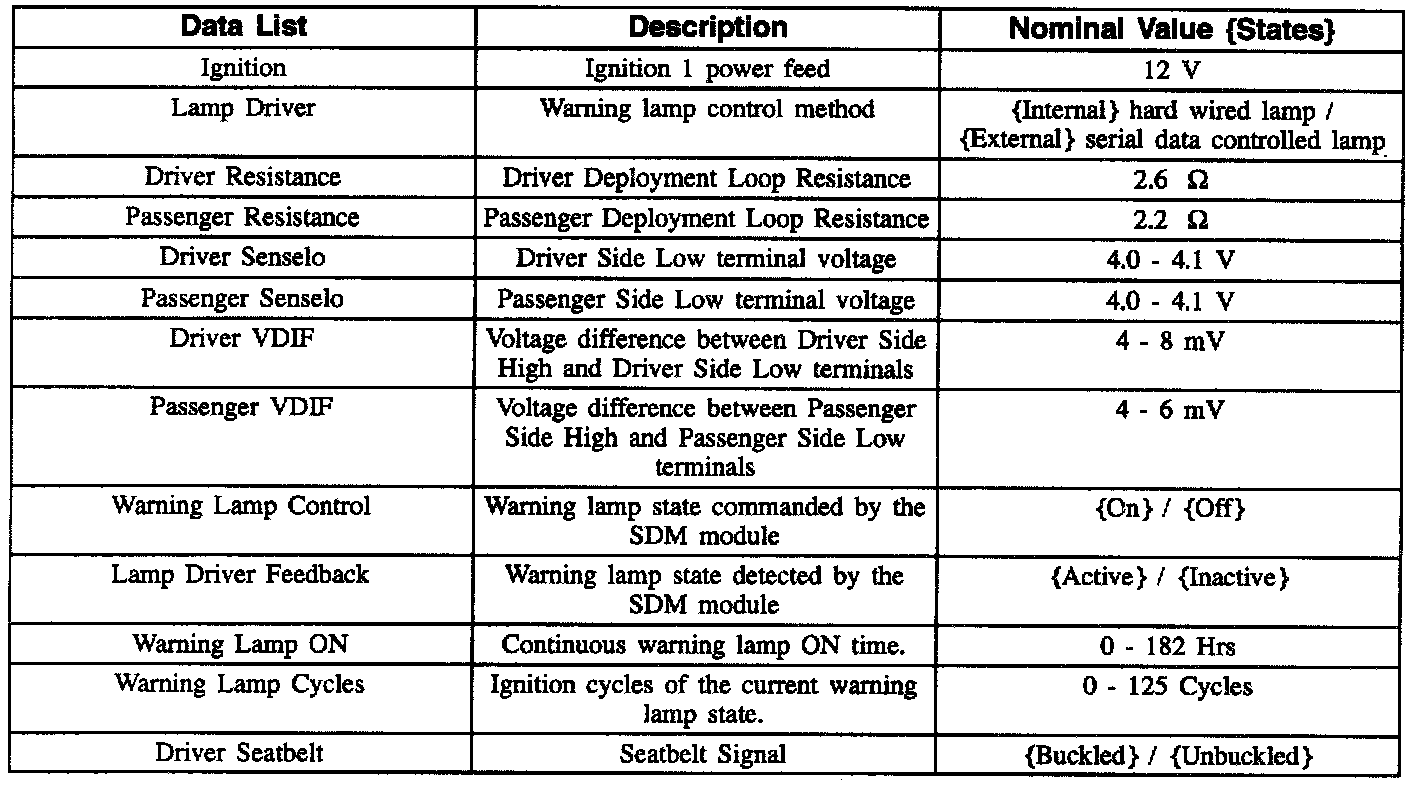

Typical Scan Data Values

Diagnostic Chart:
