Connector Views

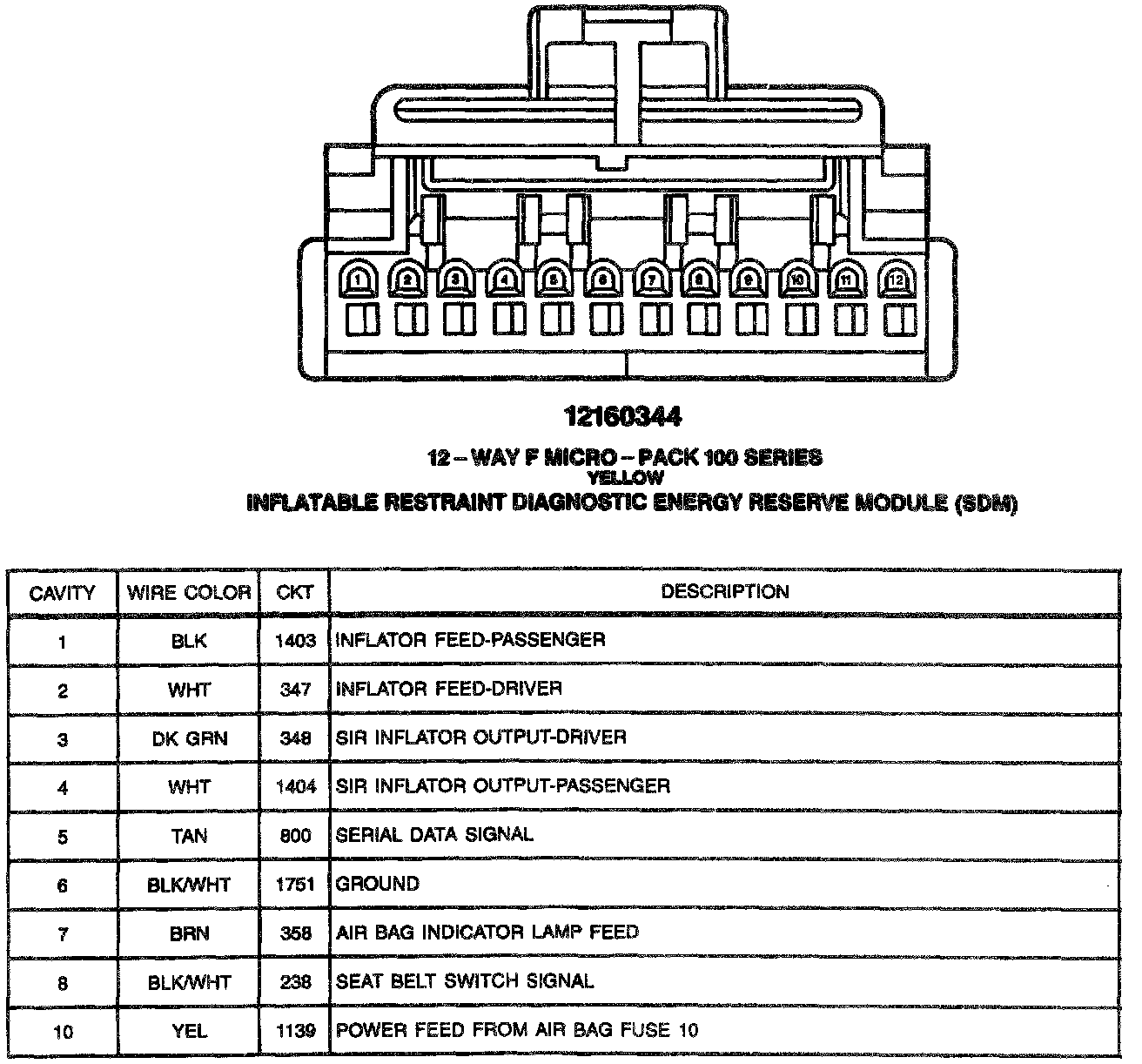

Inflatable Restraint Diagnostic Energy Reserve Module:

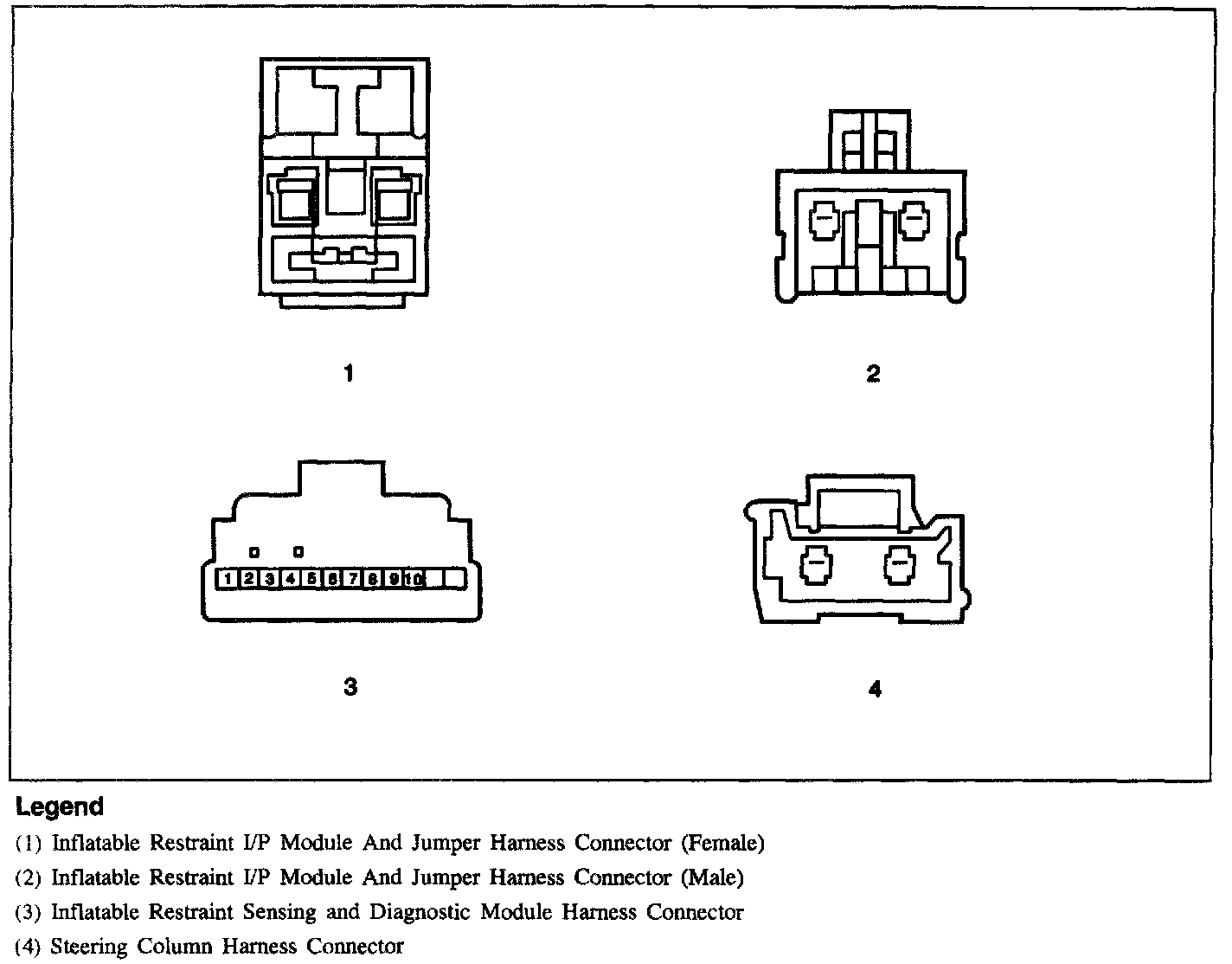

I/P Harness To SIR Coil Assembly Harness: C217:



Description:
