Fuel Pump Relay: Service and Repair

REMOVE OR DISCONNECT

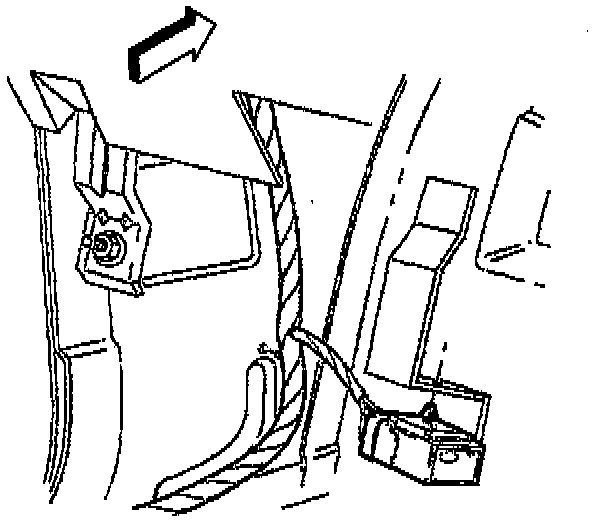

The fuel pump relay is mounted behind the driver-side kick panel/dead pedal (driver-side left foot rest).

1. Turn the ignition OFF.
2. Remove the negative battery cable.
3. Remove the driver-side kick panel/dead pedal (drive-side left foot rest).
4. Remove the fuel pump relay from the fuel pump relay electrical connector.

INSTALL OR CONNECT
1. Instal the fuel pump relay.
2. Install the driver-side kick panel/dead pedal (driver-side left foot rest).
3. Turn the ignition OFF.
4. Install the negative battery cable.
