Horn Relay: Service and Repair

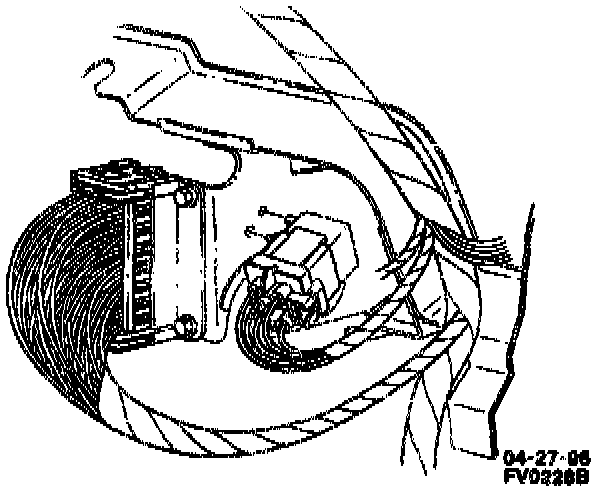

The horn relay is attached to the 48 way connector bracket below the hazard lamp flasher and behind the instrument panel on the driver knee bolster bracket.

Remove or Disconnect
1. Horn relay from bracket.
2. Electrical connector from horn relay.

Install or Connect
1. Electrical connector to horn relay.
2. Horn relay (5) to bracket.
