Electronic Brake Control Module
>>
Diagrams
>>
Pinout Description
Pinout Description

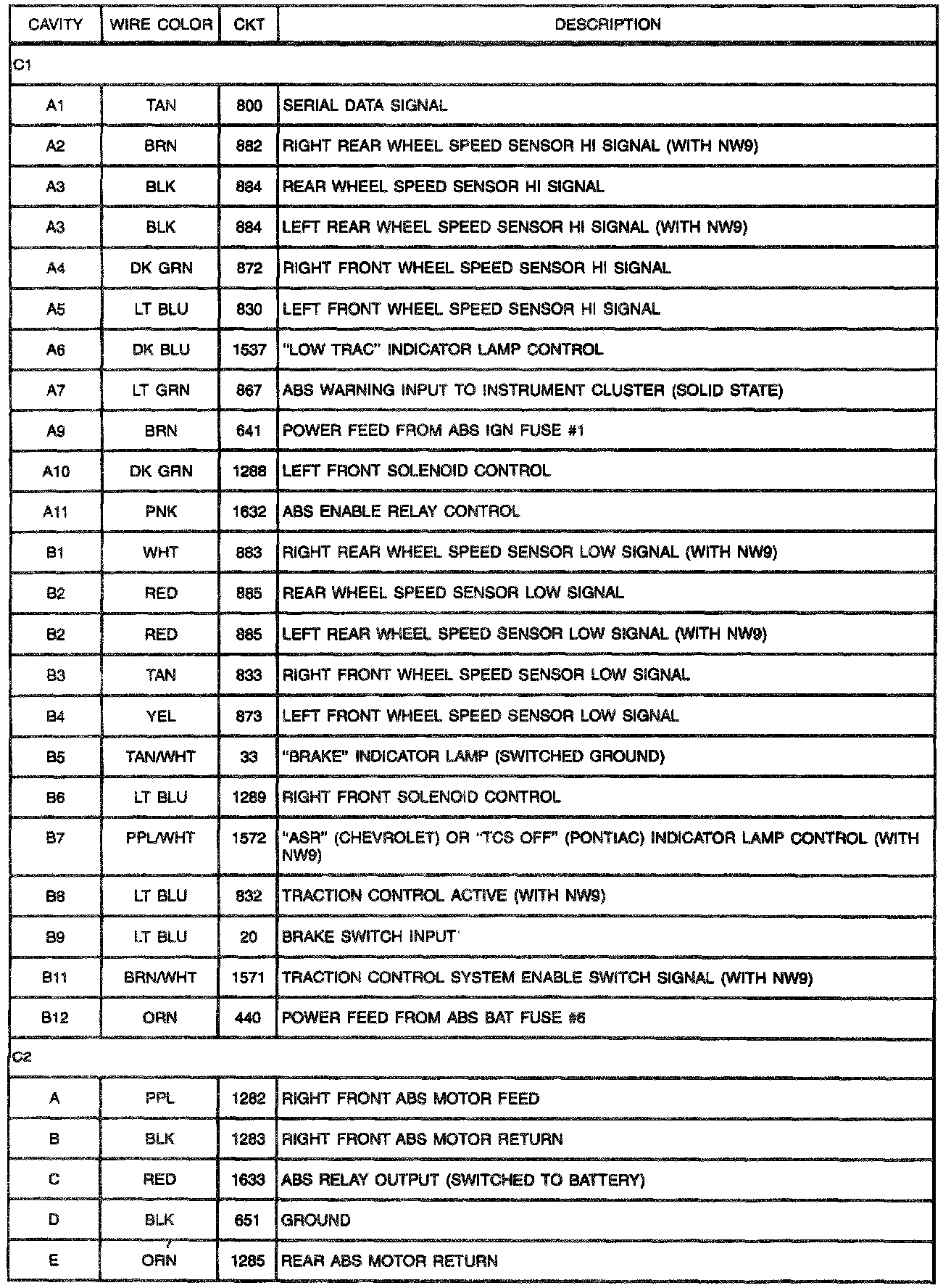

Electronic Brake Control Module/EBTCM (Part 1 Of 2):

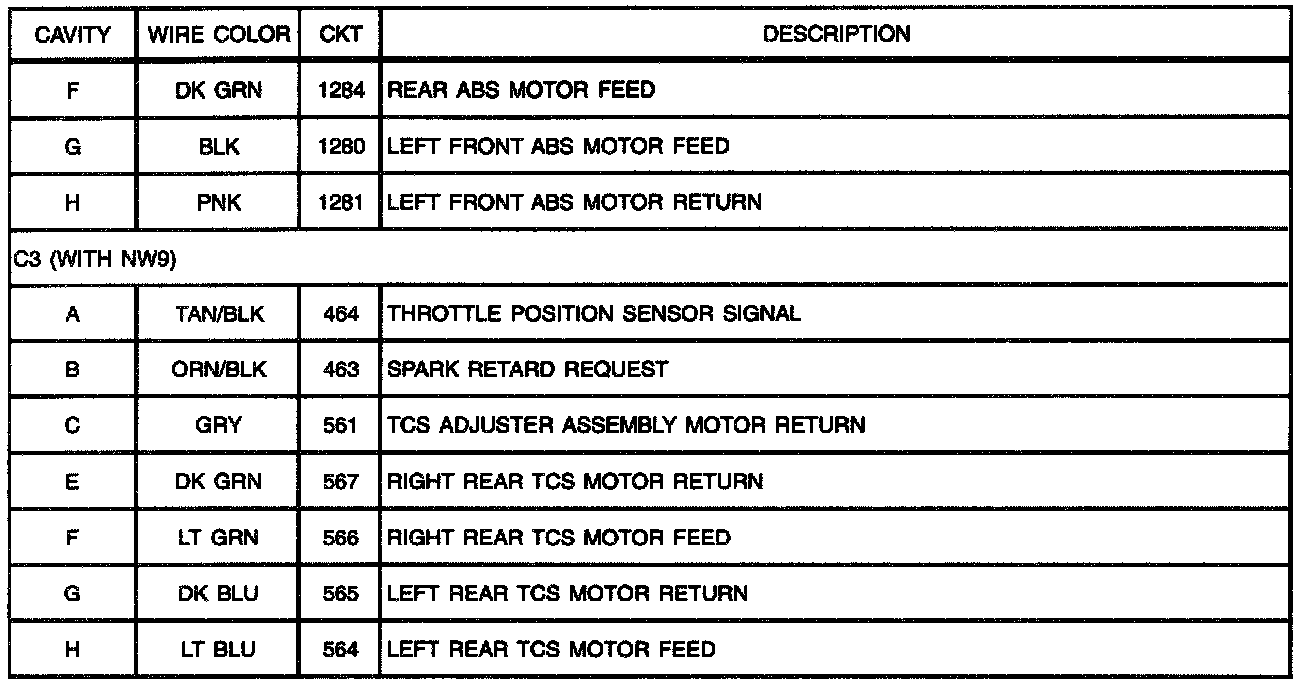

Electronic Brake Control Module (EBCM)/EBTCM (Part 2 Of 2):
