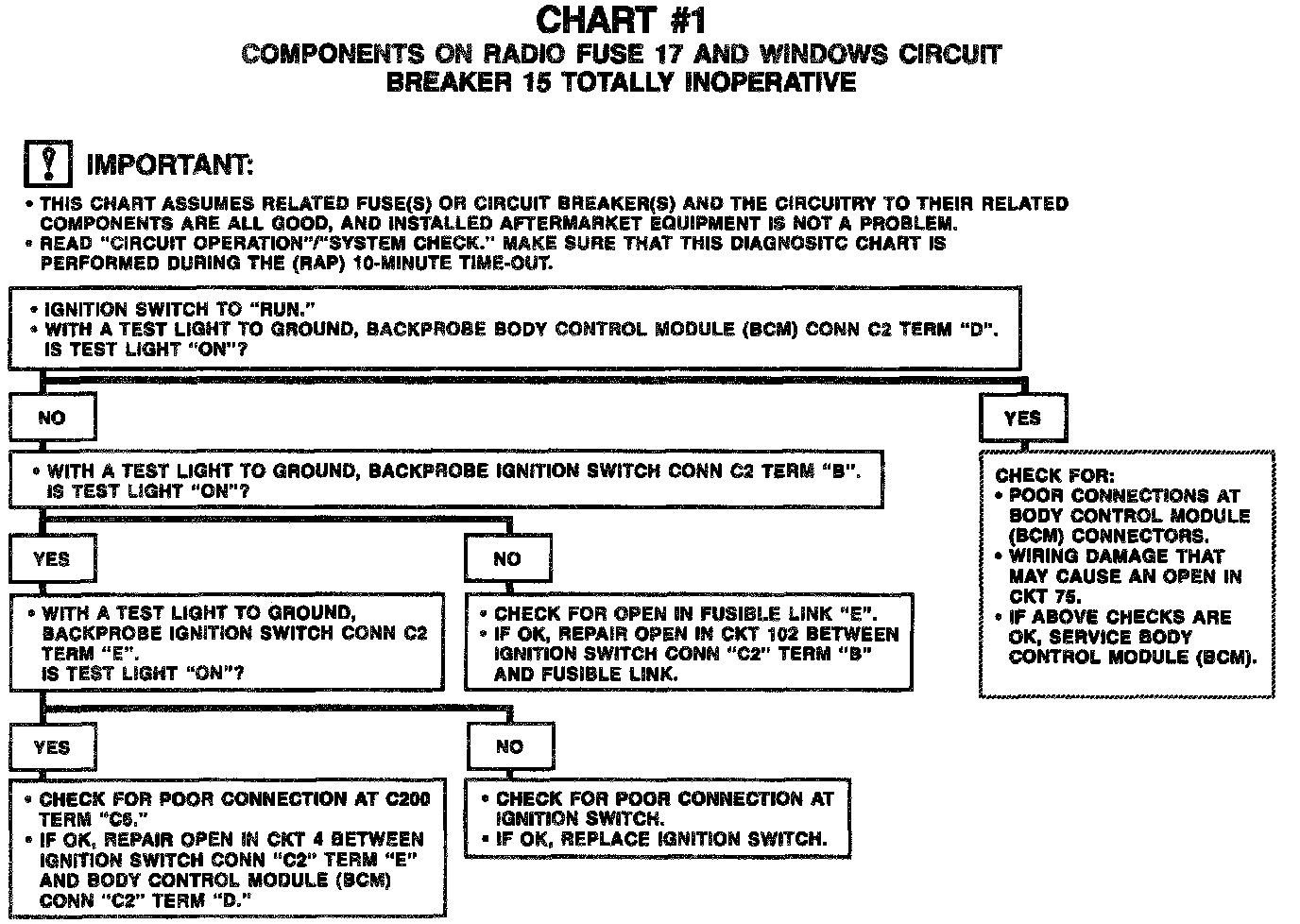

Chart #1 COMP on Radio Fuse 17 and Windows CB 15 Inop

Chart #1 Components On Radio Fuse 17 And Windows Circuit Breaker 15 Totally Inoperative:
