Port Fuel Injection Diagnostic Kit

Port Fuel Injection Diagnostic Kit:

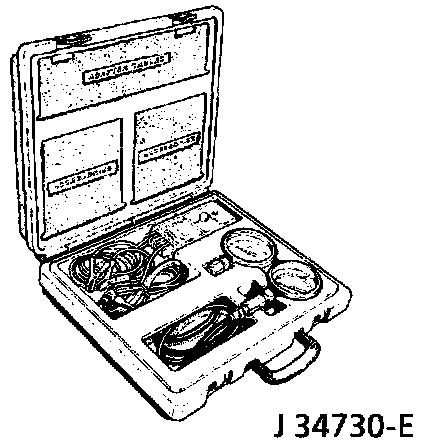

PORT FUEL INJECTION DIAGNOSTIC KIT
Used to diagnose port fuel injection systems. The kit includes:
^ Fuel Pressure Gage - (J 34730-1 A)
^ Injector Test Light - (J 34730-2C)
^ Test Harness Adapter - (J 34730-225) - used to connect J 39021 to CPI engine harness
^ Injector Poppet Tester - (J 34730-230) - used to check CPI fuel flow.
^ Fuel Injector Tester - (J 39021) - used to check injector coils and to perform injector balance (fuel flow) check
