Home >> Chevrolet >> 1997 >> Camaro V6-3.8L VIN K >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Ignition Coil >> Locations

Ignition Coil: Locations

Ignition Control Module:

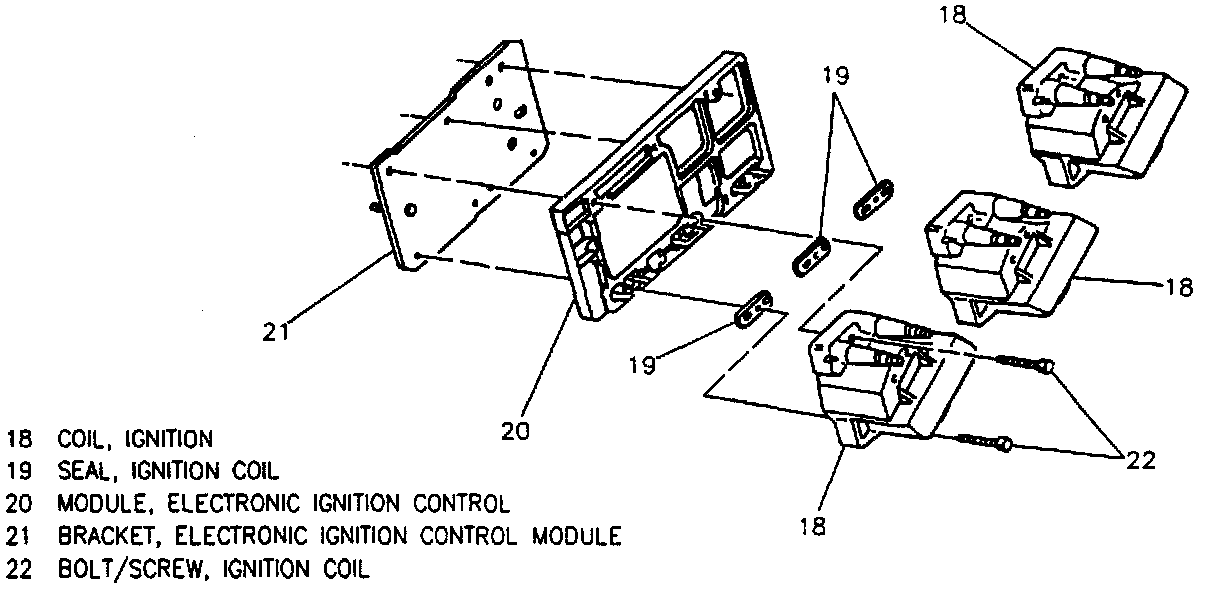

Electronic Ignition Control Module And Coils:
