Idle Speed/Throttle Actuator - Electronic: Adjustments

Idle Air Control Valve Pintle Retraction (Manually):

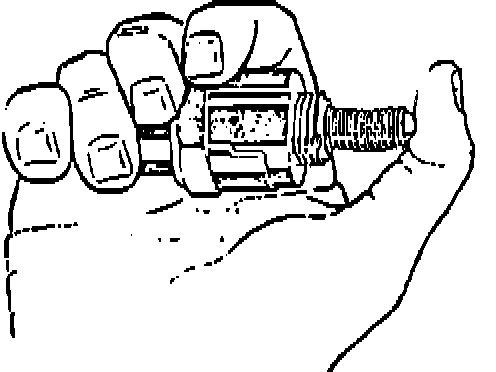

Before installing new IAC valve, measure the distance that the valve is extended. Measurement should be made from motor housing to end of cone. Distance should he no greater than 28 mm (1 1/8 inch). If the cone is extended too far, adjustment is required or damage may occur to the valve when installed. Adjust IAC by manually compressing or extending the pintle to achieve the correct length.
