Rear Fuel Return

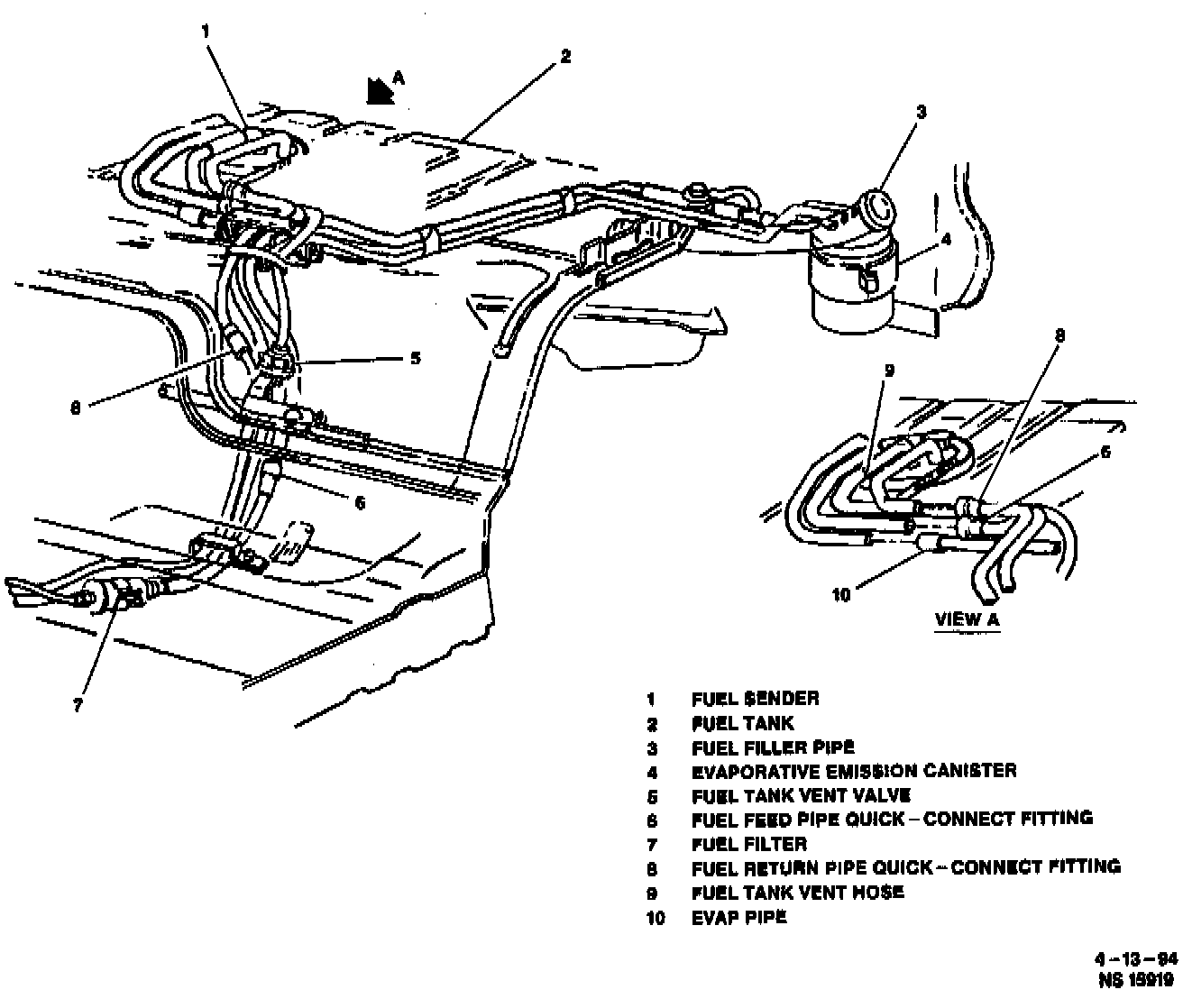

Rear Fuel and Vapor Pipes:

NOTE: Do Not attempt to repair rear fuel feed, return, and EVAP pipes. If damaged, replace.

REMOVE OR DISCONNECT
1. Negative battery cable.
2. Relieve fuel system pressure.
3. Raise vehicle.

Clean
Clean all fuel and EVAP pipe and hose connections and surrounding areas before disconnecting to avoid possible contamination of the fuel system.

4. Fuel tank.
5. Rear fuel feed and return pipes from chassis fuel pipe and fuel filter.
6. EVAP hoses from EVAP pressure control valve and EVAP canister.

INSTALL OR CONNECT
1. EVAP hoses to EVAP pressure control valve and EVAP canister.
2. Rear fuel feed and return pipes to chassis fuel pipe and fuel filter.
3. Fuel tank.
4. Lower vehicle.
5. Negative battery cable.
6. Tighten fuel filler cap.

INSPECT
Turn ignition switch to "ON" position for two seconds, then turn to "OFF" for ten seconds. Again turn to "ON" position and check for fuel leaks.
