Accelerator Pedal: Service and Repair

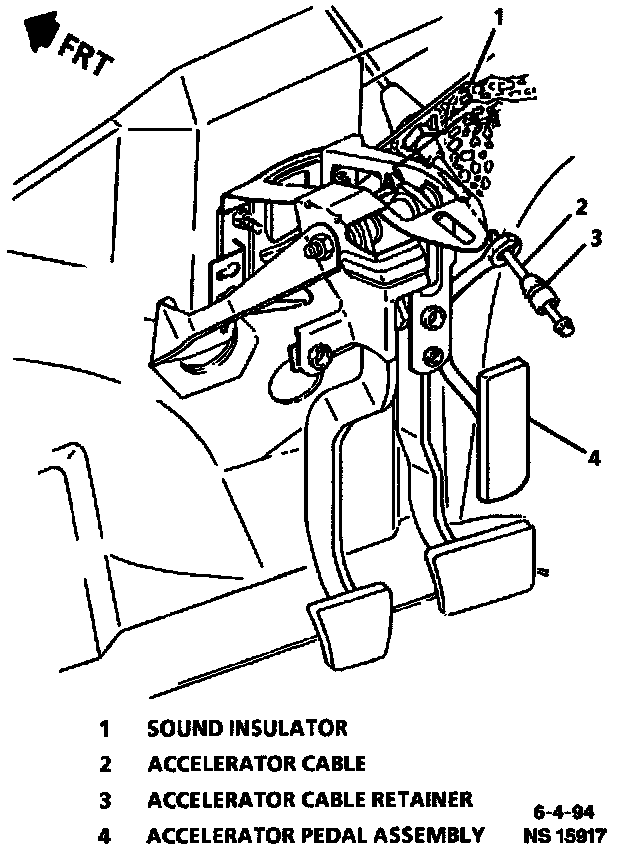

Accelerator Controls:

REMOVE OR DISCONNECT
1. Accelerator pedal pivot pin.
2. Accelerator pedal from accelerator pedal lever.

INSTALL OR CONNECT
1. Accelerator pedal and spring to accelerator pedal lever.
2. Accelerator pedal pivot pin.

Note: Check for complete throttle opening and closing positions by operating the accelerator pedal. Also, check for poor carpet fit under the accelerator pedal. The throttle should operate freely without bind between full closed throttle and wide open throttle.
