EGR Valve: Service and Repair

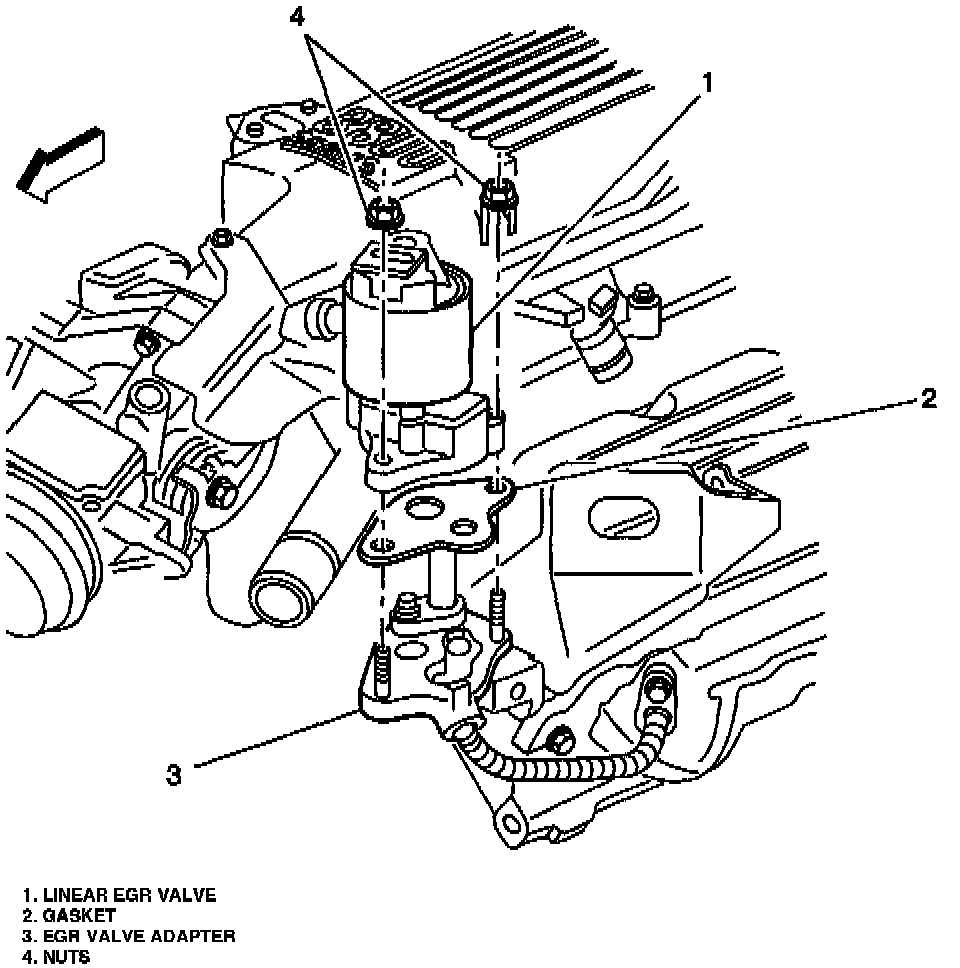

Figure C7-2 - EGR Valve Mounting:

REMOVE OR DISCONNECT
1. Electrical connector at EGR valve.
2. Two base to flange nuts and linear EGR valve assembly.

INSTALL
1. Linear EGR valve assembly - two nuts, tighten to 30 Nm (22 ft lb).
2. Electrical connector.
