Evaporative Emission Control Canister: Service and Repair

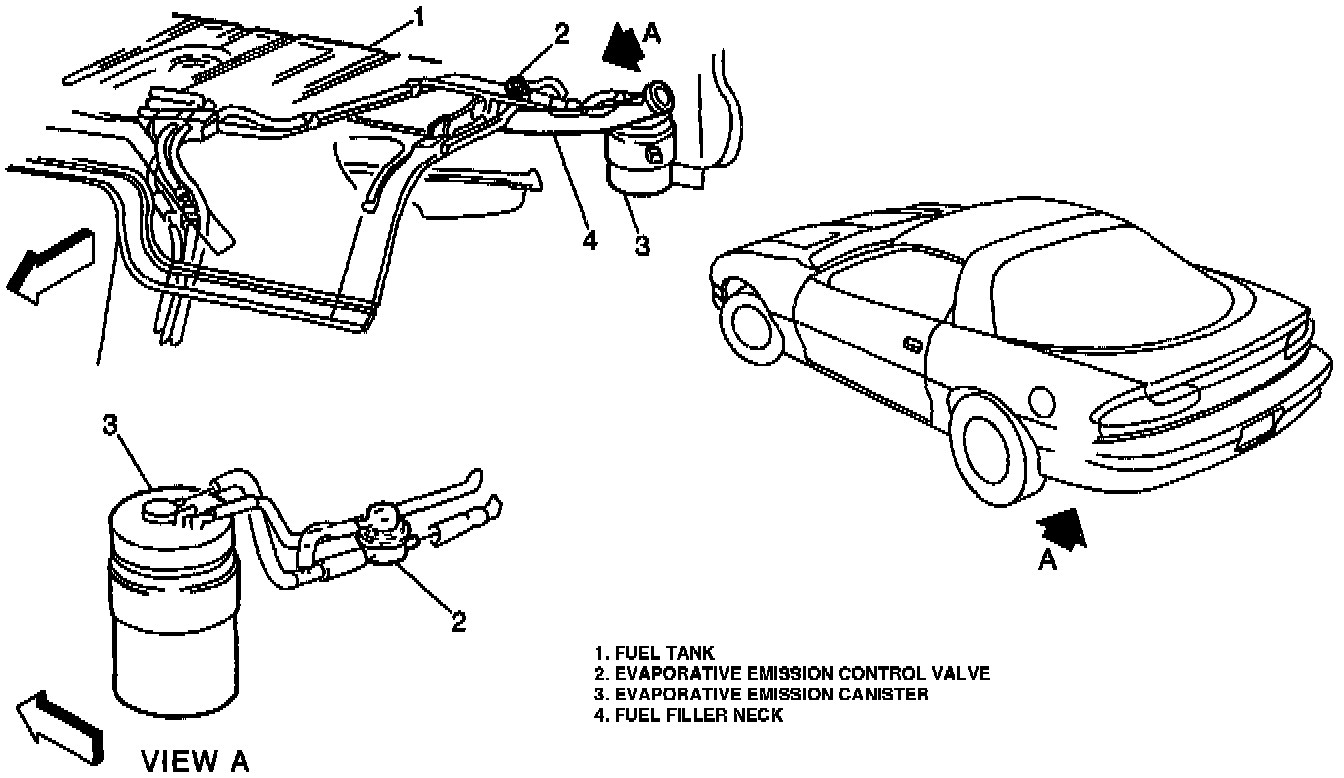

EVAP Canister:

REMOVE OR DISCONNECT
1. Negative battery cable.
2. Raise vehicle.
3. Driver side rear wheel housing liner.
4. Hoses from canister. Mark hoses to install on new canister.
5. Release latch on canister bracket.
6. Canister from canister bracket.
7. Canister from vehicle.

INSTALL OR CONNECT
1. Canister to vehicle.
2. Canister to canister bracket, make sure latch engages.
3. Hoses to canister. Make sure connections are correct.
4. Driver side rear wheel housing liner.
5. Lower vehicle.
6. Negative battery cable.
