Catalyst Shield: Service and Repair

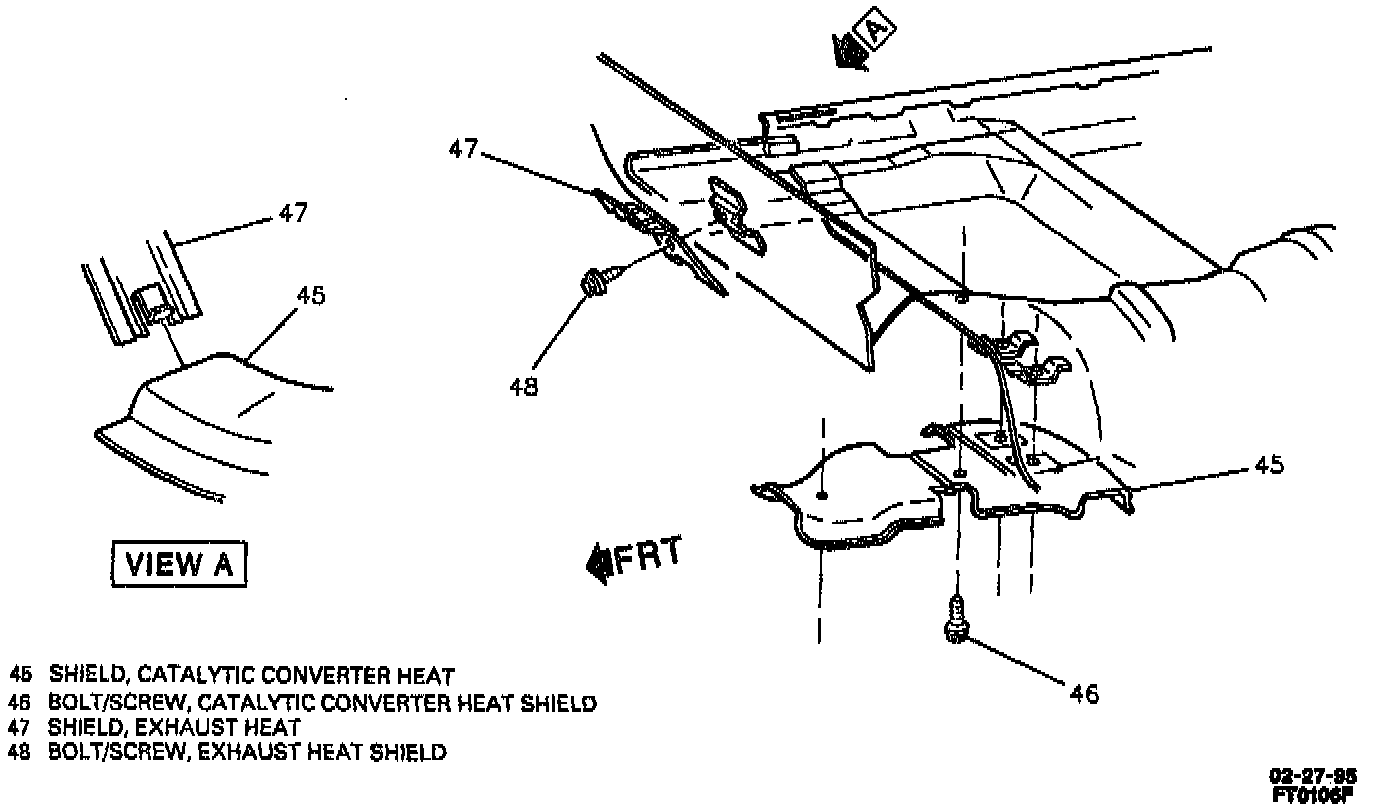

REMOVAL
1. Catalytic converter.
2. Catalytic converter heat shield bolts/screws (46).
3. Catalytic converter heat shield (45).

INSTALLATION
1. Catalytic converter heat shield (45).
2. Catalytic converter heat shield bolts/screws (46). Tighten catalytic converter heat shield bolts/screws (46) to 2.0 Nm (18 inch lbs.).
3. Catalytic converter.
