Underhood Fuses 1, 2, 3, 4, 5 and ABS-ASR/TCS Relay

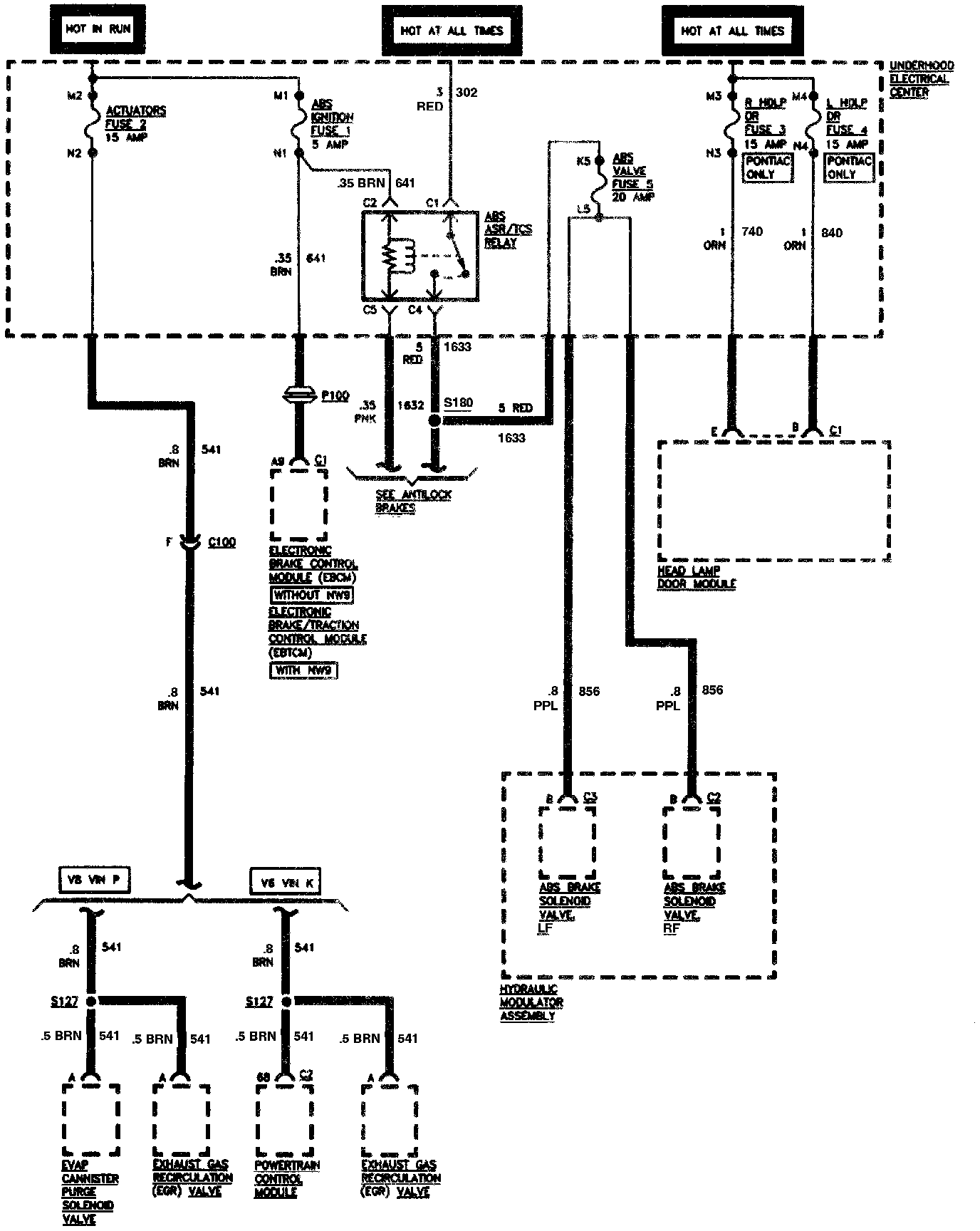

Underhood Fuses 1, 2, 3, 4, 5 And ABS-ASR/TCS Relay:
