Home >> Chevrolet >> 1997 >> Camaro V6-3.8L VIN K >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution >> G105

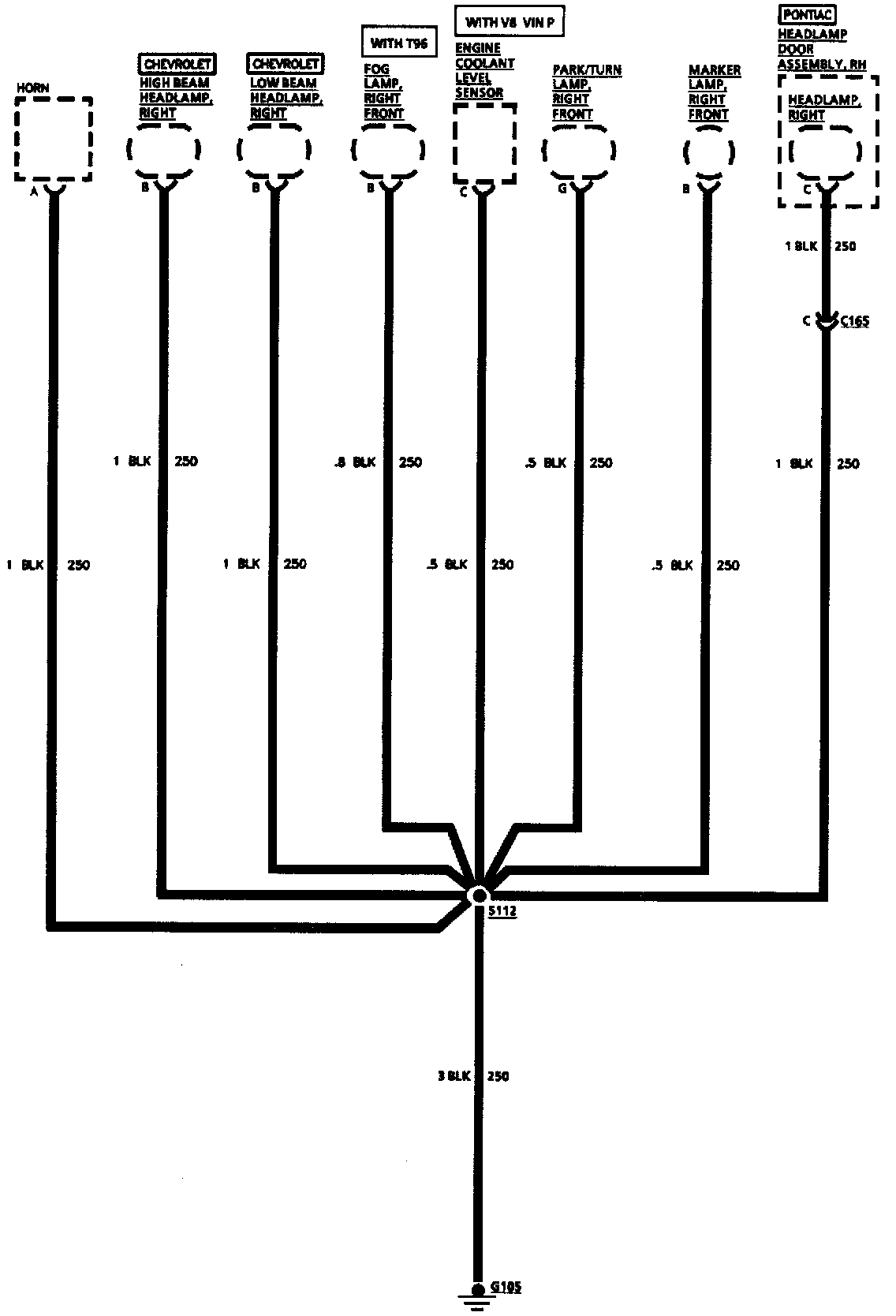

G105

Engine Coolant Level Sensor And Forward Lamp:
