Home >> Chevrolet >> 1997 >> Camaro V6-3.8L VIN K >> Repair and Diagnosis >> Locations >> Component Locations >> Miscellaneous Components >> Cross Car Harness

Cross Car Harness

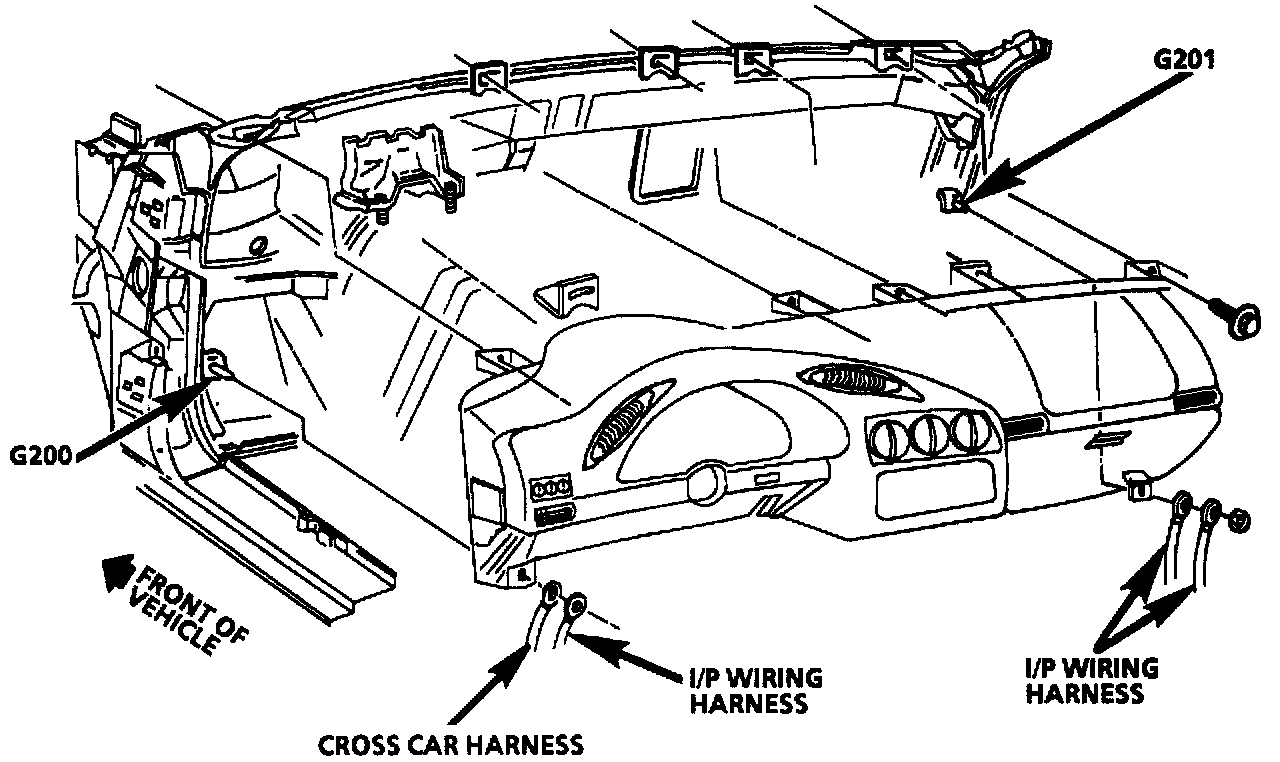

I/P Grounds (Chevrolet Shown Pontiac Similar):

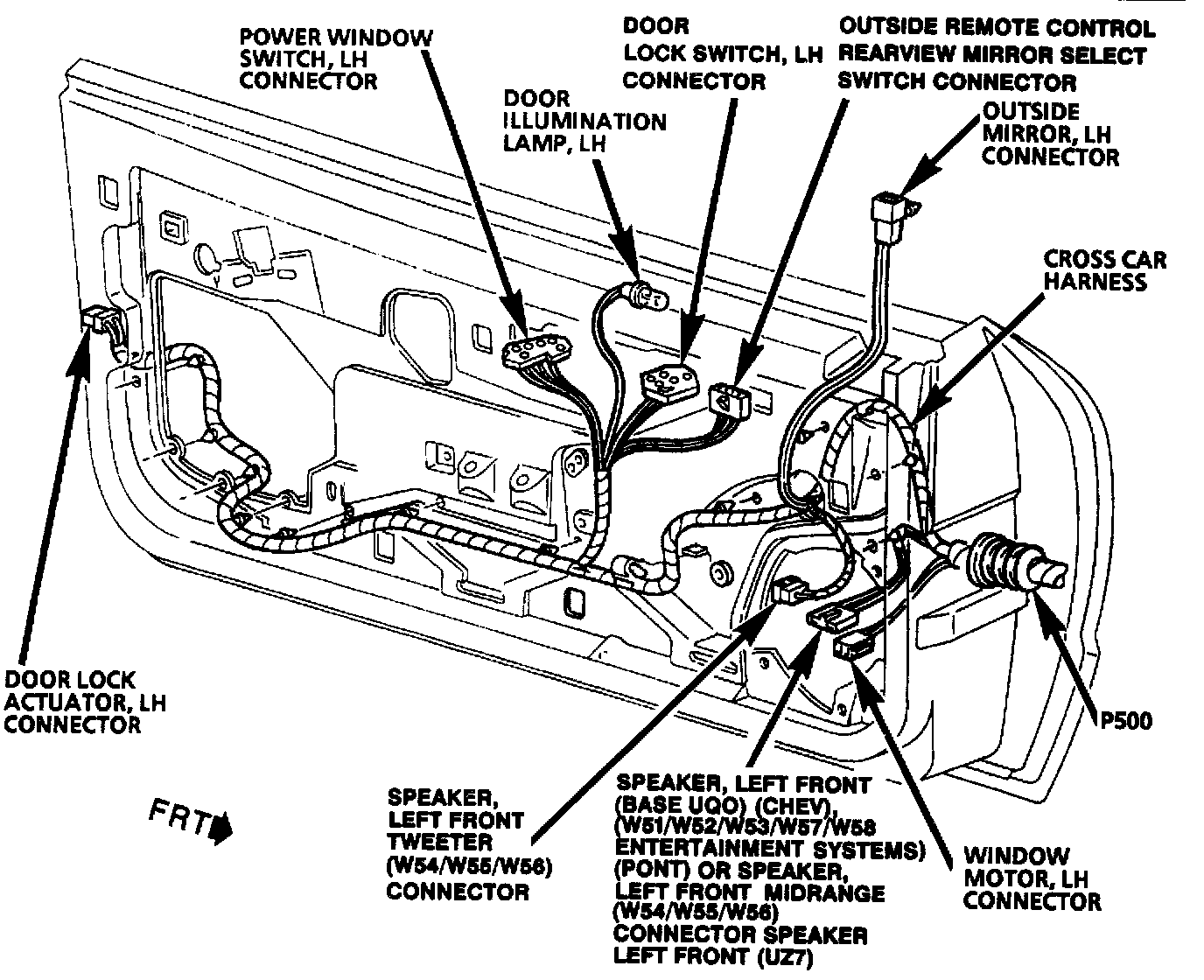

Behind LH Door Trim (RH Door Similar):

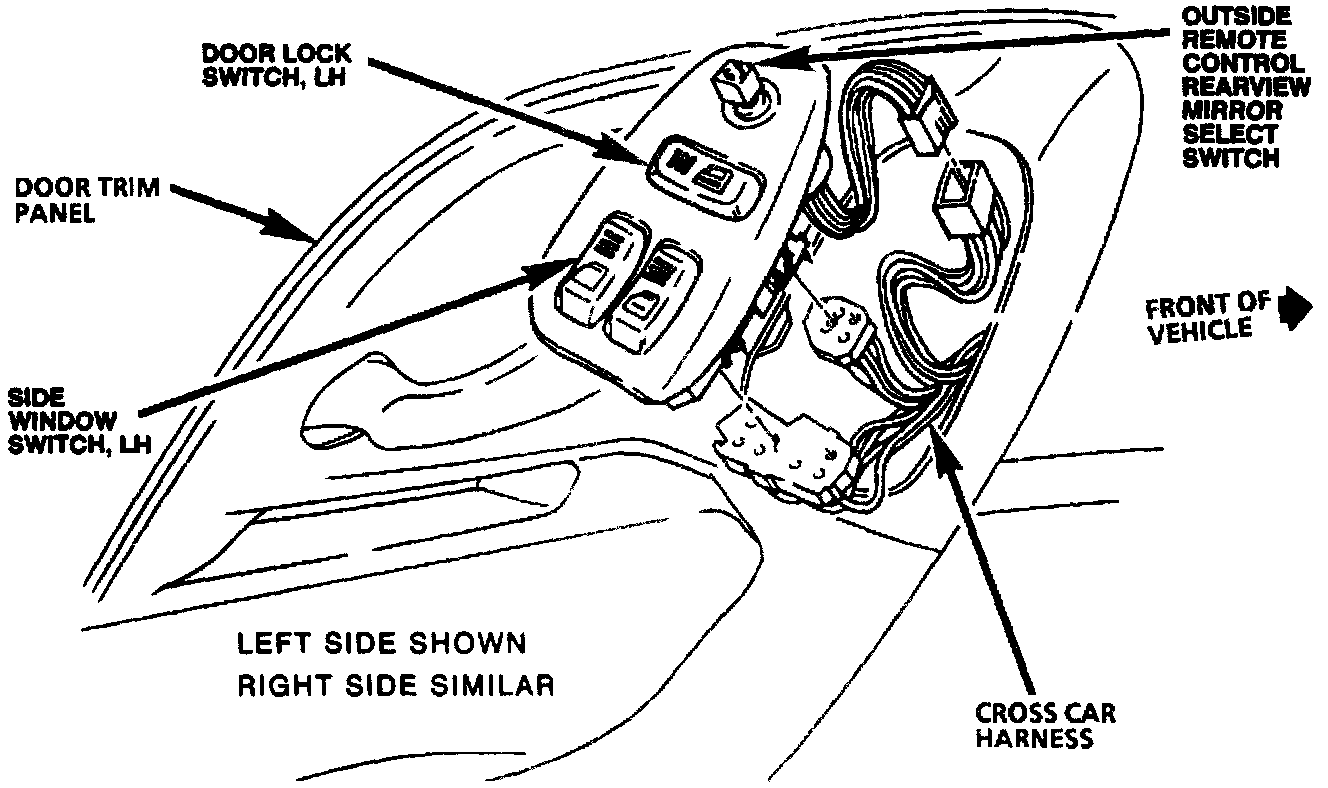

LH Door Armrest:

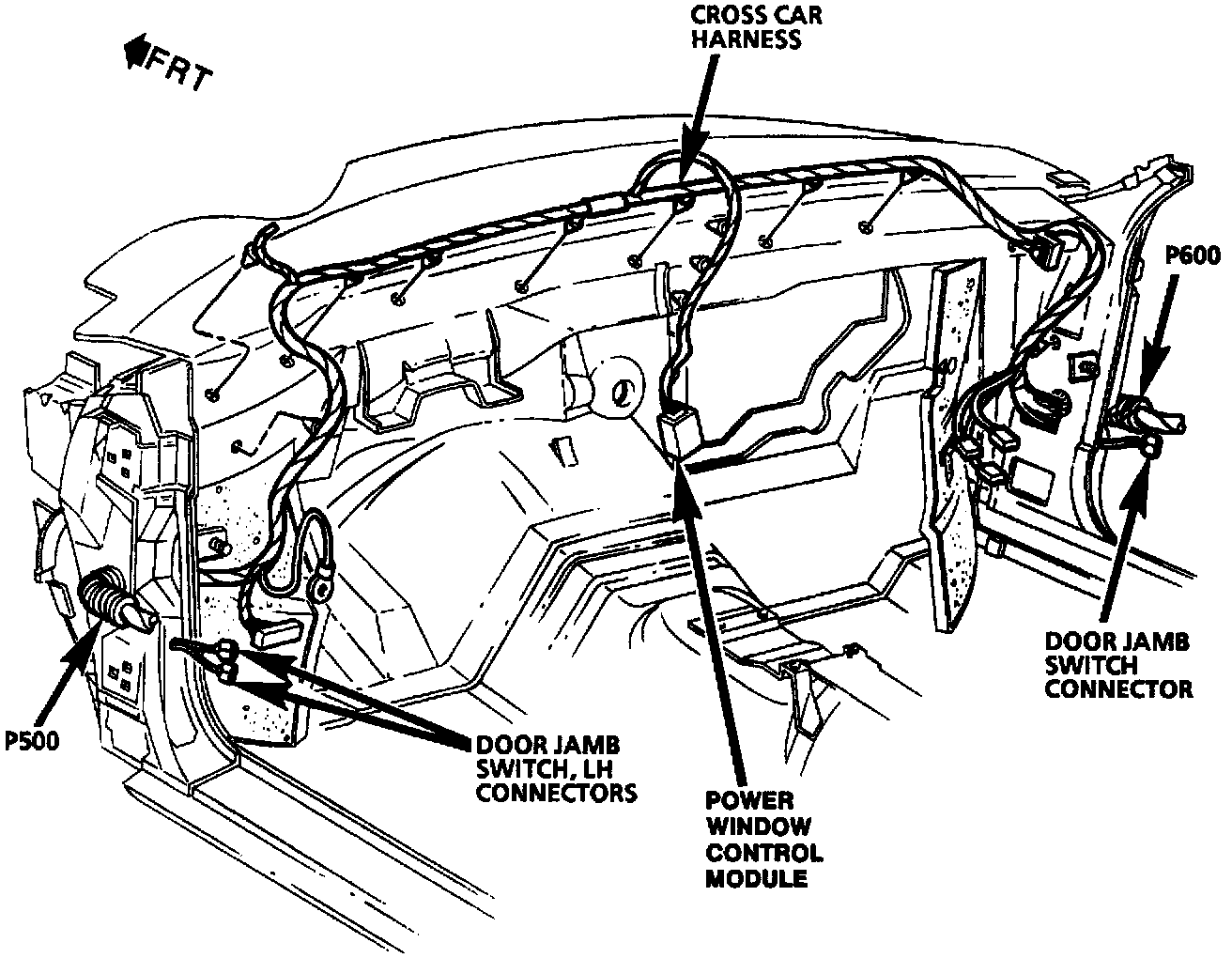

Between LH Kick Panel And Steering Column:

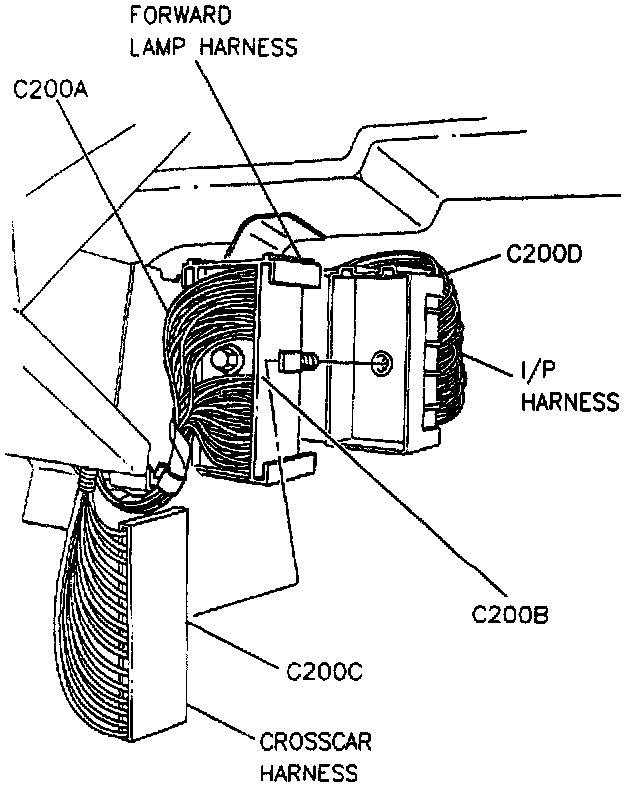

Dash Panel With Cross Car Harness:
