Home >> Chevrolet >> 1997 >> Camaro V6-3.8L VIN K >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Diagnostic Charts - Exterior Lights >> Chart 1 Turn Lights Do Not Operate

Chart 1 Turn Lights Do Not Operate

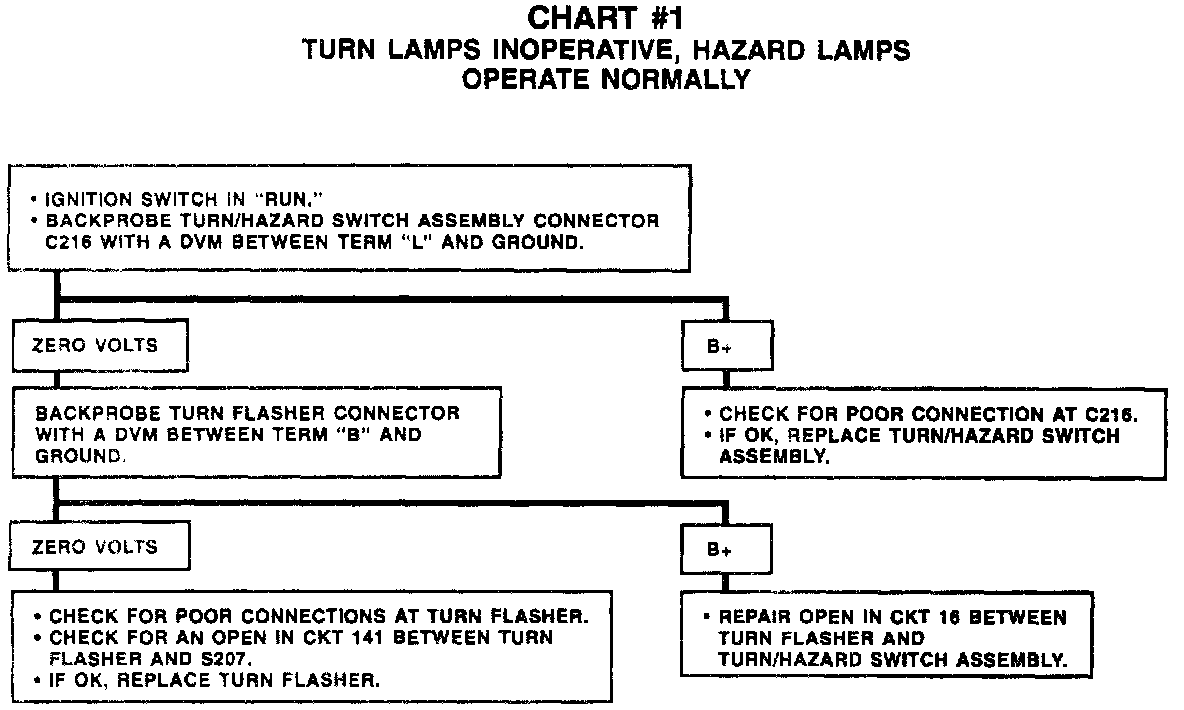

Chart #1 Turn Lamps Inoperative:
