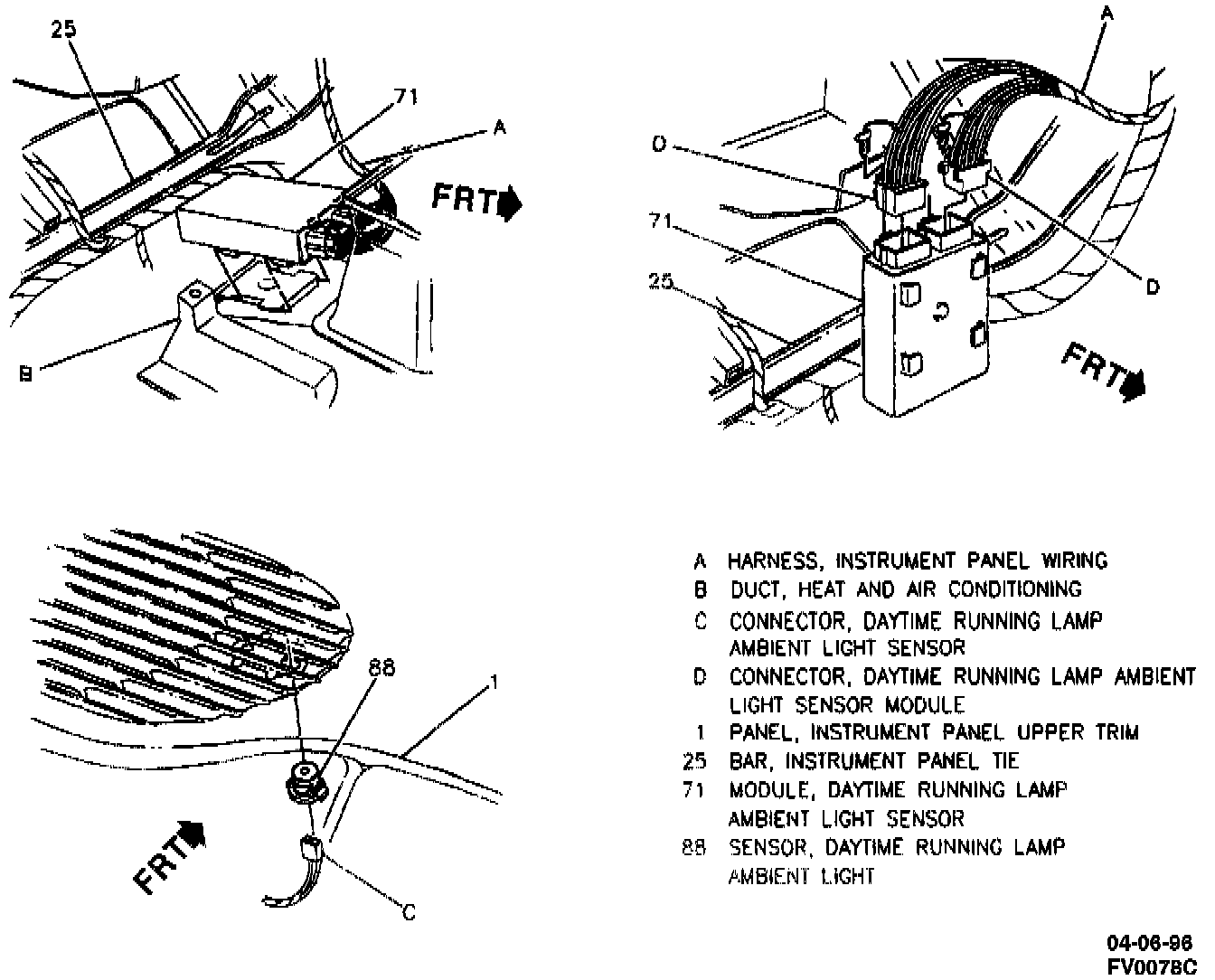

Daytime Running Lamp (DRL) Ambient Light Sensor

Remove or Disconnect
1. Windshield side upper garnish moldings.
2. Instrument panel upper trim panel (1).
3. DRL ambient light sensor (88) from instrument panel upper trim panel (1).
^ Twist counterclockwise.
4. Electrical connector from DRL ambient light sensor.

Install or Connect
1. DRL ambient light sensor (88) to electrical connector.
2. DRL ambient light sensor (88) to instrument panel upper trim panel (1).
^ Twist clockwise.
3. Instrument panel trim panel (1).
4. Windshield side upper garnish moldings.
