License Plate Lamp: Service and Repair

Remove or Disconnect

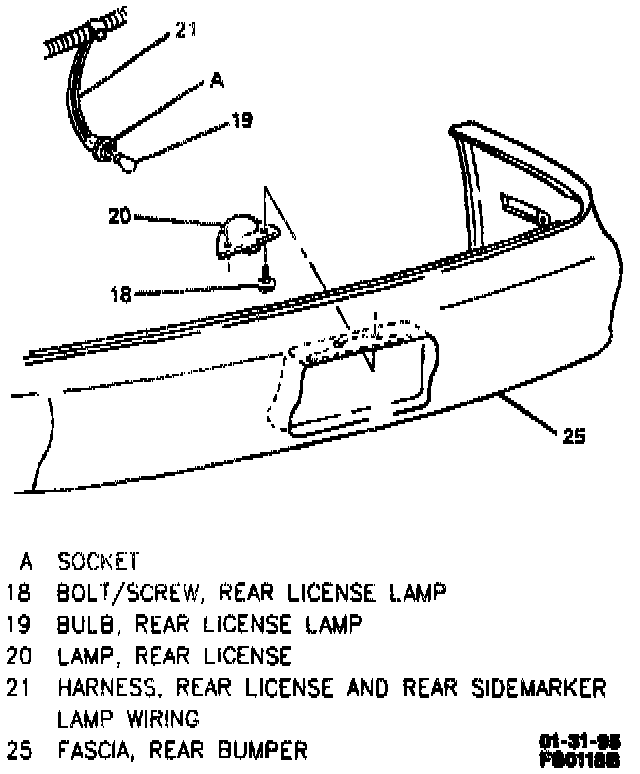

1. Rear license lamp bolts/screws (18) from rear license lamp (20).
2. Rear license lamp (20) from rear bumper fascia (25).
3. Rear license lamp bulb (19) and socket from rear license lamp (20).
4. Rear license lamp bulb (19) from socket.

Install or Connect

NOTICE: Refer to Service Precautions / Vehicle Damage Warnings / Fastener Requirements.

1. Rear license lamp bulb (19) to socket.
2. Rear license lamp bulb (19) and socket to rear license lamp (20).
3. Rear license lamp (20) to rear bumper fascia (25).
4. Rear license lamp bolts/screws (18) to rear license lamp (20).
Tighten
^ Bolts/screws (18) to 1.9 Nm (17 lb in).
