Home >> Chevrolet >> 1997 >> Camaro V6-3.8L VIN K >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Diagnostic Charts >> Chart 3 RH Headlamp Door Stays Open or Closed

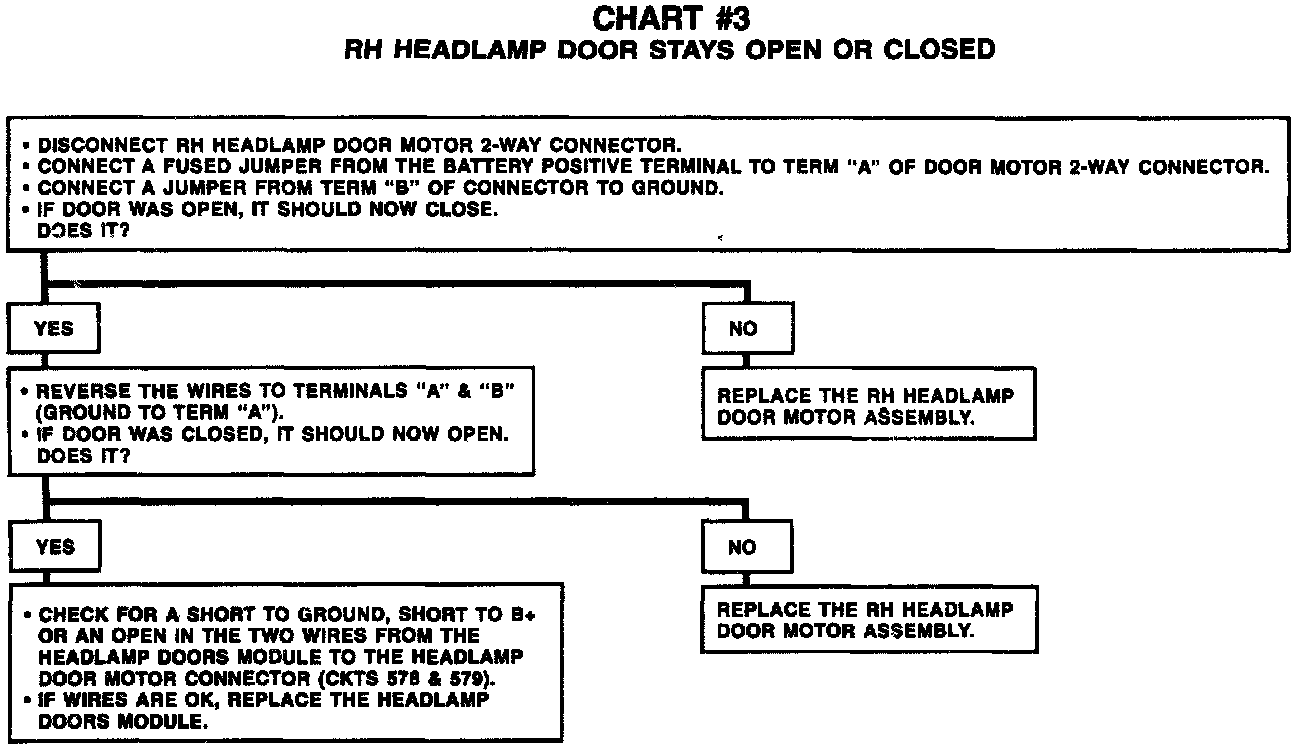

Chart 3 RH Headlamp Door Stays Open or Closed

Chart #3 RH Headlamp Door Stays Open Or Closed:
