Removal and Replacement

Remove or Disconnect
1. Open hood.

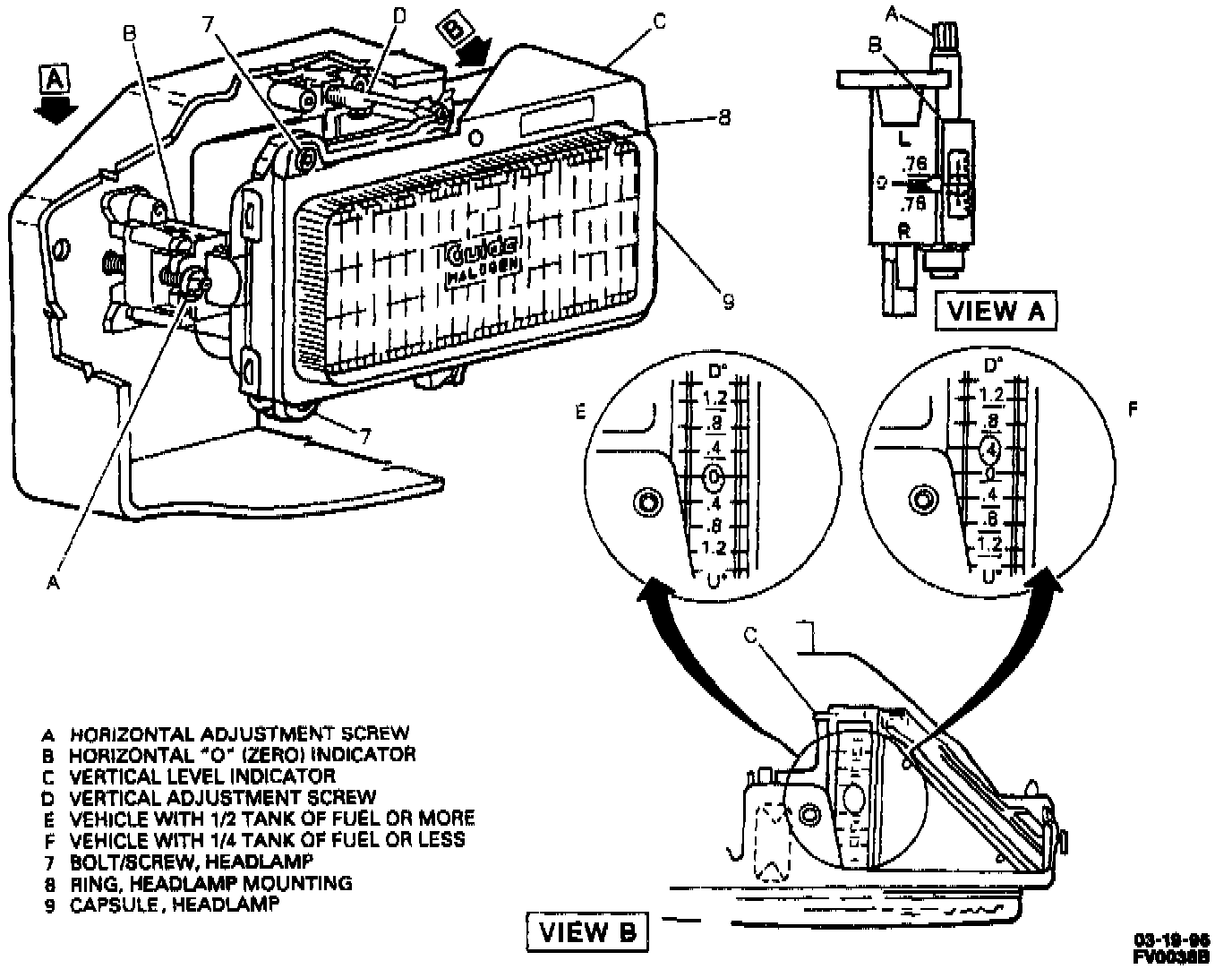

2. Headlamp bolts/screws (7)
3. Headlamp mounting ring (8).
4. Electrical connector from headlamp capsule.
5. Headlamp capsule (9) from vehicle.

Install or Connect

NOTICE: Refer to "Notice" on page 8B-1.
1. Headlamp capsule (9) to vehicle.
2. Electrical connector to headlamp capsule.
3. Headlamp mounting ring (8).
^ If replacing headlamp mounting ring (8),transfer undamaged vertical level indicator to new headlamp mounting ring (8).
4. Headlamp bolts/screws (7).
^ Tighten securely.
5. Close hood.
