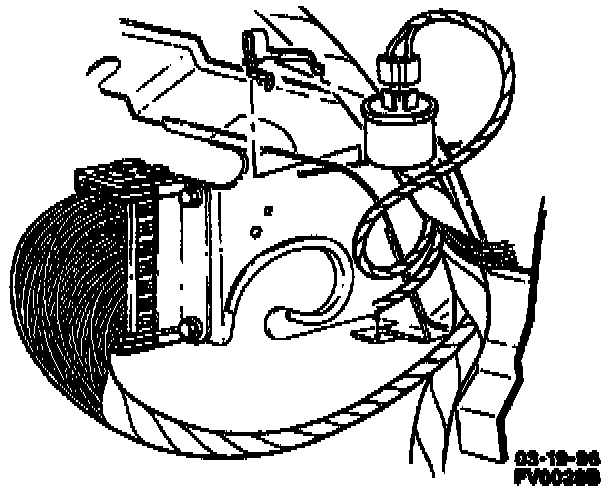

Hazard Warning Lamps: Service and Repair

Remove or Disconnect
1. Instrument panel driver knee bolster.
2. Hazard lamp flasher from clip.
3. Hazard lamp flasher from electrical connector.

Install or Connect
1. Hazard lamp flasher to electrical connector.
2. Hazard lamp flasher to clip.
3. Instrument panel driver knee bolster.
