Remove and Replace

Remove or Disconnect
1. Raise and suitably support vehicle.
2. Front bumper fascia lower deflector.

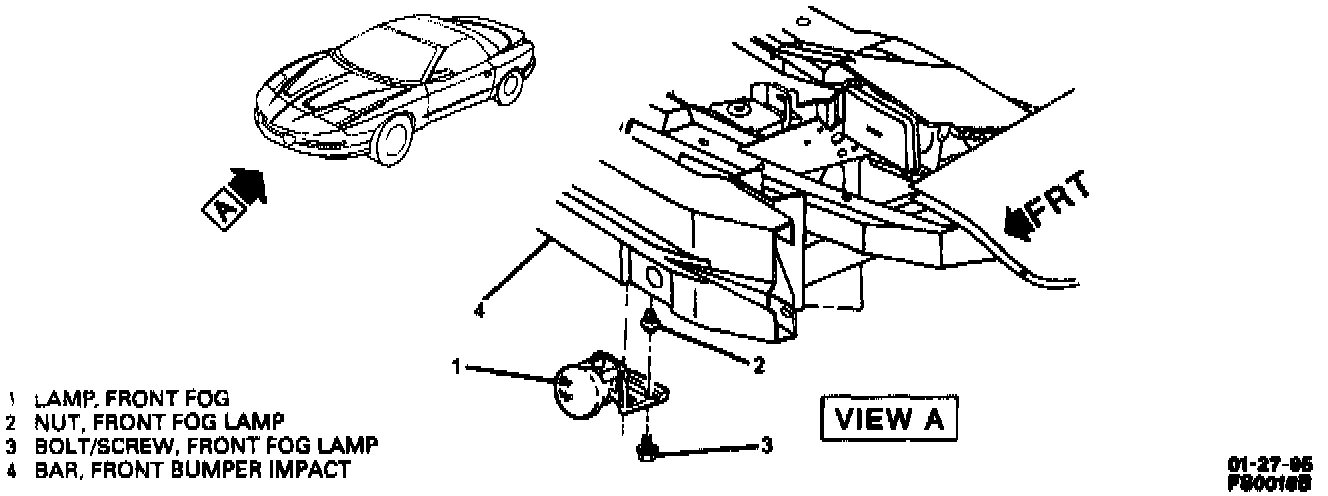

3. Bolts/screws (3) attaching front fog lamp (1) to front bumper impact bar (4).
4. Front fog lamp (1) from front bumper impact bar (4).
5. Nuts (2) from front bumper impact bar (4), if necessary.

Install or Connect

NOTICE: Refer to Service Precautions / Vehicle Damage Warnings / Fastener Requirements.

1. Nuts (2) to front bumper impact bar (4), if removed.
Tighten
^ Nuts (2) to 10 Nm (89 lb in).
2. Front fog lamp (1) to front bumper impact bar (4).
3. Bolts/screws (3) attaching front fog lamp (1) to front bumper impact bar (4).
Tighten
^ Bolts/screws (3) to 15 Nm (11 lb ft).
4. Front bumper fascia lower deflector.
5. Lower vehicle.
