Dome Lamp: Service and Repair

Remove or Disconnect

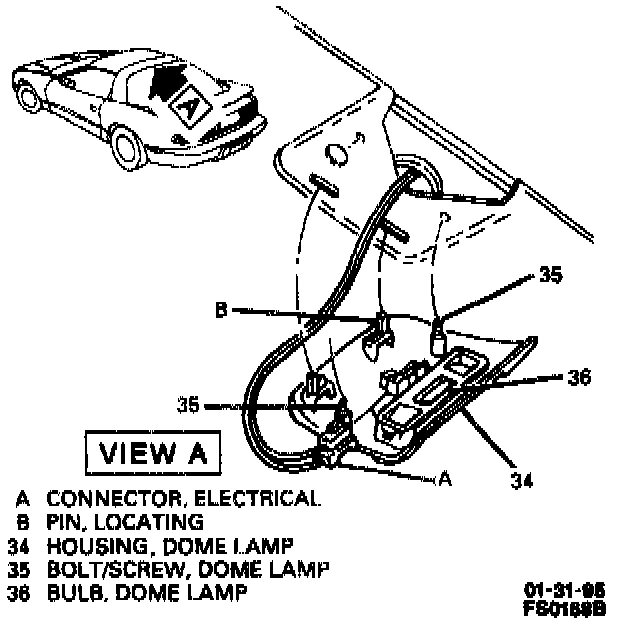

1. Dome lamp bolts/screws (35).
^ Loosen enough to pull dome lamp housing (34) from headlining trim finish panel.
2. Dome lamp housing (34) by pulling from headlining trim finish panel.
3. Electrical connector from dome lamp.
4. Dome lamp bulb (36) from dome lamp housing (34).

Install or Connect

NOTICE: Refer to Service Precautions / Vehicle Damage Warnings / Fastener Requirements.

1. Dome lamp bulb (36) to dome lamp housing (34).
2. Electrical connector to dome lamp.
3. Dome ]amp housing (34).
^ use locating pins to position dome lamp housing (34) to headlining trim finish panel.
4. Dome lamp bolts/screws (35).
Tighten
^ Bolts/screws (35) to 1.7 Nm (15 lb in).
