Instrument Panel Cluster Trim Plate Replacement

Remove or Disconnect
1. Disable the SIR system. Refer to Disabling The SIR System.
2. Instrument panel insulator.
3. Drive knee bolster.
4. Lower the steering column.
5. Instrument panel cluster trim plate bolts/screws (6).

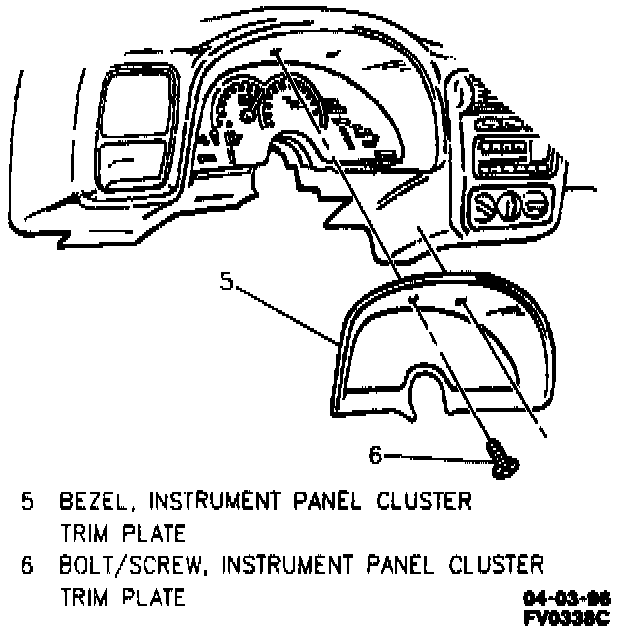

6. Unsnap the instrument panel cluster trim plate bezel (5)

Install or Connect

NOTICE: Refer to Service Precautions / Vehicle Damage Warnings / Fastener Requirements.

1. Instrument panel cluster trim plate bezel (5).
2. Instrument panel cluster trim plate bolts/ screws (6).
Tighten
^ Instrument panel cluster trim plate bolts/screws (6) to 1.9 Nm (17 lb in).
3. Lower the steering column.
4. Drive knee bolster.
5. Instrument panel insulator.
6. Enable the SIR system. "Refer to Enabling The SIR System.
