Pinout Description

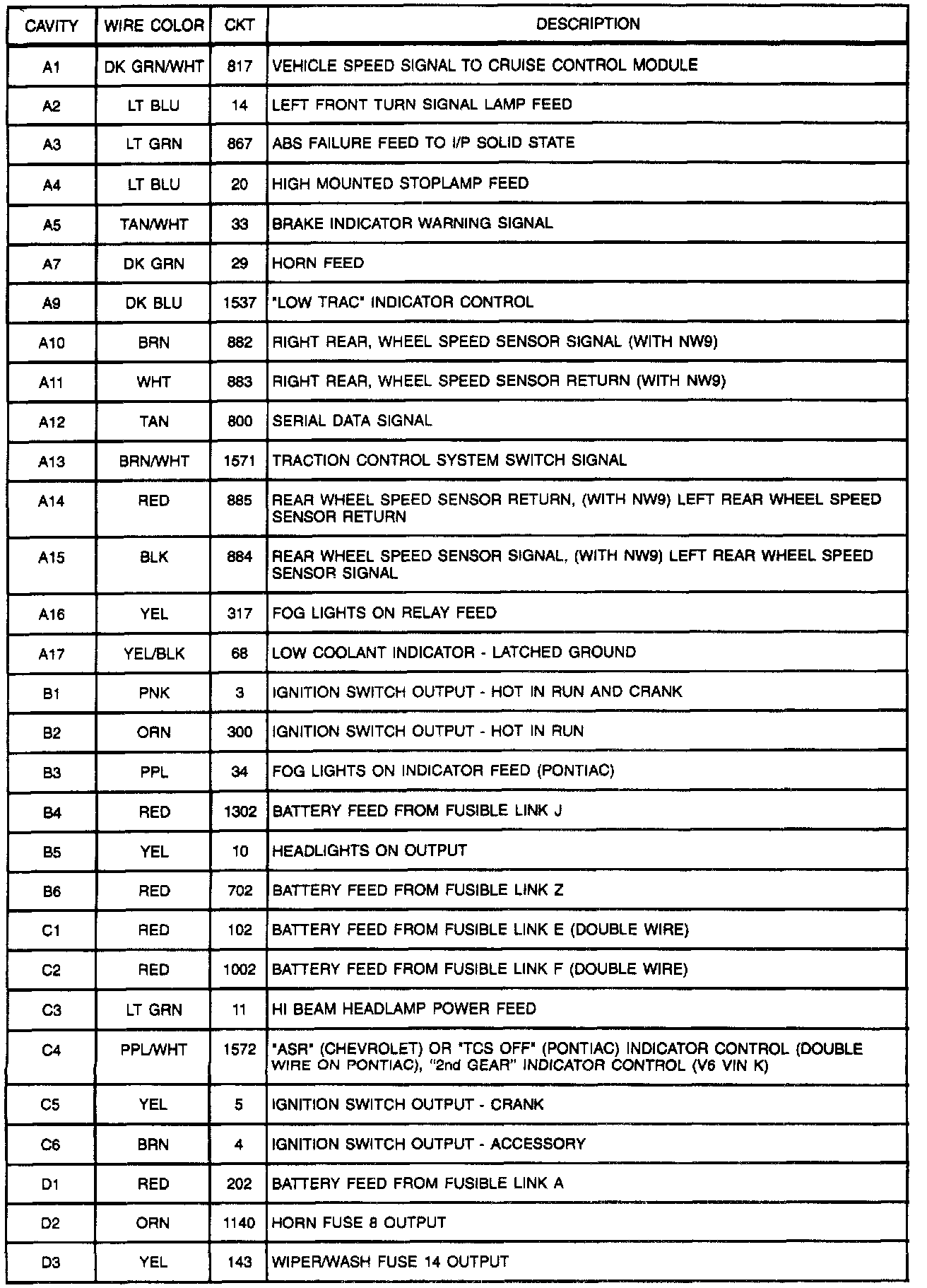

C200A, C200B, C200C, C200D (Part 1 Of 2):

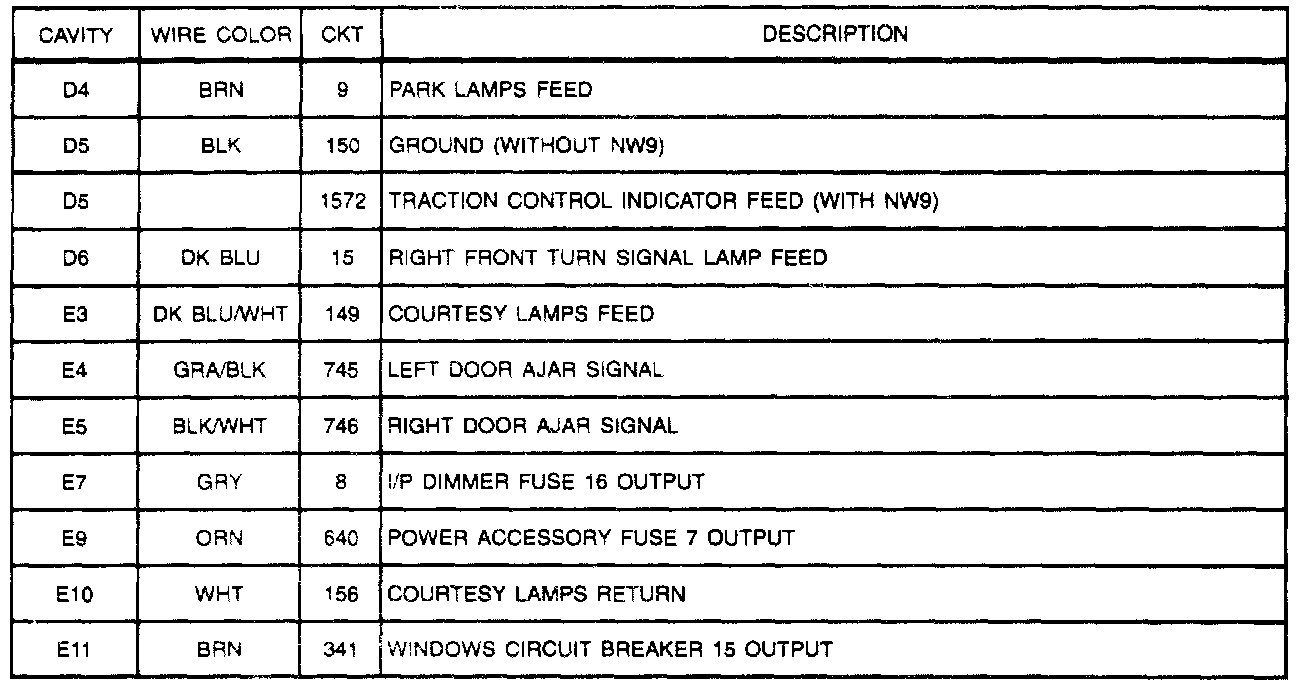

C200A, C200B, C200C, C200D (Part 2 Of 2):
