Temperature Control Effort

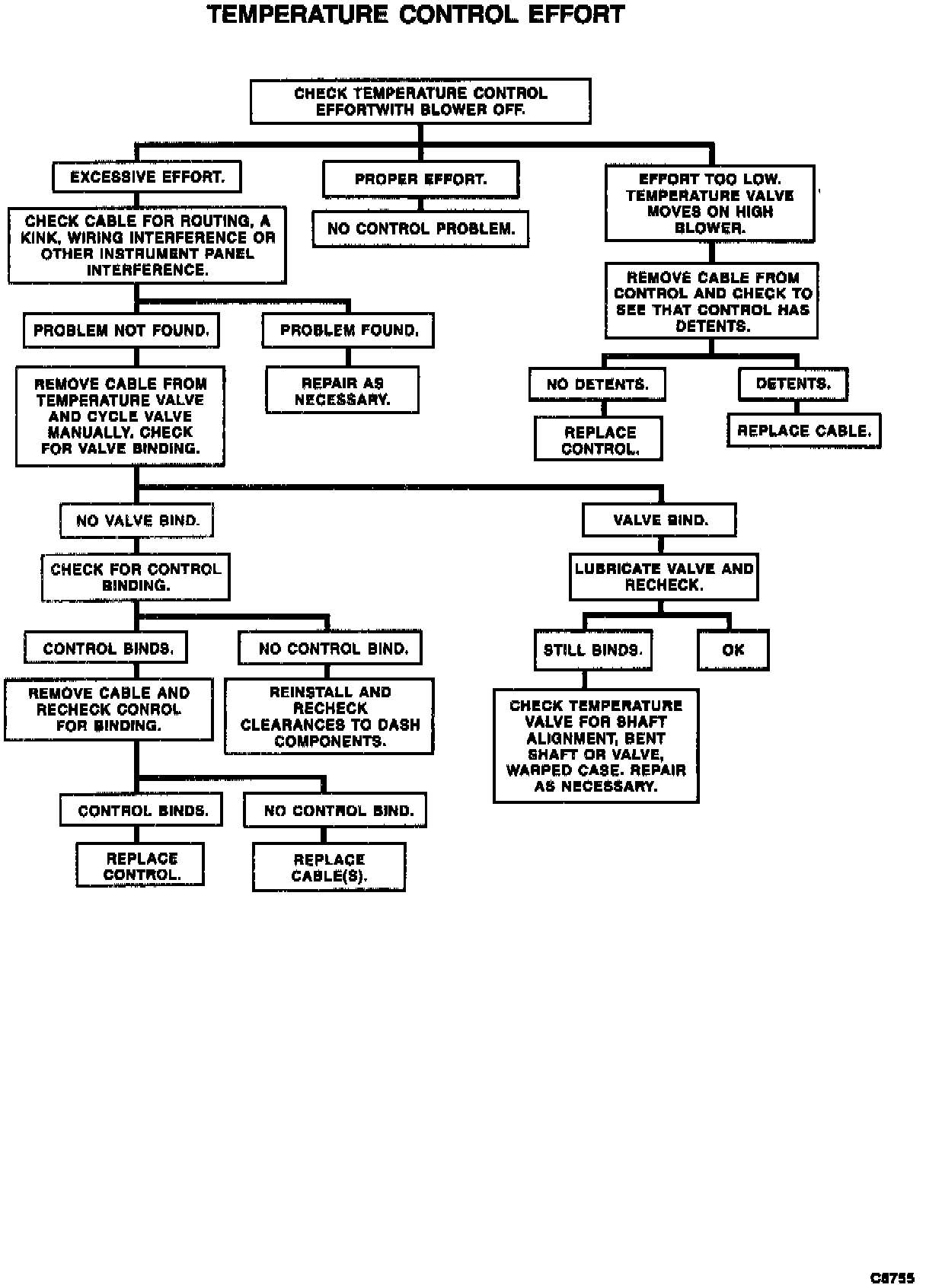

A kinked control cable, a binding valve or a faulty control are possible causes of excessive temperature control knob effort. For an organized diagnosis procedure, refer to Figure.
