Windshield Defroster Nozzle and Air Distributor






Remove or Disconnect

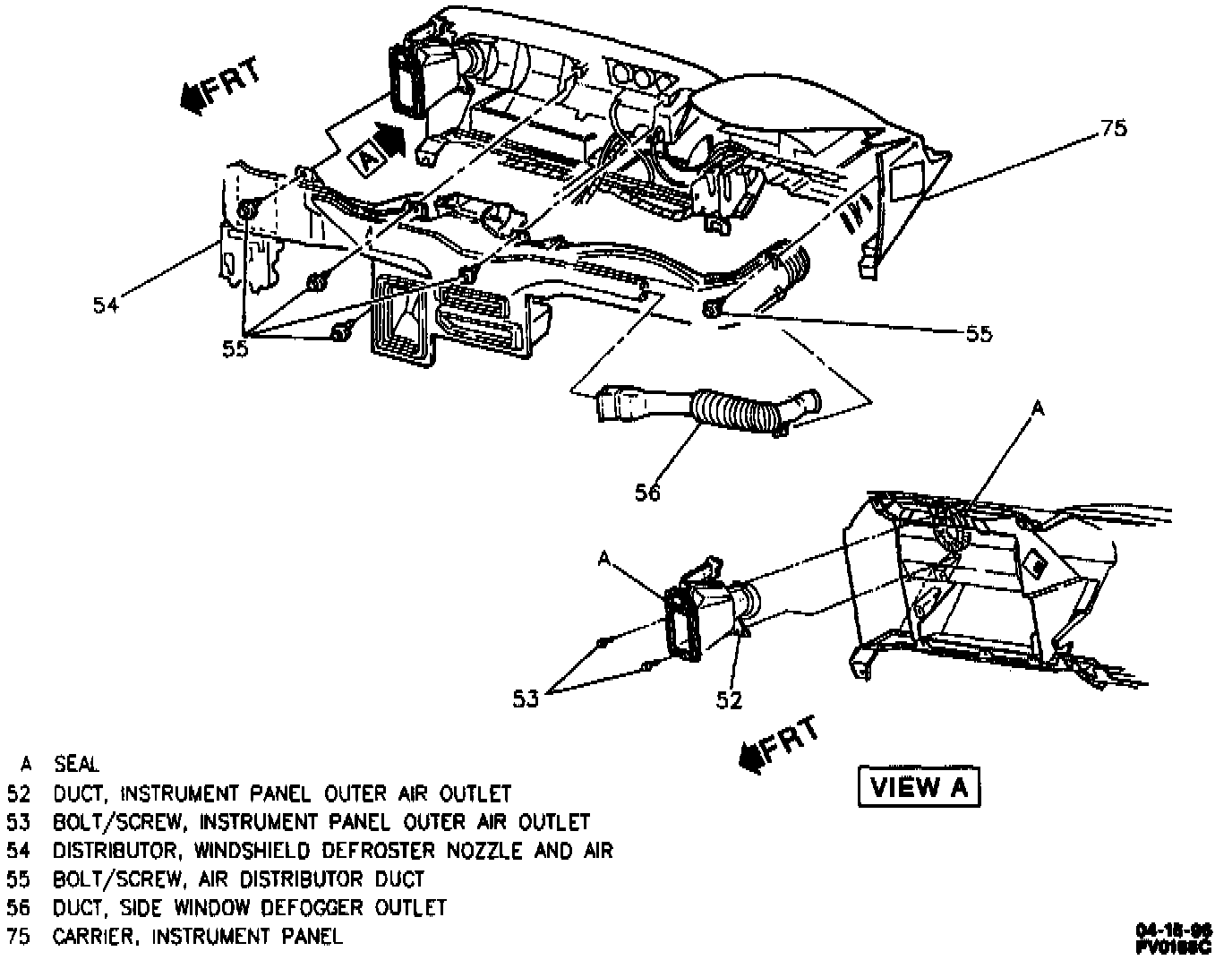

1. Instrument panel carrier (75).
2. Air distributor duct bolts/screws (55).
3. Distributor (54) from instrument panel carrier (75).

Install or Connect

NOTICE: Refer to Service Precautions / Vehicle Damage Warnings / Fastener Requirements.

1. Distributor (54) to instrument panel carrier (75).
^ Route heater control cable and vacuum wiring harness over reinforcement in instrument panel carrier (75).
^ Align cable and wires with depression in distributor (54).
2. Air distributor duct bolts/screws (55).
Tighten
^ Air distributor duct bolts/screws (55) to 2.2 Nm (19 lb in).
3. Instrument panel carrier (75).
