Exhaust System: Service and Repair

REMOVAL

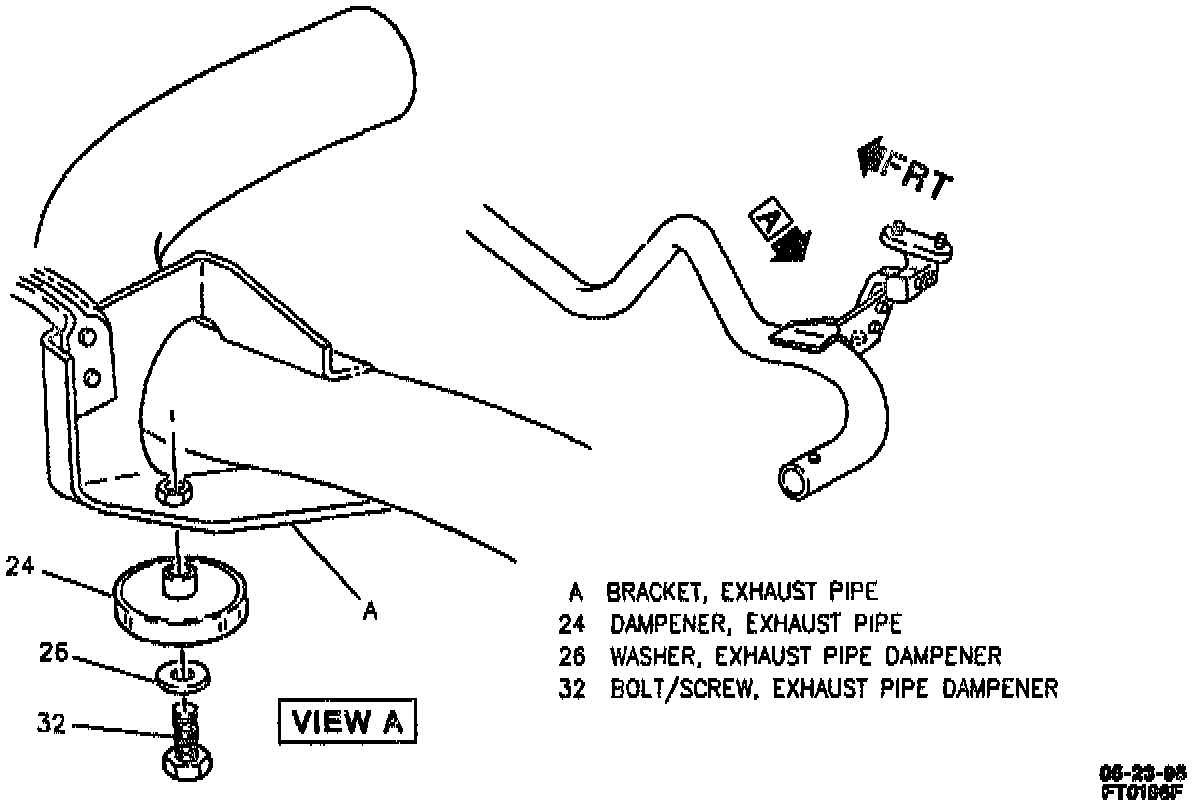

1. Bolt/screw (32), washer (26), and dampener (24) from exhaust bracket.

INSTALLATION
1. Dampener (24), washer (26), and bolt/screw (32) to exhaust bracket. Tighten bolt/screw (32) to 50 Nm (37 ft. lbs.).
