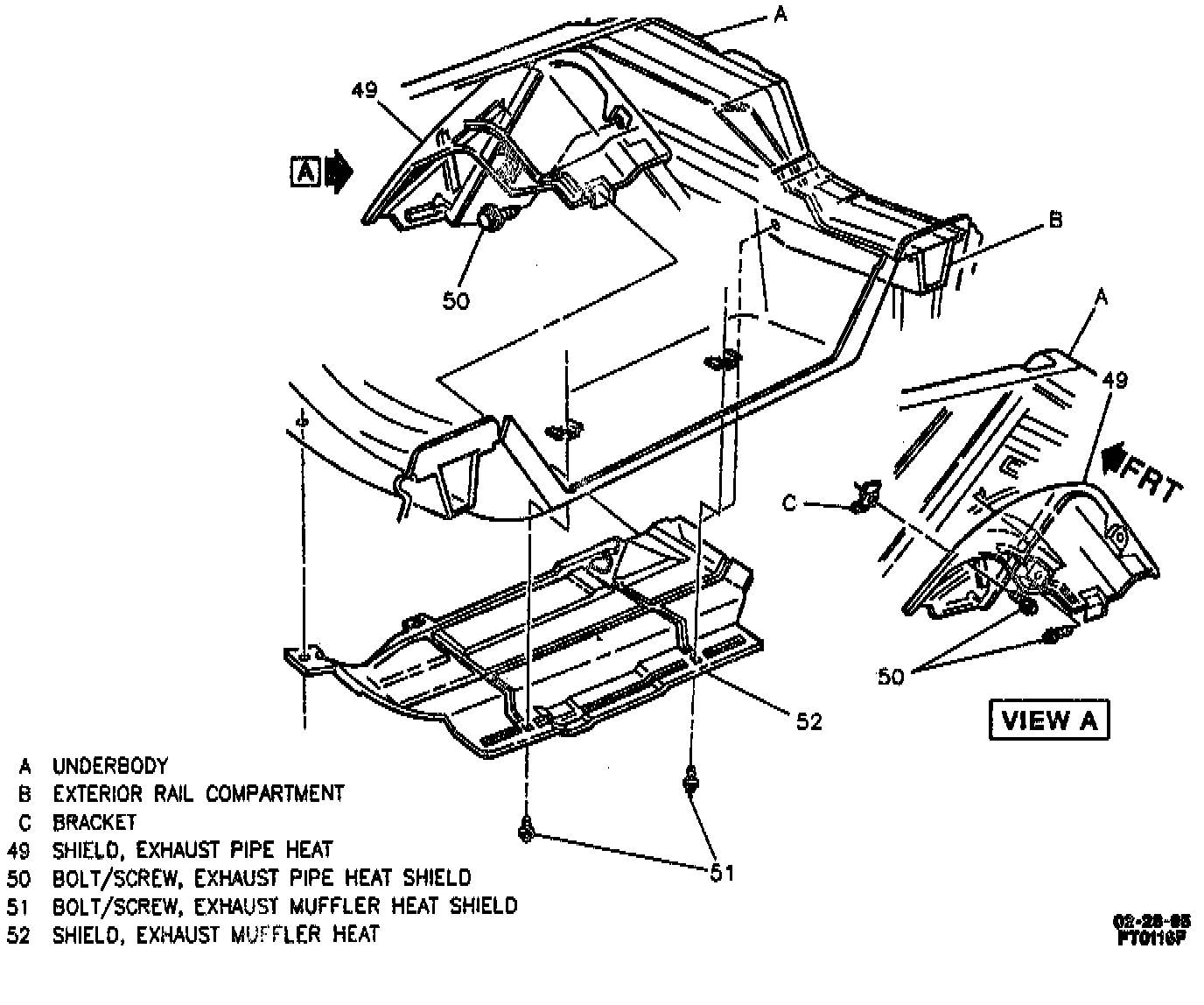

Exhaust Pipe Heat Shield and Exhaust Muffler Heat Shield

REMOVAL
1. Exhaust muffler.
2. Exhaust pipe.
3. Exhaust pipe heat shield bolts/screws (50).
4. Exhaust pipe heat shield (49).
5. Exhaust muffler heat shield bolts/screws (51).
6. Exhaust muffler heat shield (52).

INSTALLATION
1. Exhaust muffler heat shield (52).
2. Exhaust muffler heat shield bolts/screws (51). Tighten exhaust muffler heat shield bolts/screws (51) to 2.0 Nm (18 inch lbs.).
3. Exhaust pipe heat shield (49).
4. Exhaust pipe heat shield bolts/screws (5O). Tighten exhaust pipe heat shield bolts/screws (5O) to 2.0 Nm (18 inch lbs.).
5. Exhaust pipe.
6. Exhaust muffler.
