With RPO Y87

W/ RPO Y87:

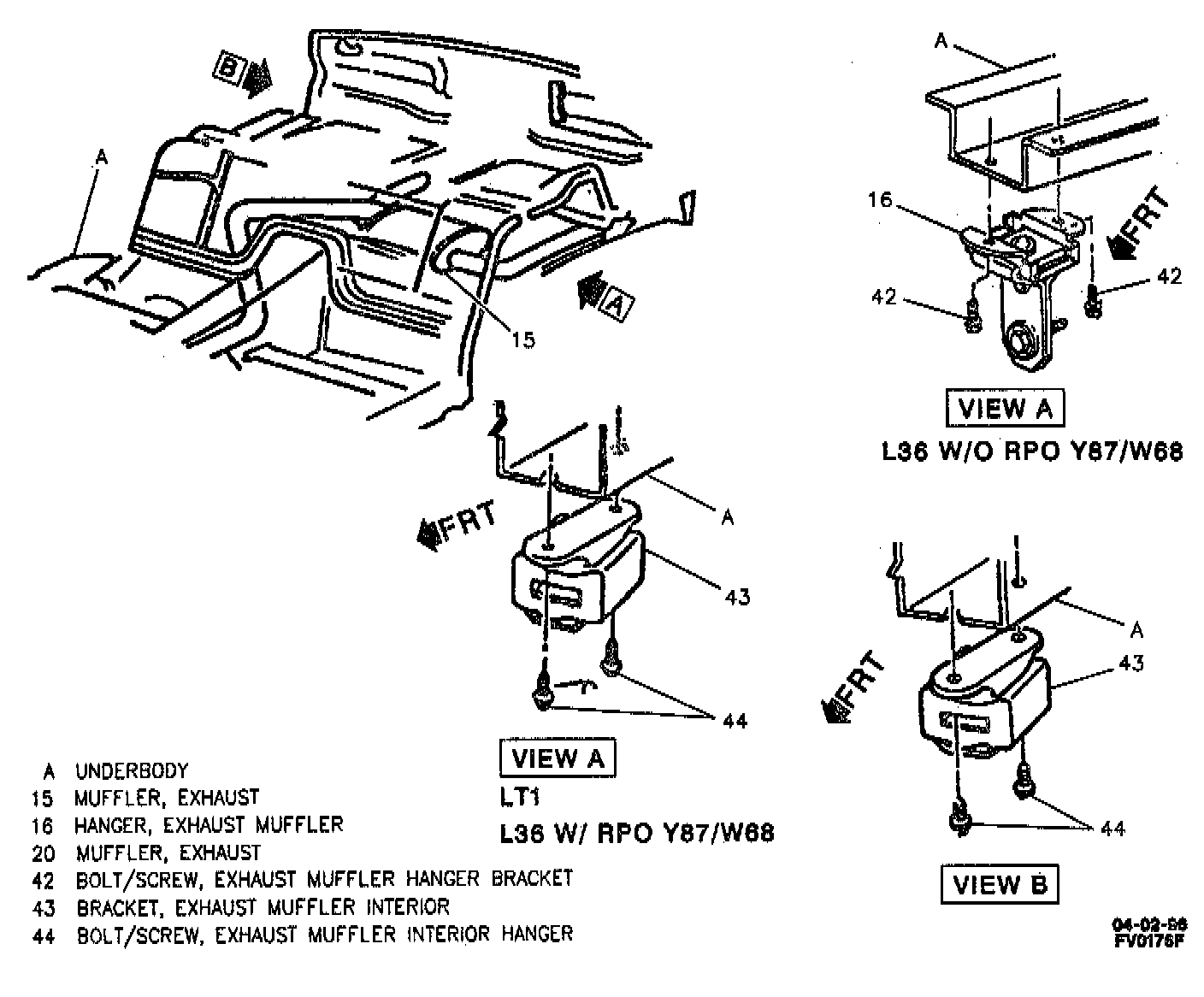

REMOVAL
1. Raise and suitably support vehicle.
2. Support exhaust muffler (15).
3. Exhaust muffler hanger nut (13).
4. Exhaust muffler hanger (16).
5. Exhaust muffler hanger bracket bolts/screws (44).
6. Exhaust muffler hanger (43).

INSTALLATION
1. Exhaust muffler hanger (43) to underbody.
2. Exhaust muffler hanger bracket bolts/screws (44). Tighten exhaust muffler hanger bracket bolts/screws (44) to 9.5 Nm (84 inch lbs.).
3. Exhaust muffler hanger (16).
4. Exhaust muffler hanger nut (13). Tighten exhaust muffler hanger nut (13) to 20 Nm (15 ft. lbs.).
5. Remove support from exhaust muffler (15).
6. Lower vehicle.
