Catalytic Converter Hanger

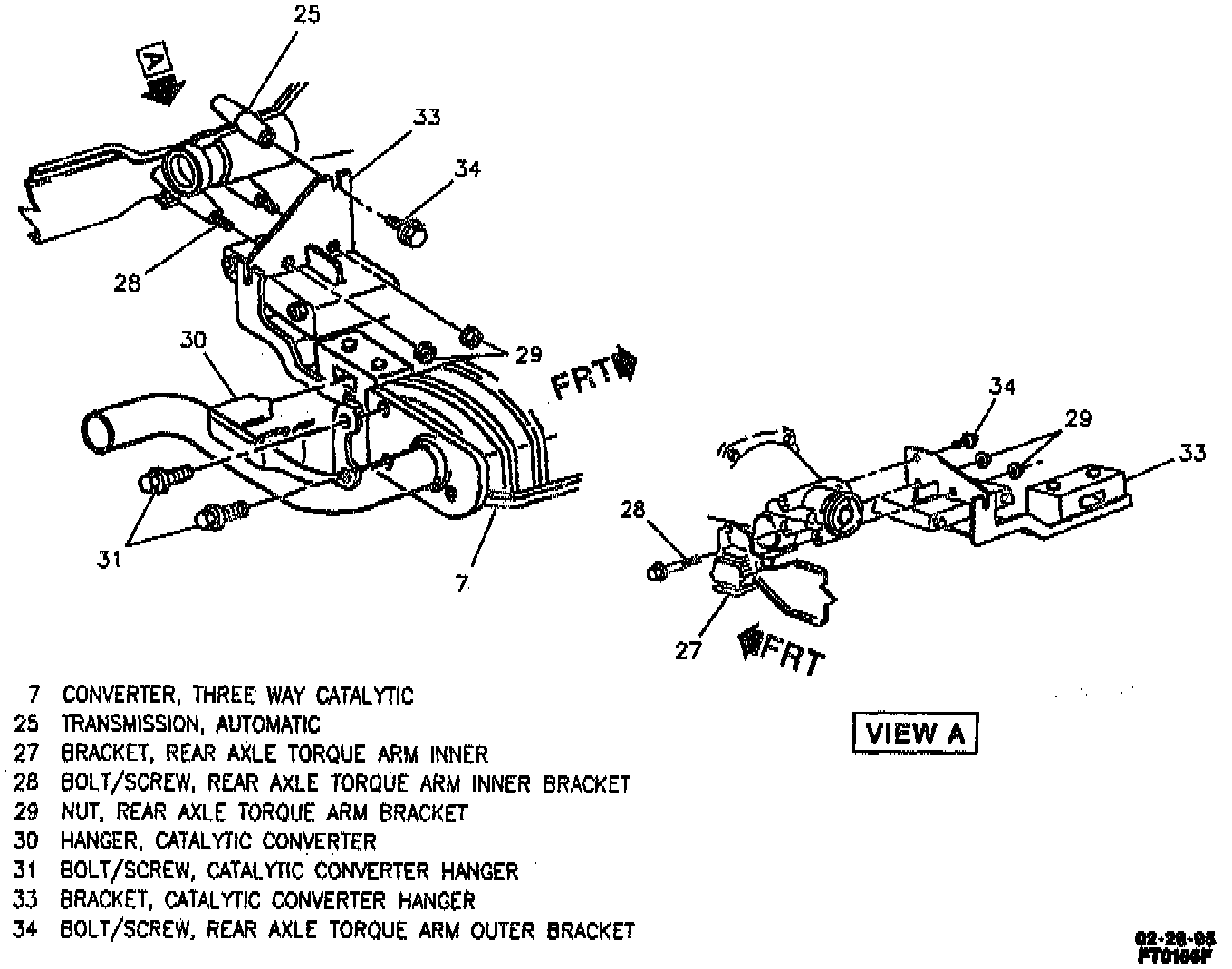

Automatic Transmission:

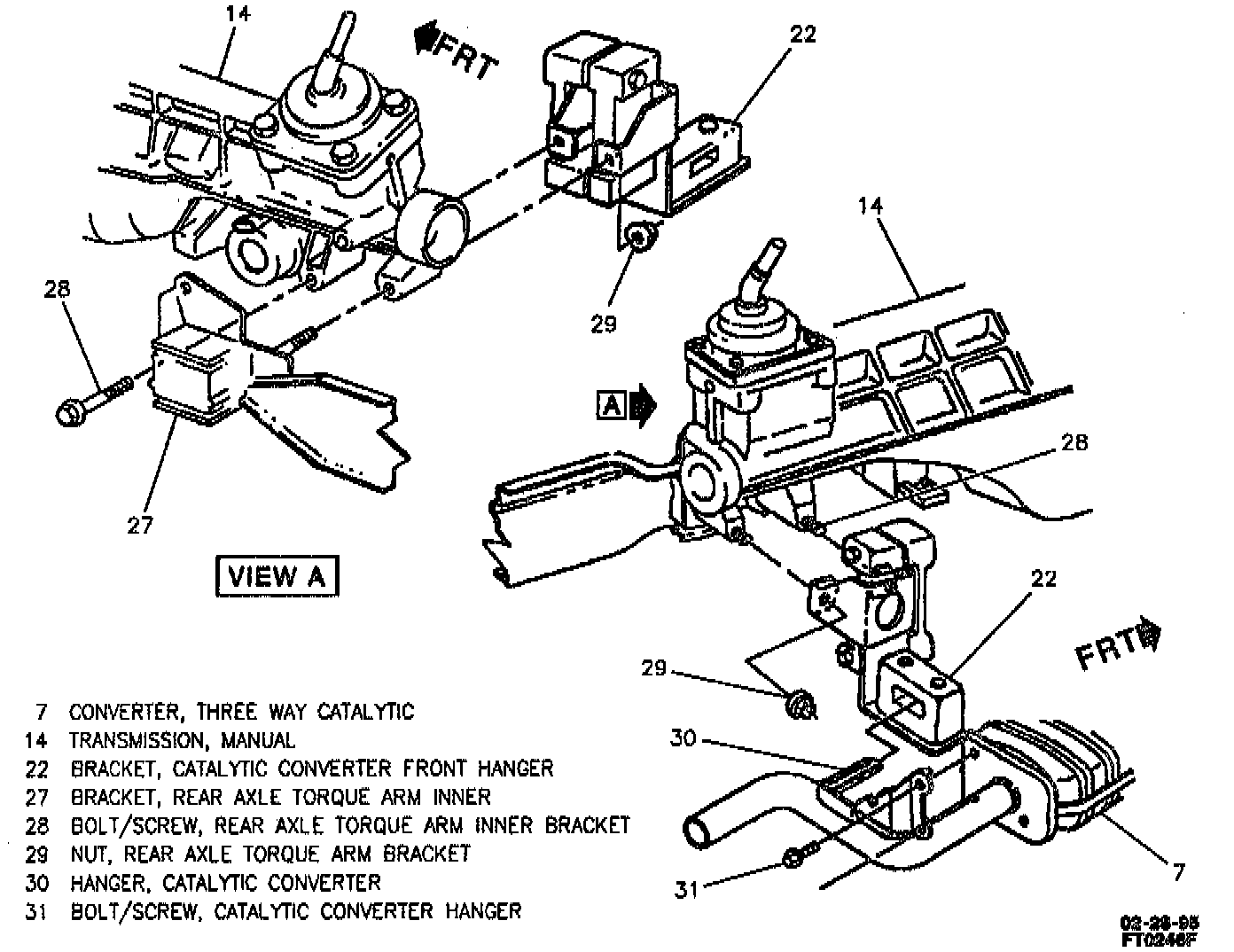

Manual Transmission:

INSTALLATION
1. Catalytic converter hanger (30) to catalytic converter hanger bracket (22 or 33).
2. Catalytic converter hanger bracket (22 or 33) with catalytic converter hanger (30) to rear axle torque arm inner bracket (27).
3. Rear axle torque arm bracket nuts (29) to rear axle torque arm inner bracket bolts/screws (28). Tighten rear axle torque arm bracket nuts (29) to 45 Nm (33 ft. lbs.).
4. Rear axle torque arm outer bracket bolt/screw (34). Automatic only. Tighten rear axle torque arm outer bracket bolt/screw (34) to 27 Nm (20 ft. lbs.).
5. Catalytic converter hanger bolts/screws (31). Tighten catalytic converter hanger bolts/screws (31) to 41 Nm (30 ft. lbs.).
6. Remove support from catalytic converter (7).
7. Lower vehicle.
