Drive Belt Replacement

REMOVAL
1. Disconnect the negative battery cable.
2. Relieve drive belt tension. Use a socket with a handle on the tensioner pulley bolt in order to push the tensioner downward.
3. Remove the drive belt.

INSTALLATION
1. Relieve drive belt tension. Use a socket with a handle on the tensioner pulley bolt in order to push the tensioner downward.

NOTE: Ensure that the drive belt is aligned into the proper groove of each pulley.

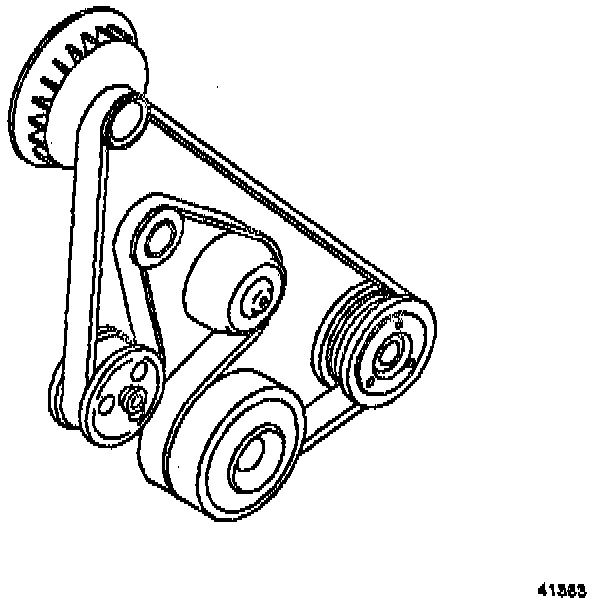

2. Install the drive belt.
3. Connect the negative battery cable.
