Intake Manifold Torque & Sequence

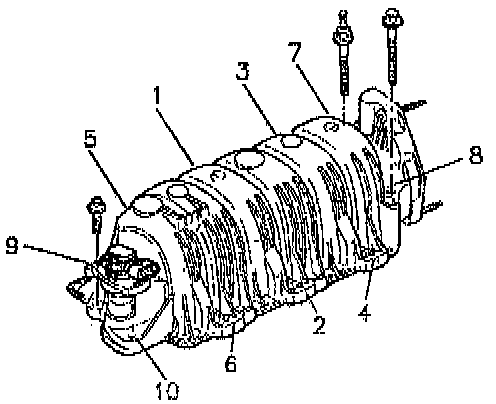

UPPER
Tighten the bolts in sequence to 10 Nm (89 In. lbs.).


Intake Manifold Bolt Tightening Sequence:

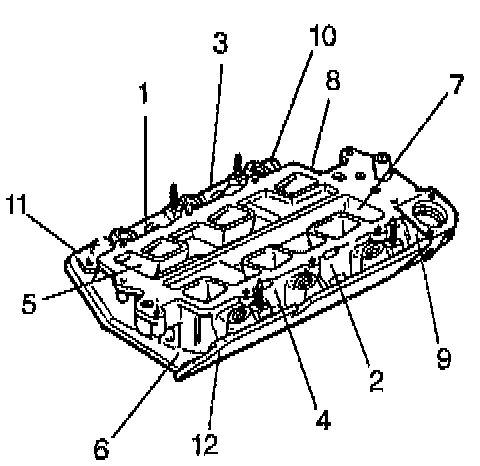

LOWER
Tighten the bolts in sequence to 15 Nm (11 ft. lbs.).
