Coolant Reservoir: Service and Repair

REMOVAL
1. Battery. See Starting and Charging.
2. Coolant recovery hose.

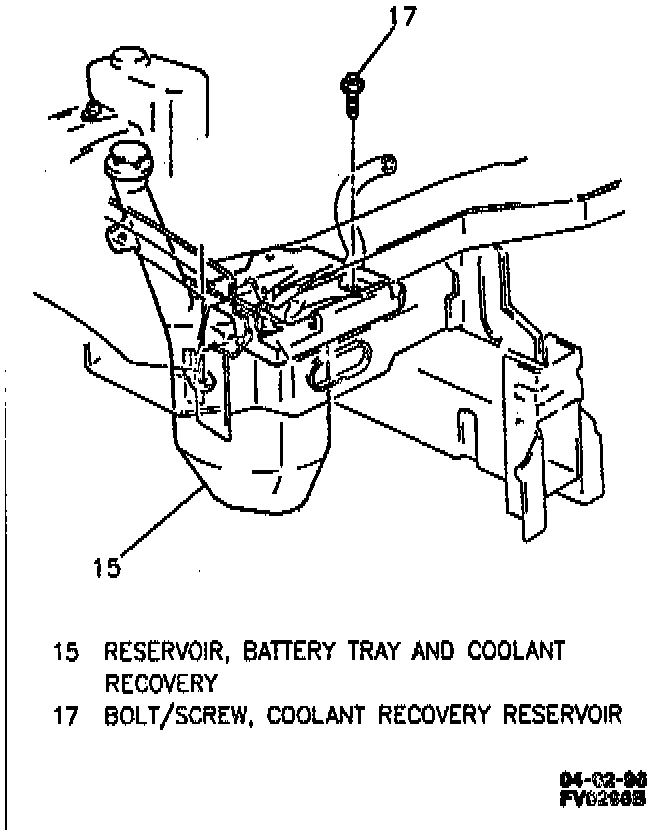

3. Coolant recovery reservoir bolt/screw (17).
4. Battery tray and coolant recovery reservoir (15). Clean battery tray and coolant recovery reservoir (15) with soap and water. Rinse thoroughly.

INSTALLATION
1. Battery tray and coolant recovery reservoir (15).
2. Recovery reservoir bolt/screw (17). Tighten coolant recovery reservoir bolt/screw (17) to 12 Nm (106 inch lbs.).
3. Coolant recovery hose.
4. Battery. See Starting and Charging.
5. Add engine coolant to "FULL COLD" mark on reservoir.
