Home >> Chevrolet >> 1997 >> Camaro V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Brake Caliper >> Front

Front

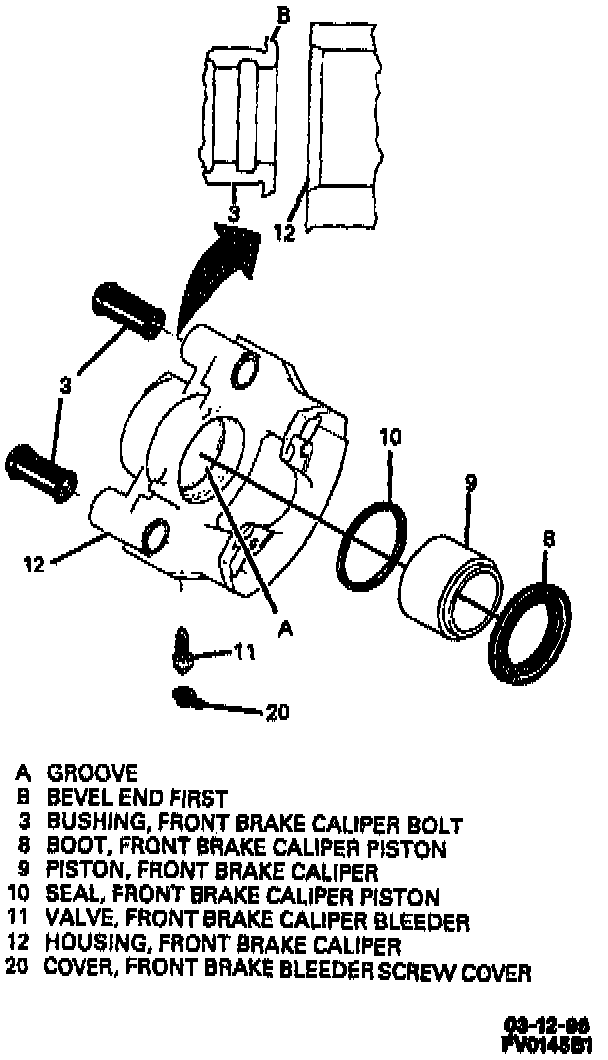

Front Brake Caliper Components:
