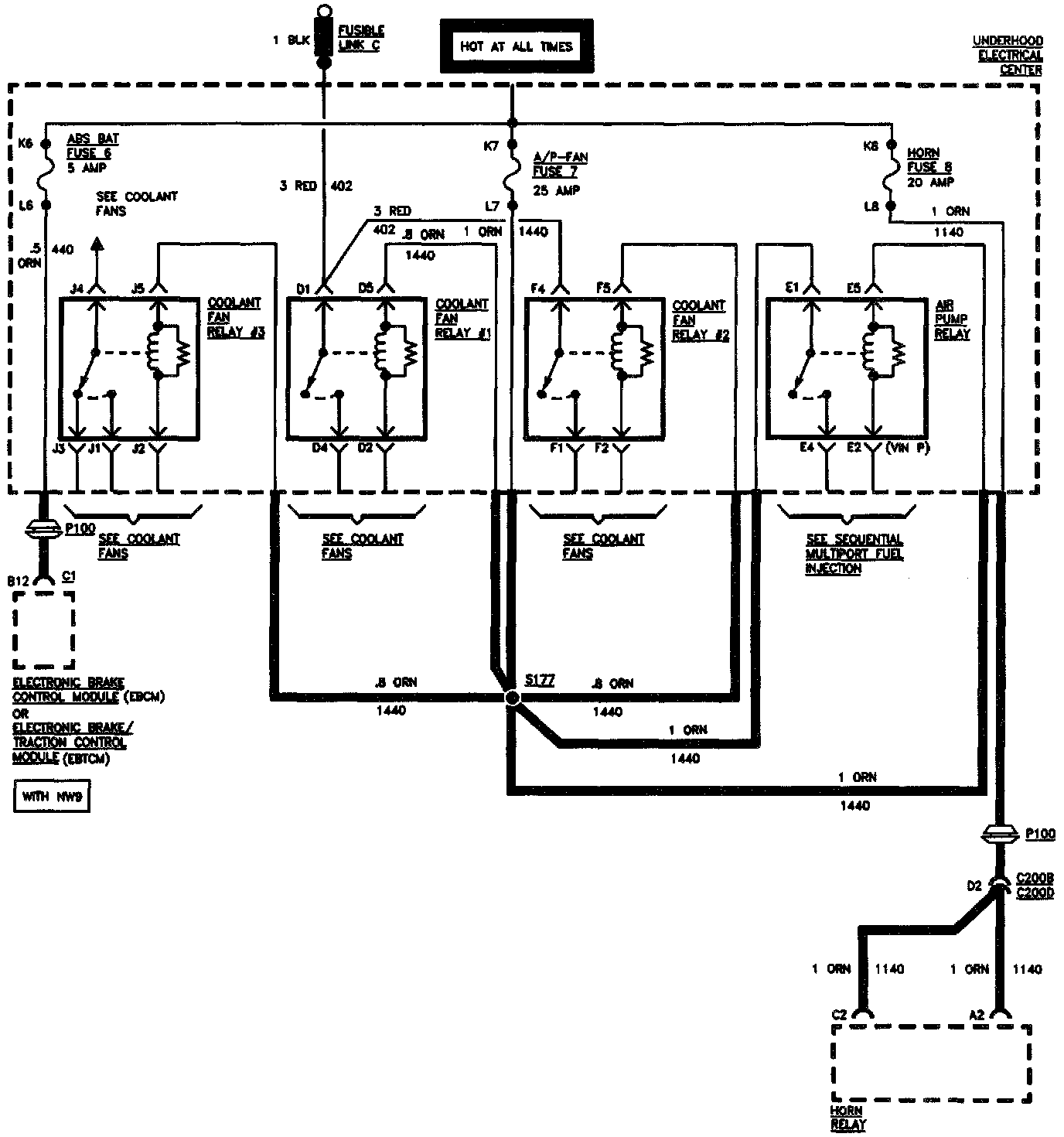

Underhood Fuses 6, 7, 8, Coolant Fan Relays and Air Pump Relay
Underhood Fuses 6, 7, 8, Coolant Fan Relays and Air Pump Relay
Underhood Fuses 6,7,8, Coolant Fan Relays And Air Pump Relay:
